Removal and Installation

CAUTION: The antenna lead-in cable is not removable from the wiring harness. If a new lead-in cable is being installed, leave it in the wiring harness. Install a new cable on top of the instrument panel wiring harness and secure with wire ties. Do not cut into the wiring harness to remove the existing antenna lead-in cable. Tie back or insulate the old cable ends to keep them from causing noise.

Remove the antenna base. For additional information, refer to ANTENNA BASE .
Remove both A-pillar trim panels. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .

NOTE: LH shown, RH similar.

Fig 1: Removing Screws And Sun Visors

Courtesy of FORD MOTOR CO.

Remove the screws and the sun visors.

NOTE: LH shown, RH similar.

Fig 2: Removing Sun Visor Catch Clips

Courtesy of FORD MOTOR CO.

Remove the sun visor catch clips.
1. Open the tabs.
2. Remove the screws.
Remove the overhead console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Open the covers on the passenger assist handles.

Fig 3: Opening Covers Of Passenger Assist Handles
Courtesy of FORD MOTOR CO.
Using a suitable 6 mm flat-bladed screwdriver, remove the passenger assist handles.
- Rotate the screwdriver 90 degrees to release the retaining clips.
Fig 4: Using Suitable 6 mm Flat-Bladed Screwdriver Removing Passenger Assist Handles
Courtesy of FORD MOTOR CO.
Carefully lower the front edge of the headliner to allow access to the antenna cable.

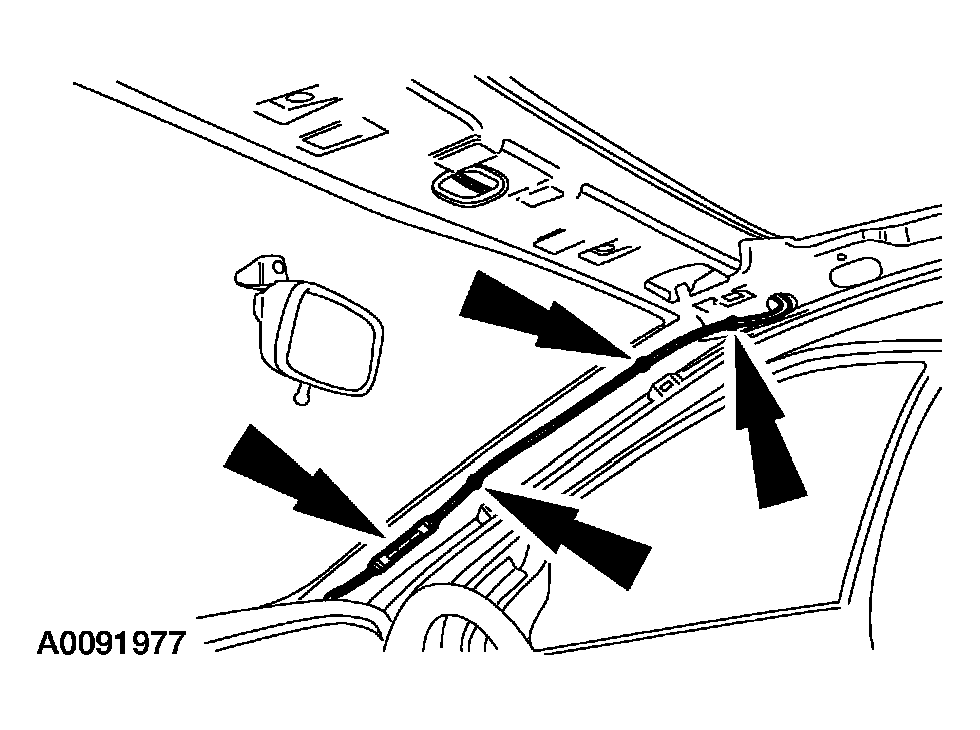

Disconnect the antenna cable from the clips (headliner shown removed for clarity).

Fig 5: Disconnecting Antenna Cable From Clips
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
