Removal and Installation

NOTE: Individual lock cylinders are repaired by discarding the inoperative cylinder and building a new lock cylinder using the appropriate lock repair package. The lock repair package includes a detailed instruction sheet to build the current key code of the vehicle.

Remove the luggage compartment lid lock cylinder cover.

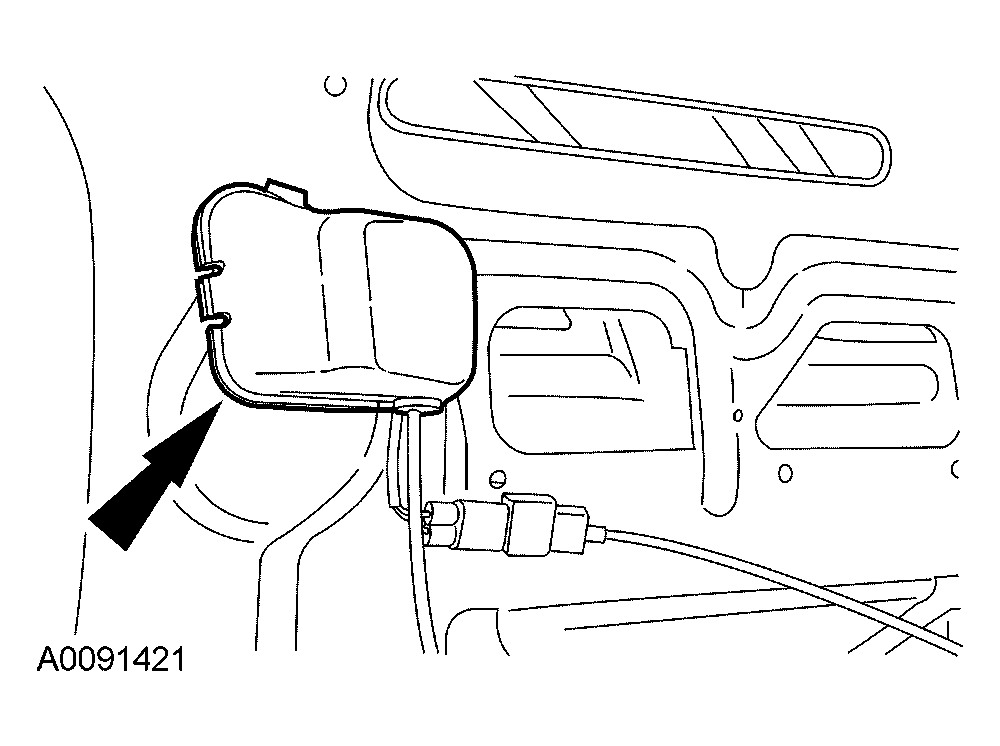

Fig 1: Removing Luggage Compartment Lid Lock Cylinder Cover
Courtesy of FORD MOTOR CO.
Remove the 3 nuts and the luggage compartment lid handle.

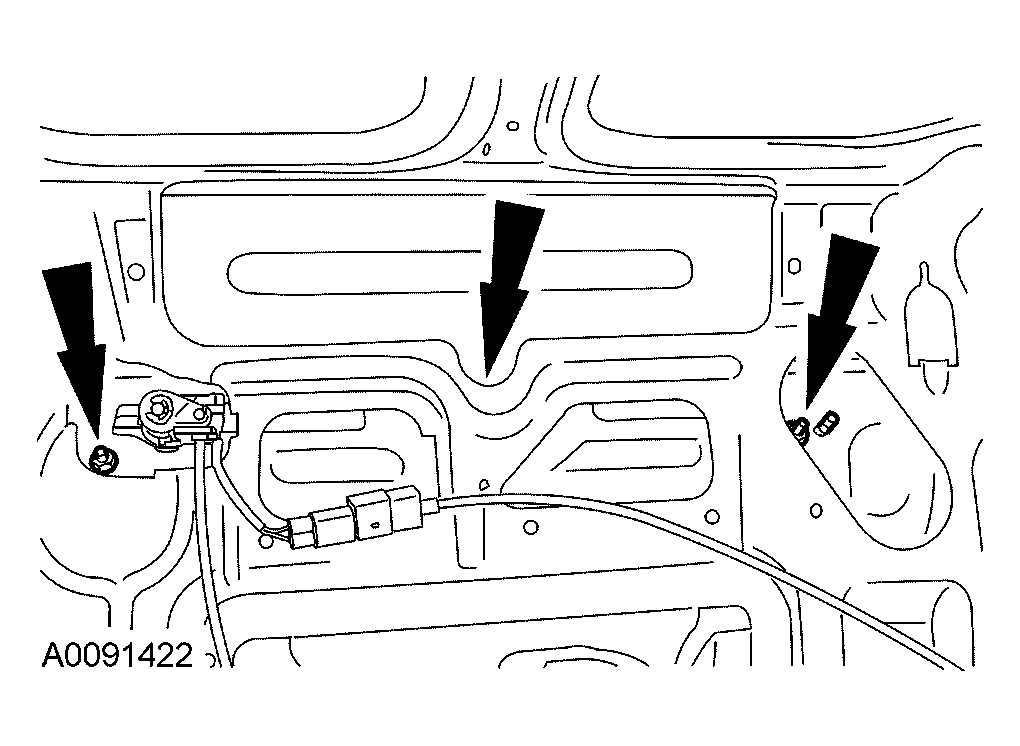

Fig 2: Removing Nuts Of Luggage Compartment Lid Handle
Courtesy of FORD MOTOR CO.
Disconnect the cable and electrical connector.

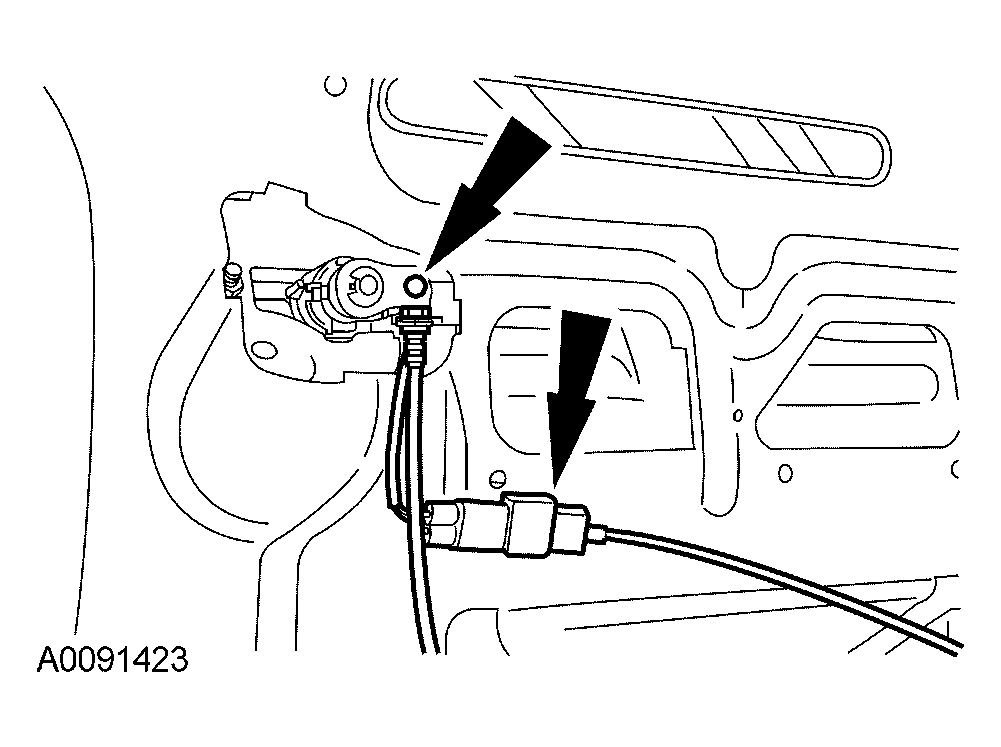

Fig 3: Disconnecting Cable And Electrical Connector
Courtesy of FORD MOTOR CO.
Detach the electrical connector, remove the nut and the luggage compartment lid lock cylinder.

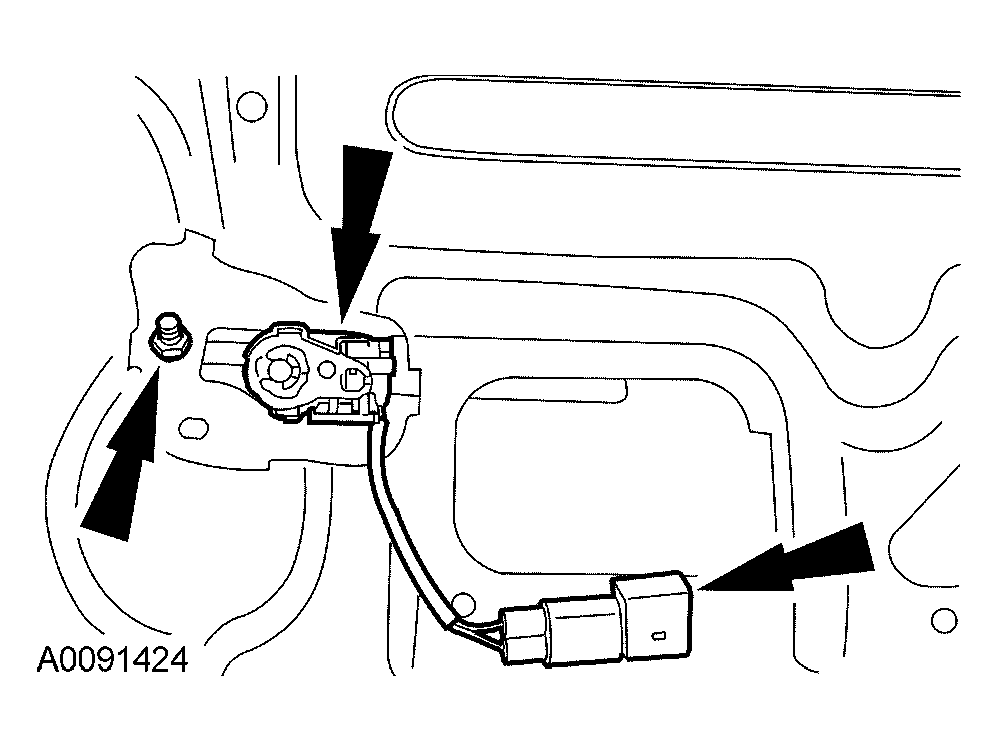

Fig 4: Detaching Electrical Connector, Removing Nut And Luggage Compartment Lid Lock Cylinder
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
