Inertia Fuel Shutoff (IFS) Connector

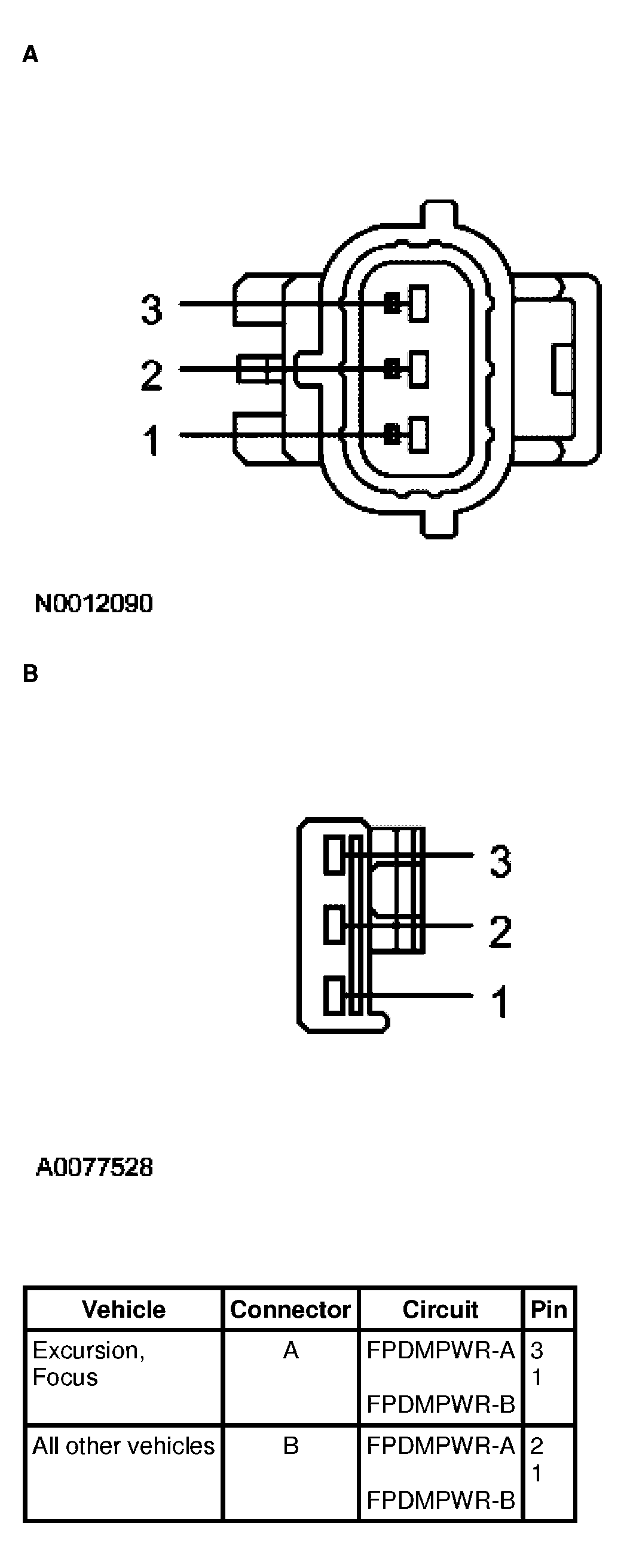

Fig 1: Inertia Fuel Shutoff (IFS) Connector
G03878142Courtesy of FORD MOTOR CO.
