Valve Train Components - Exploded View

WARNING: This page is about a different variant/trim than selected.

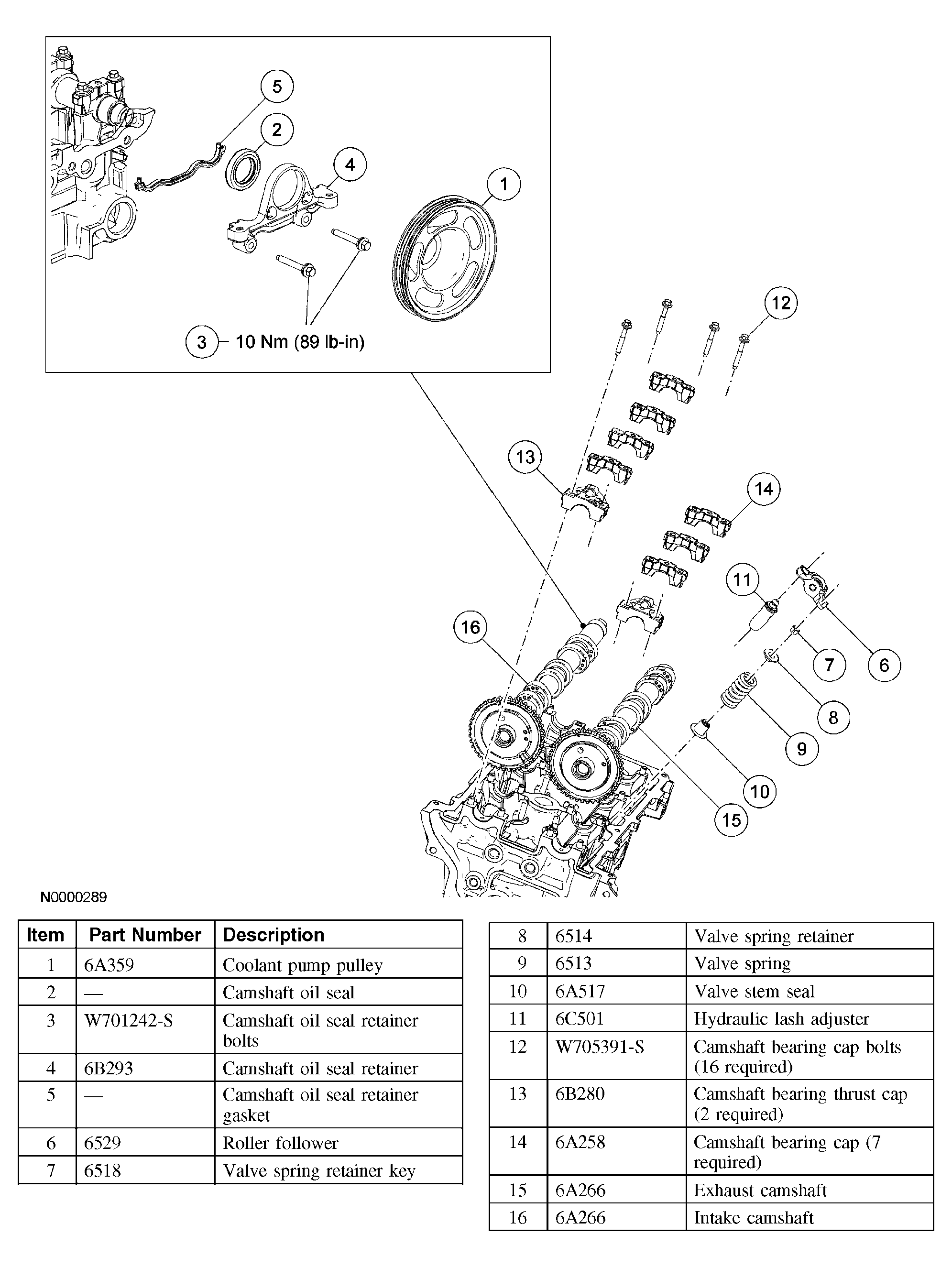

Fig 1: Exploded View Of Valve Train Components-LH With Torque Specifications
G03898324Courtesy of FORD MOTOR CO.

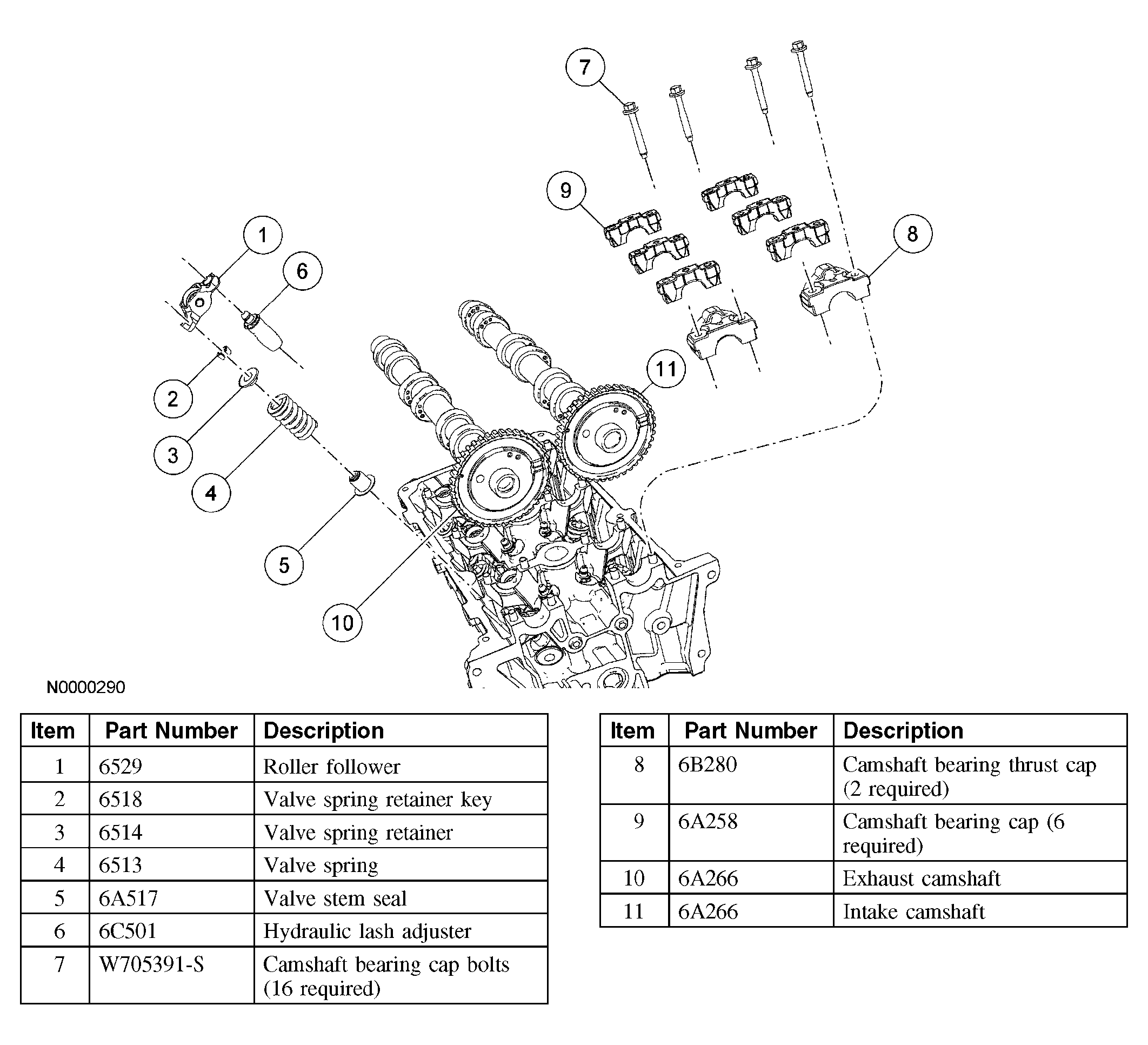

Fig 2: Exploded View Of Valve Train Components-RH
G03898325Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
