Valve Cover - RH: Material

WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS

Item Specification
Motorcraft Metal Surface Cleaner ZC-21 WSE-M5B392-A
Silicone Gasket and Sealant TA-30 WSE-M4G323-A6

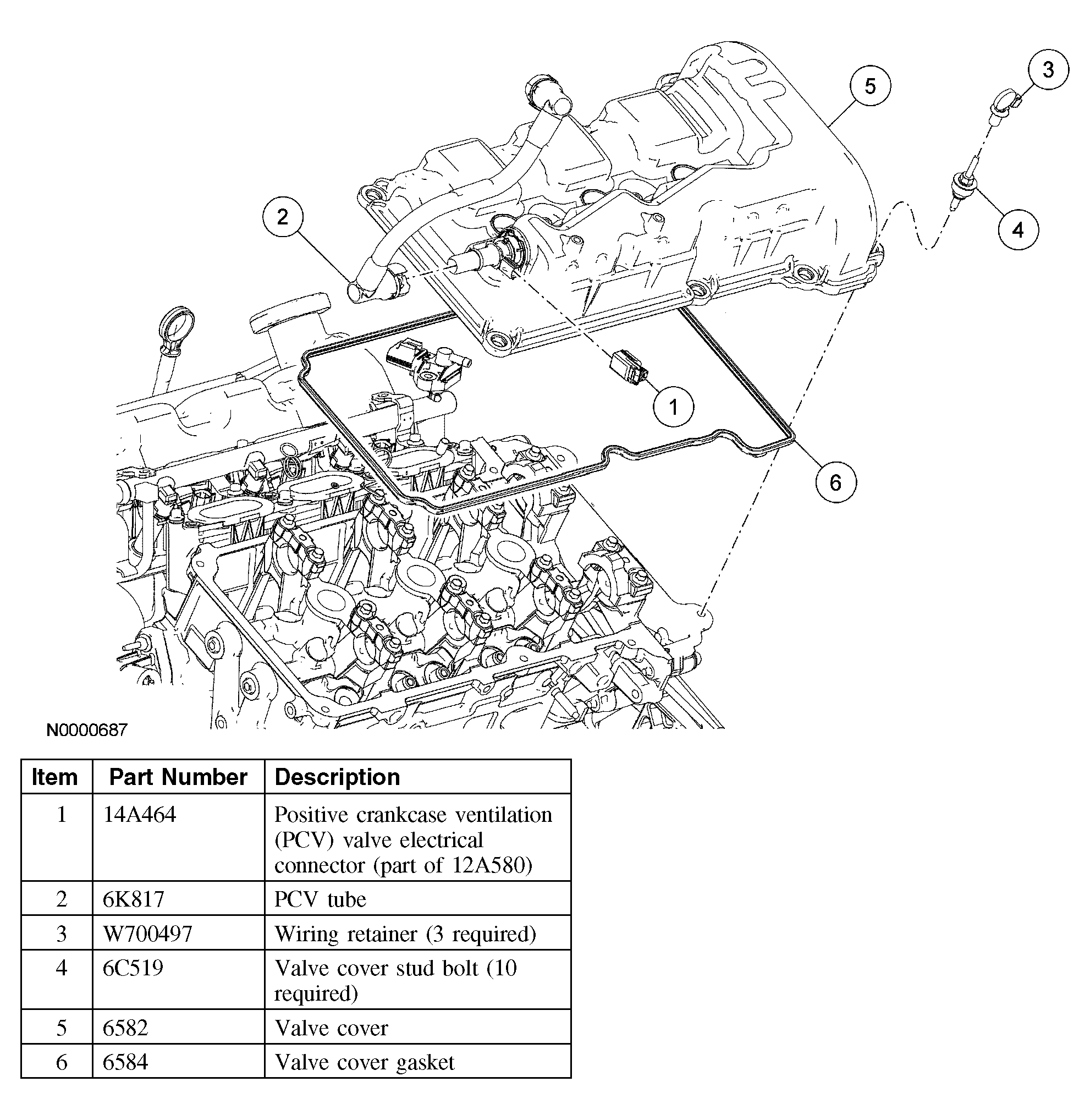

Fig 1: Removing Valve Cover - RH
G03898266Courtesy of FORD MOTOR CO.
