Valve Cover - LH: Material

WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS

Item Specification
Motorcraft Metal Surface Cleaner ZC-21 WSE-M5B392-A
Silicone Gasket and Sealant TA-30 WSE-M4G323-A6

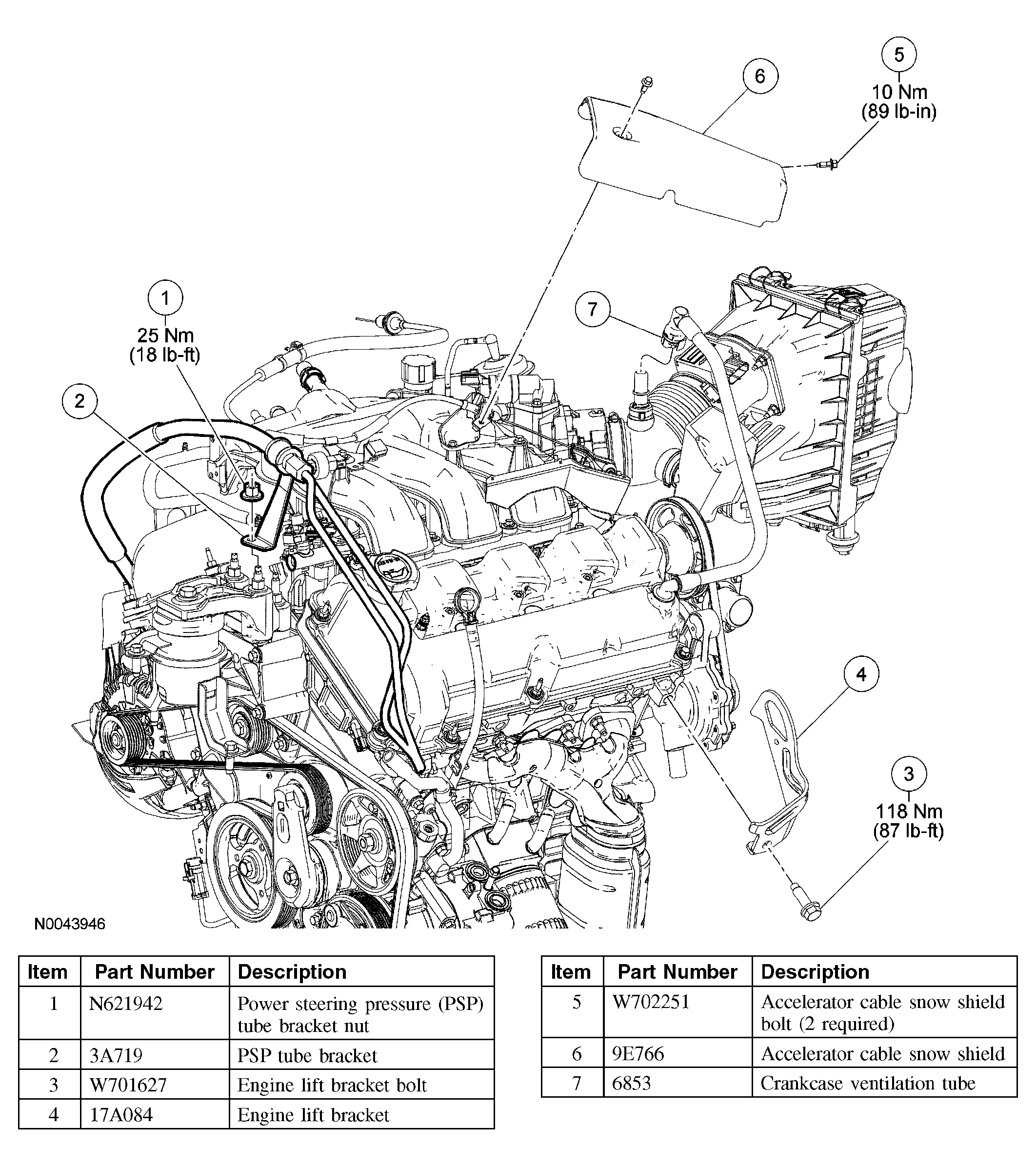

Fig 1: Removing Valve Cover - LH With Torque Specifications (1 Of 2)
G03898263Courtesy of FORD MOTOR CO.

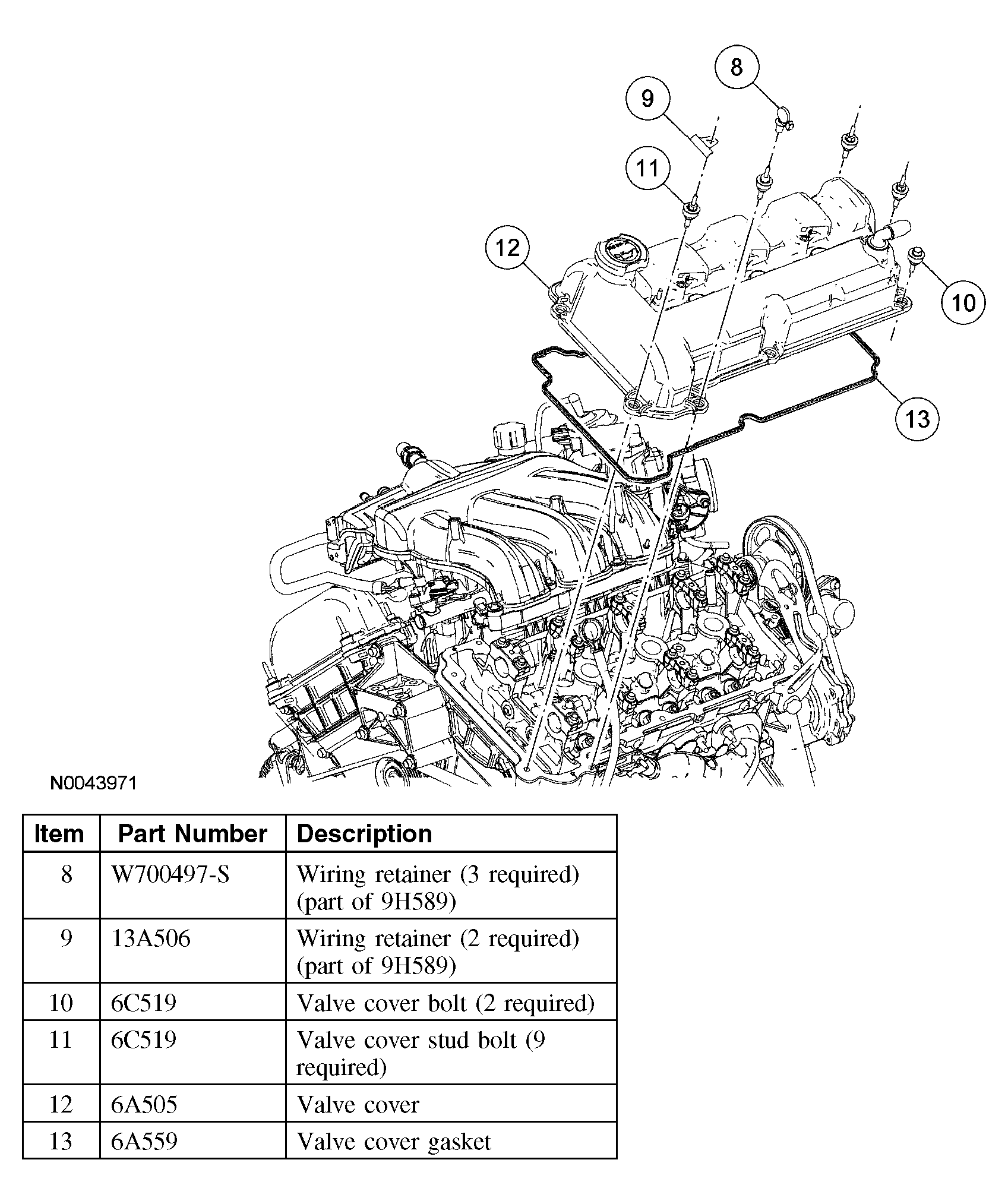

Fig 2: Removing Valve Cover - LH (2 Of 2)
G03898264Courtesy of FORD MOTOR CO.
