Valve Cover - LH: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Clean the valve cover, cylinder head and front cover sealing surfaces with metal surface cleaner and install a new valve cover gasket.
    2. NOTE: The valve cover must be installed and the bolts and stud bolts tightened within four minutes of sealant application.
  2. Apply a 5-mm (0.19-in) dot of silicone gasket sealant to the front cover-to-cylinder head joints.
  3. Position the valve cover and install the bolts and stud bolts
    • Tighten in the sequence shown in Fig 1 to 10 Nm (89 lb-in).

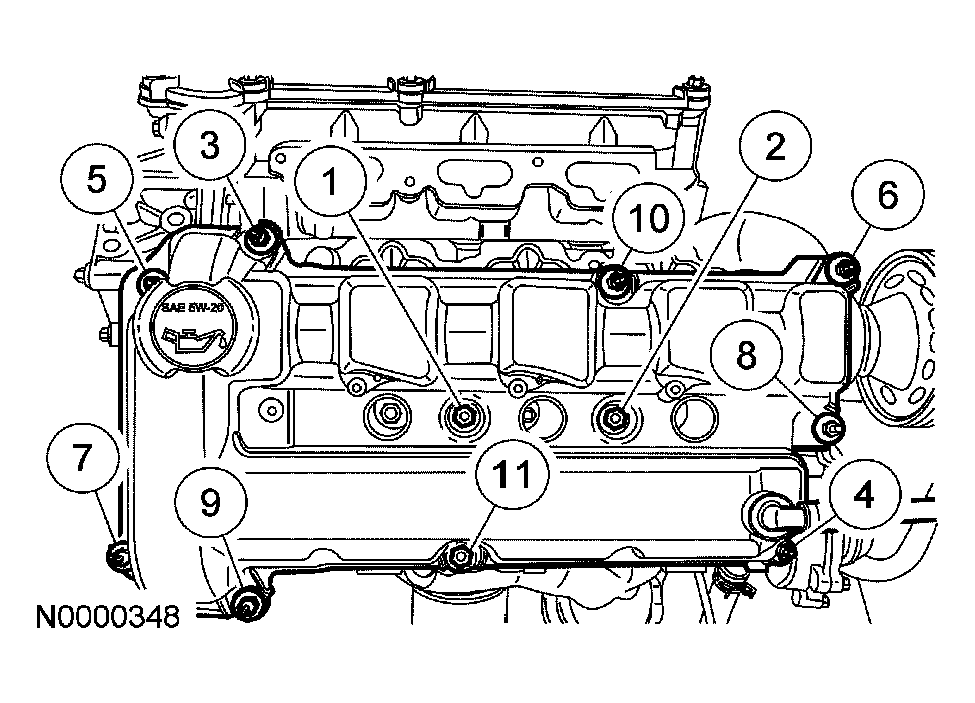

      Fig 1: Identifying Tightening Sequence Of Valve Cover Bolts
      G03898265Courtesy of FORD MOTOR CO.
  4. Attach the wiring retainers to the valve cover stud bolts.
  5. Attach the crankcase ventilation tube to the air cleaner outlet pipe.
  6. Install the accelerator cable snow shield and the 2 bolts.
    • Tighten in the sequence shown to 10 Nm (89 lb-in).
  7. If equipped, install the engine lift bracket and the bolt.
    • Tighten to 118 Nm (87 lb-ft).
  8. Position the PSP tube and bracket and install the nut.
    • Tighten to 25 Nm (18 lb-ft).
  9. Install the LH ignition coil-on-plugs. For additional information, refer to ENGINE IGNITION - 3.0L (4V) .
