Upper Intake Manifold: Notes

WARNING: This page is about a different variant/trim than selected.

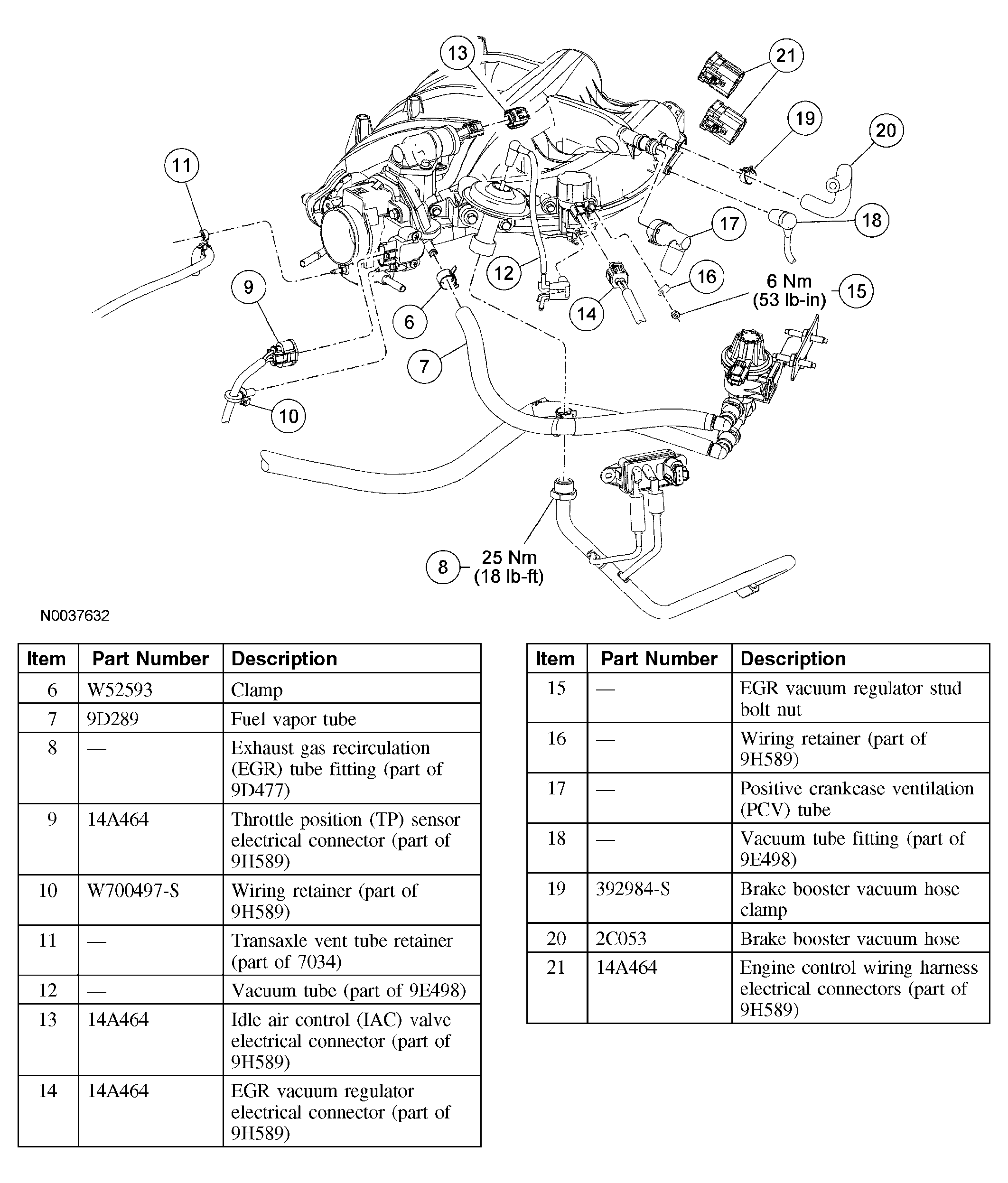

Fig 1: Exploded View Of Upper Intake Manifold With Torque Specifications (1 Of 3)

Courtesy of FORD MOTOR CO.

Fig 2: Exploded View Of Upper Intake Manifold With Torque Specifications (2 Of 3)

Courtesy of FORD MOTOR CO.

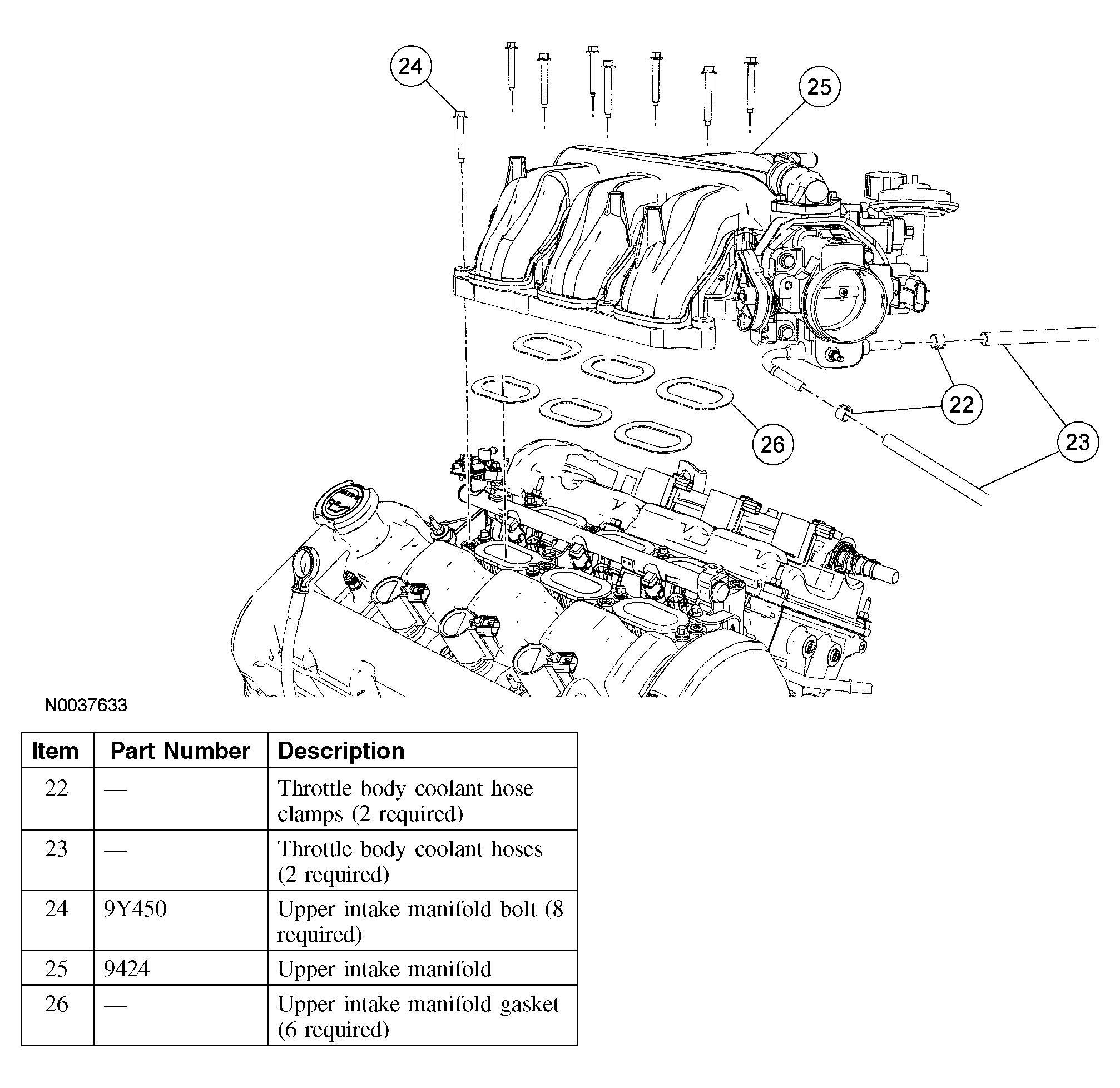

Fig 3: Exploded View Of Upper Intake Manifold (3 Of 3)

Courtesy of FORD MOTOR CO.
