Section 9 (Engine - 3.0L (4V))
>>
In-Vehicle Repair
>>
Lower Intake Manifold
>>
Notes
Lower Intake Manifold: Notes
WARNING:
This page is about a different variant/trim than selected.

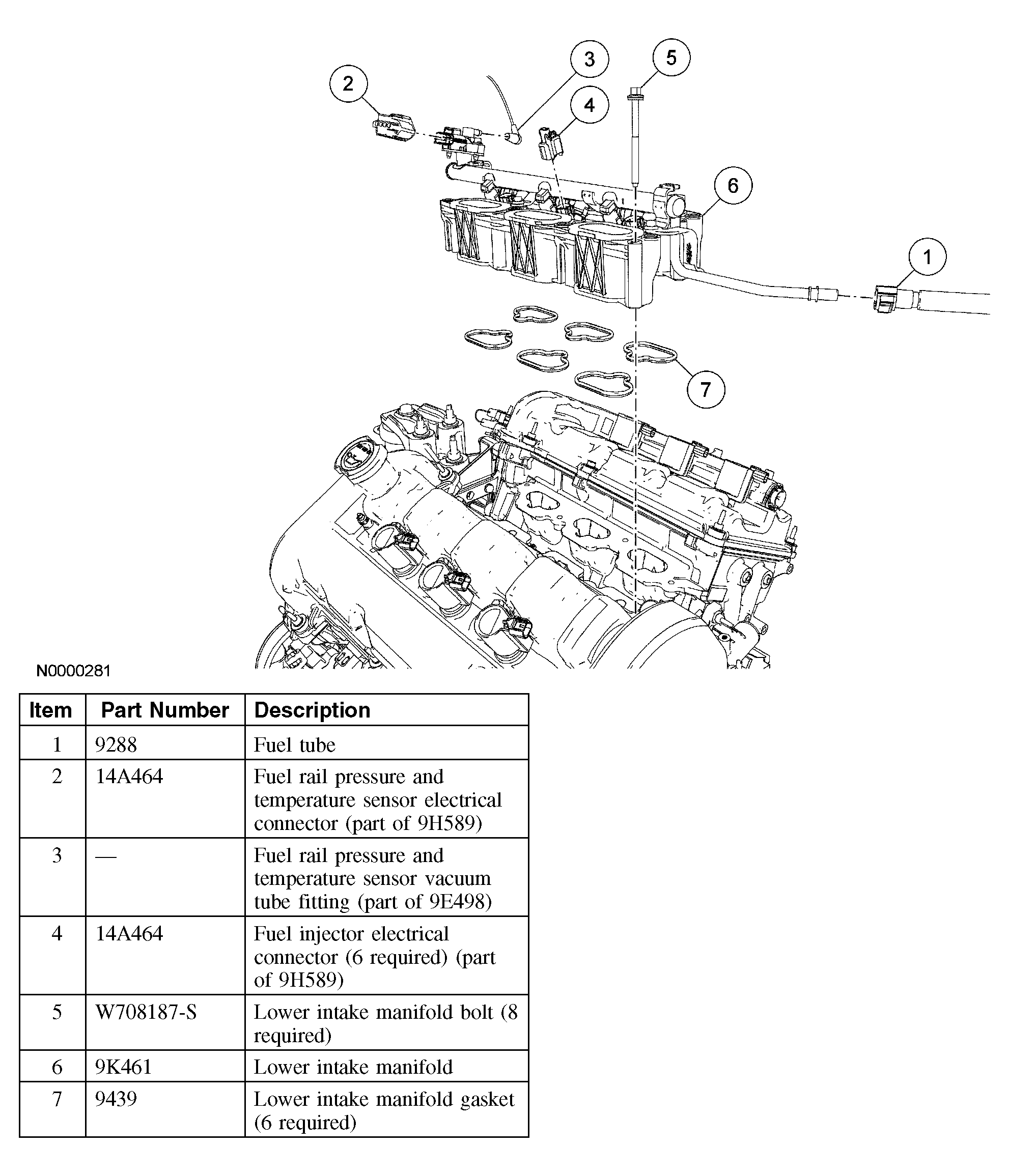

Fig 1: Exploded View Of Lower Intake Manifold
Courtesy of FORD MOTOR CO.
