Lower End Components - Exploded View

WARNING: This page is about a different variant/trim than selected.

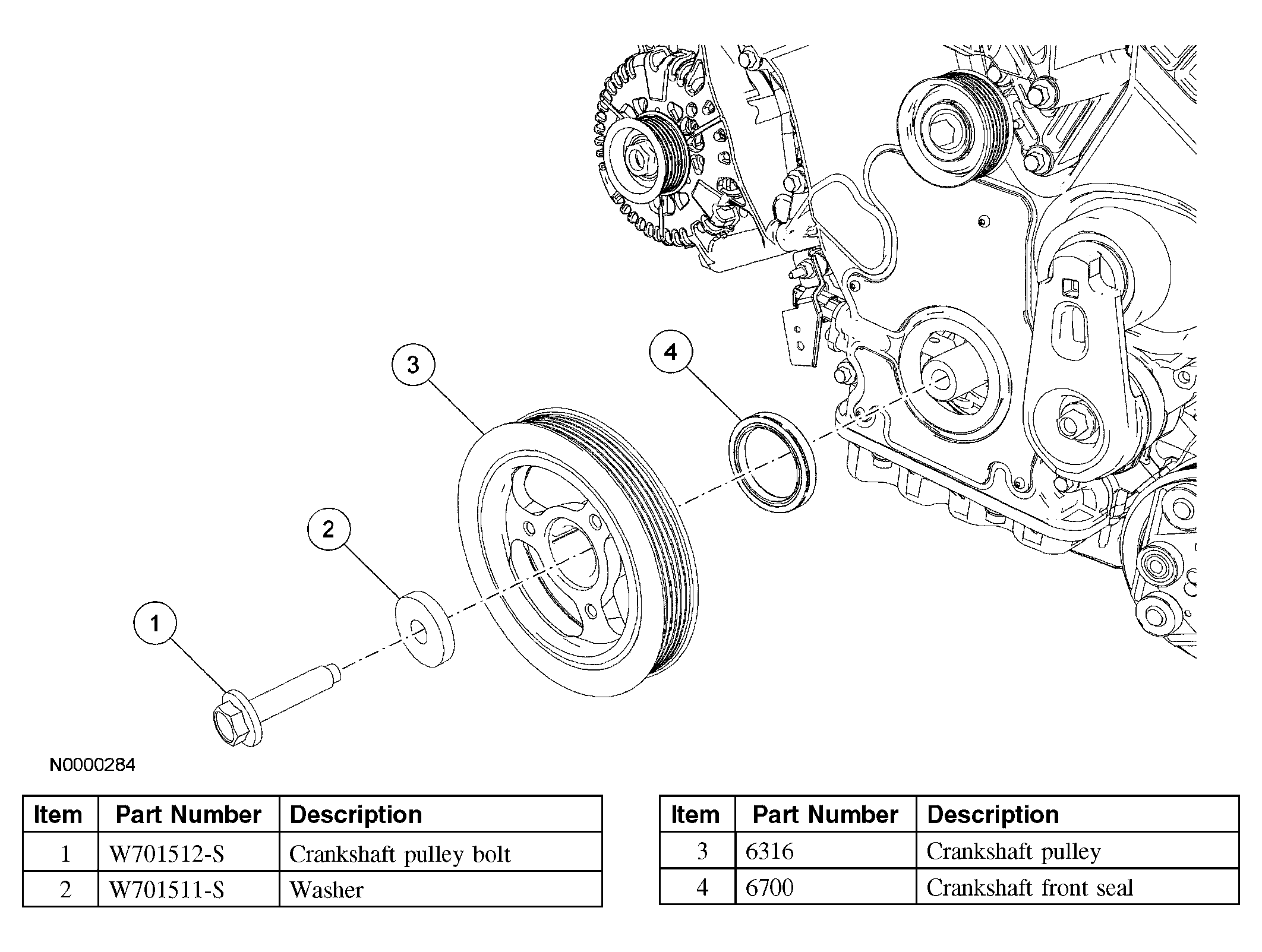

Fig 1: Removing Crankshaft Pulley And Front Seal
G03898268Courtesy of FORD MOTOR CO.

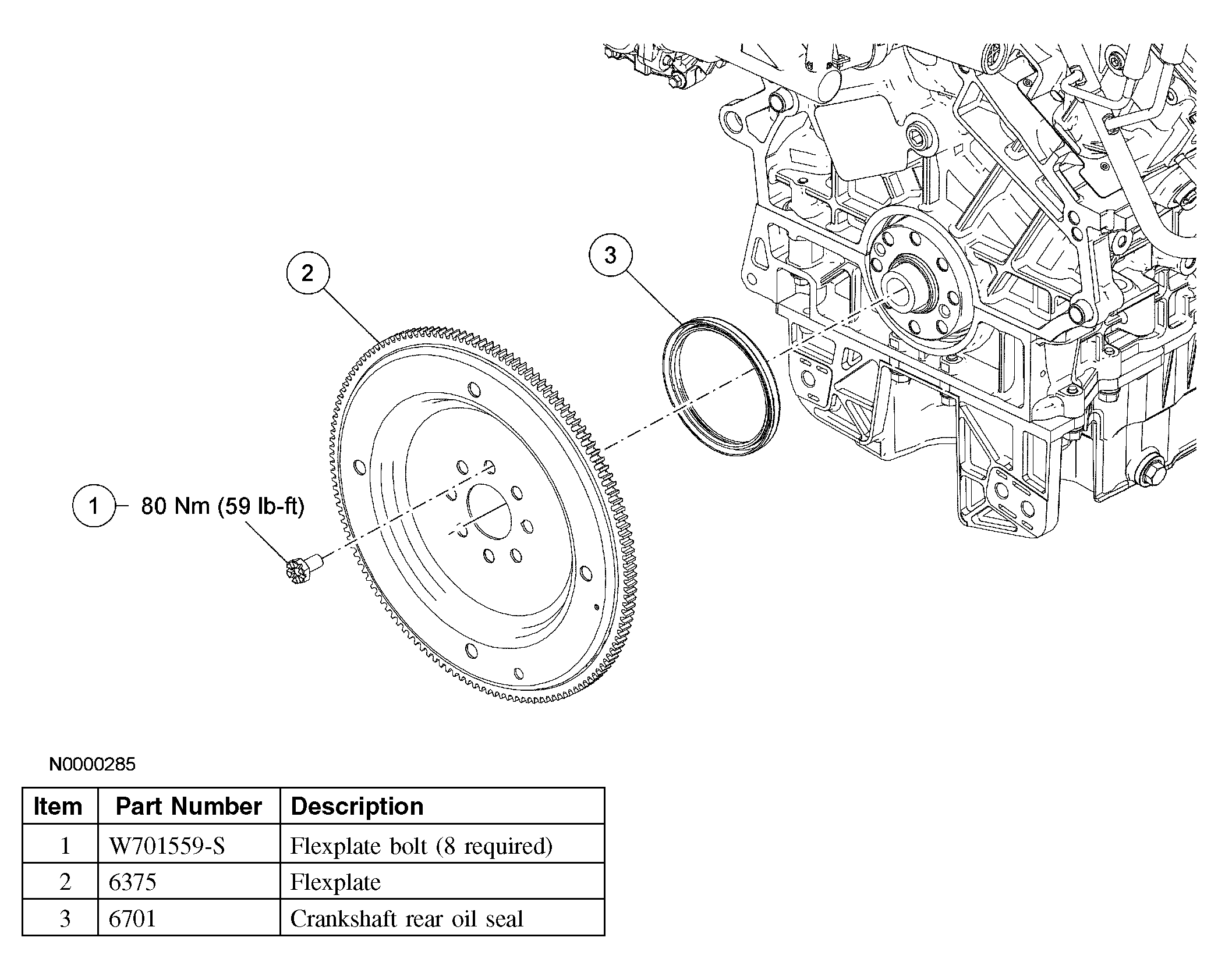

Fig 2: Removing Flexplate And Rear Seal With Torque Specifications
G03898269Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
