Special Tool(s)

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOL DESCRIPTION

G03950580
 3-Bar Engine Support Kit 303-F072
G03898369
 Lifting Brackets, Engine 303-050 (T70P-6000)
G03899013
 Universal Adapter Brackets 014-0001

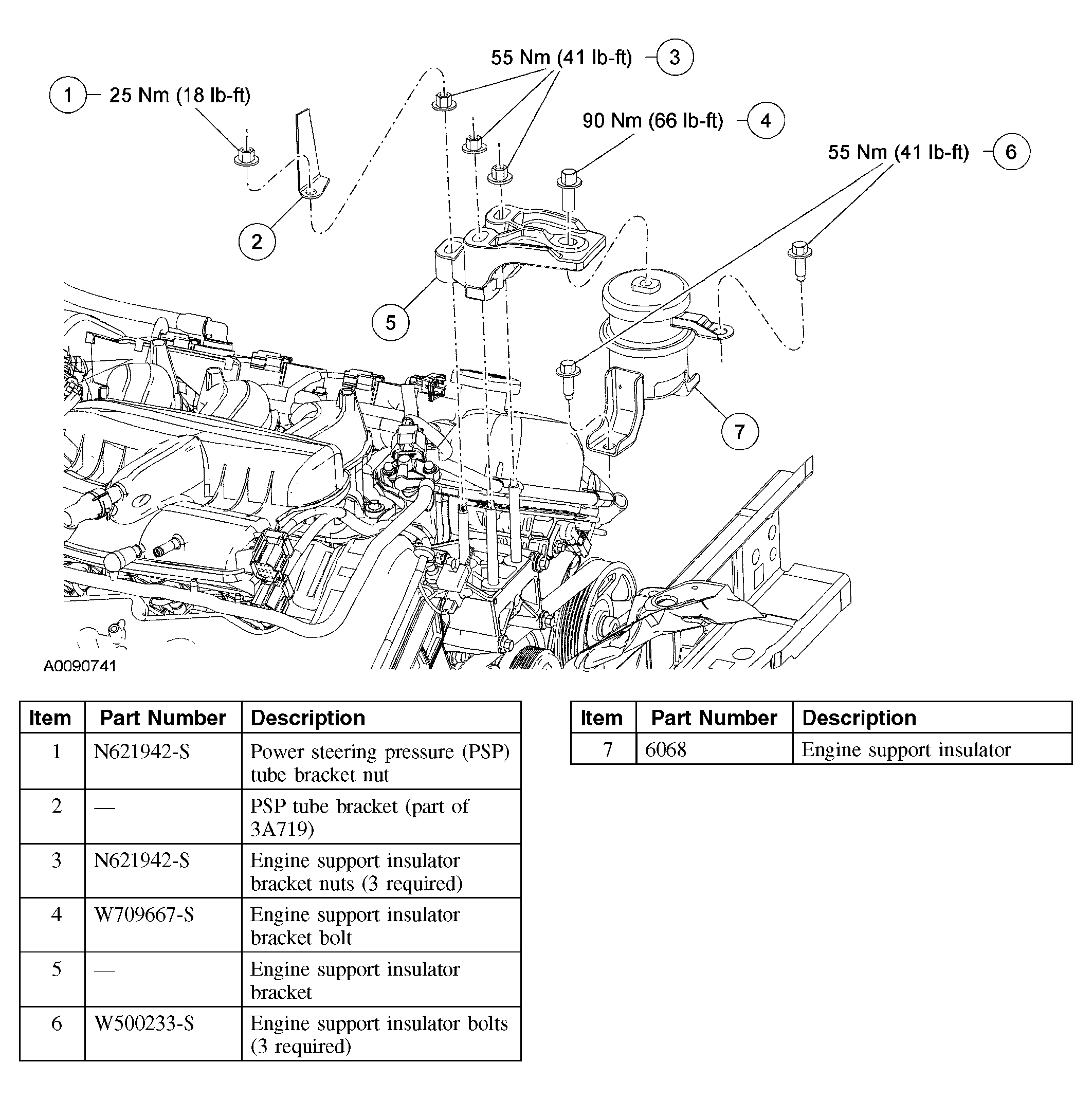

Fig 1: Exploded View Of Engine Support Insulators
G03898371Courtesy of FORD MOTOR CO.
