Engine Lubrication Components - Exploded View

WARNING: This page is about a different variant/trim than selected.

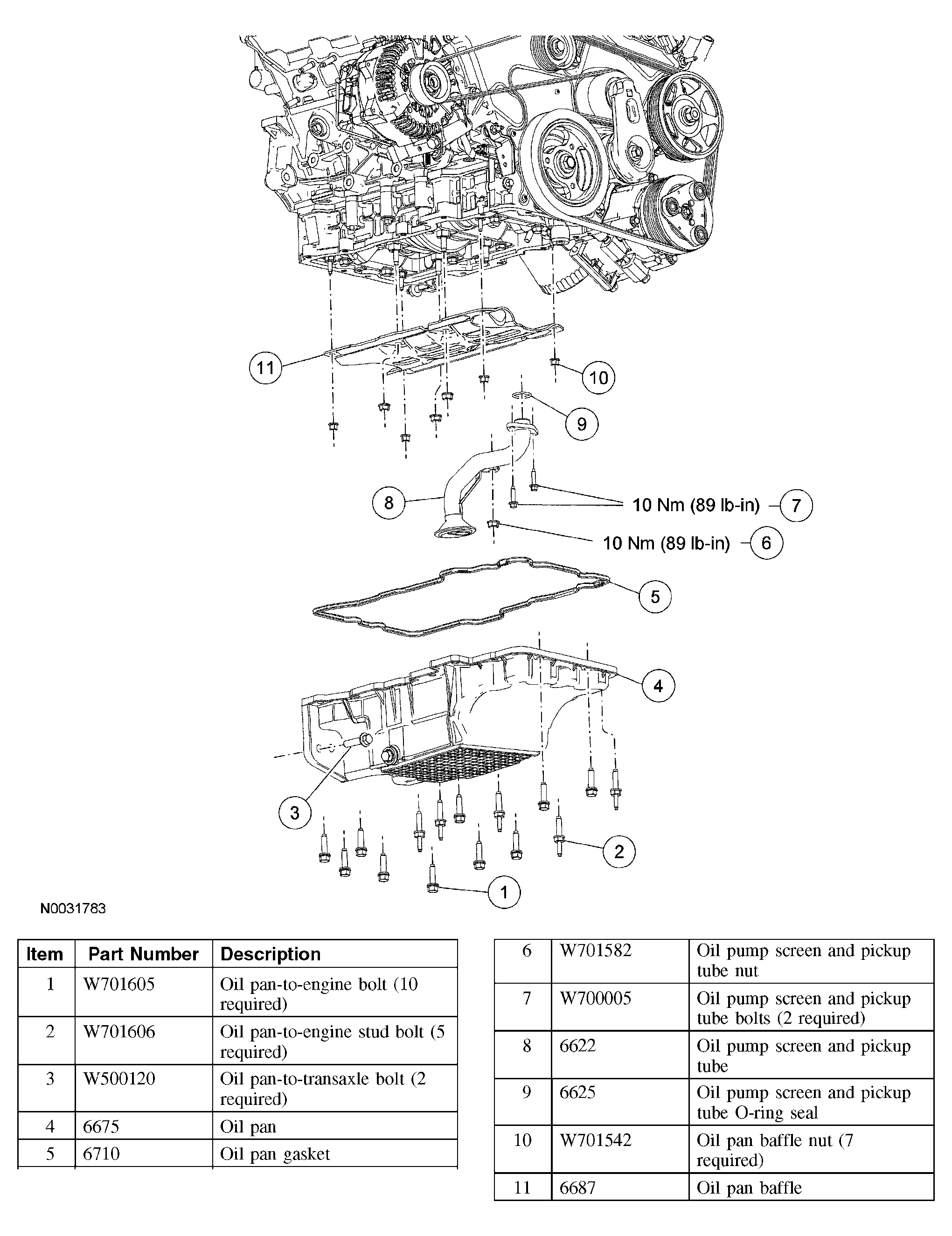

Fig 1: Exploded View Of Oil Pan, Oil Pump Screen And Pickup Tube And Oil Pan Baffle
G03898358Courtesy of FORD MOTOR CO.

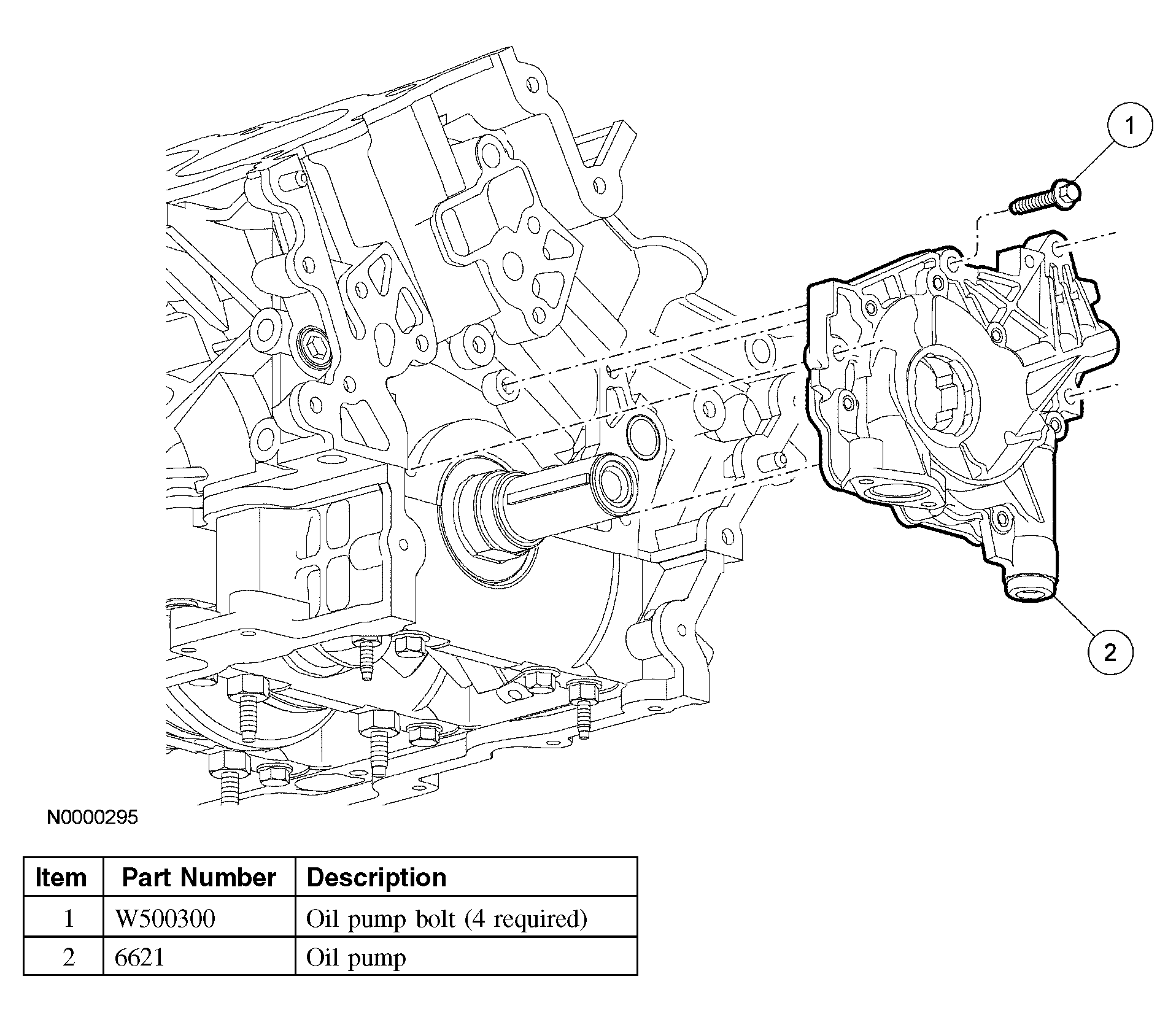

Fig 2: Removing Oil Pump
G03898359Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
