Engine Front Cover: Material

WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS

Item Specification
Motorcraft Metal Surface Cleaner ZC-21 WSE-M5B392-A
Silicone Gasket and Sealant TA-30 WSE-M4G323-A6
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent WSS-M2C930-A

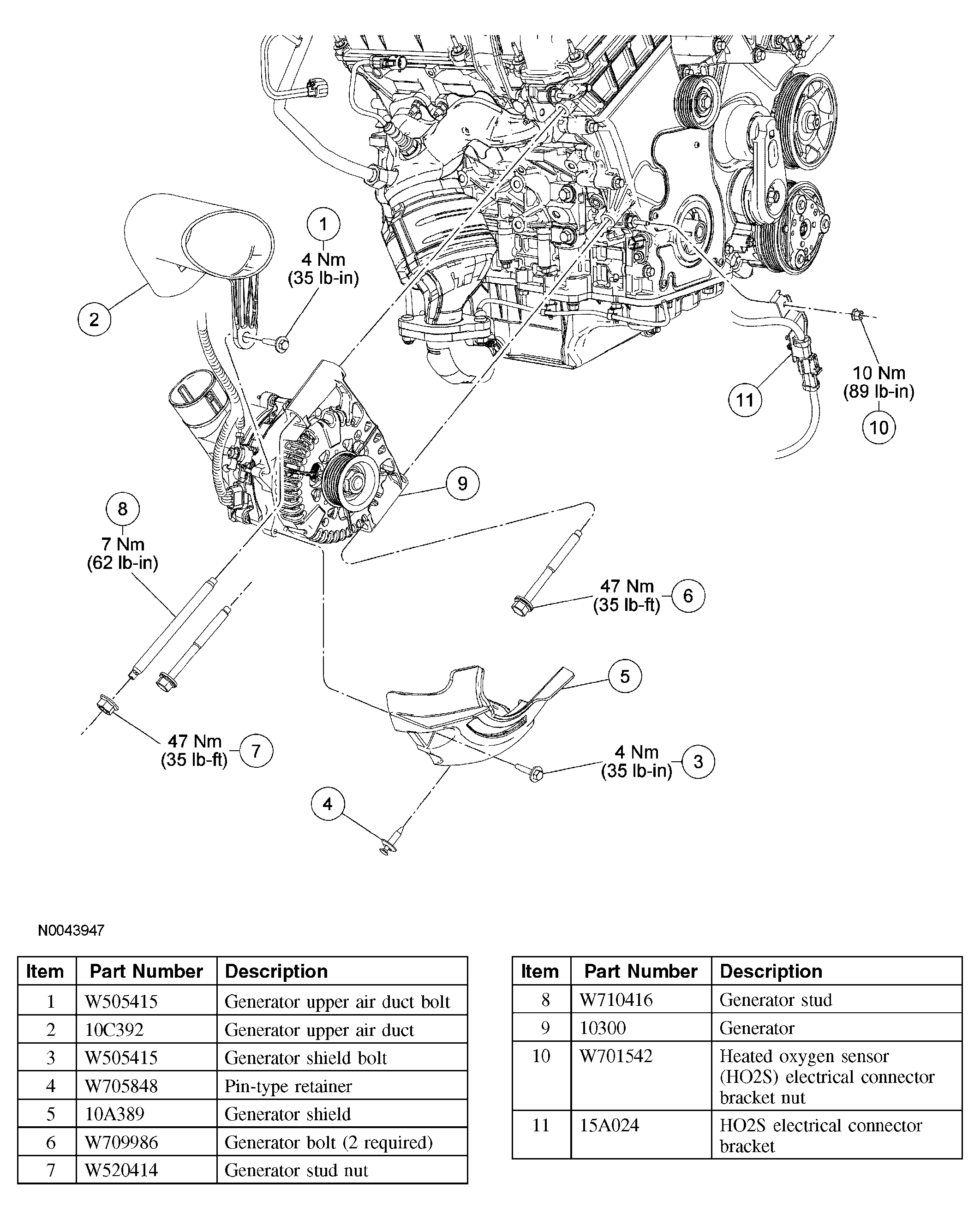

Fig 1: Removing Engine Front Cover With Torque Specifications (1 Of 3)
G03898288Courtesy of FORD MOTOR CO.

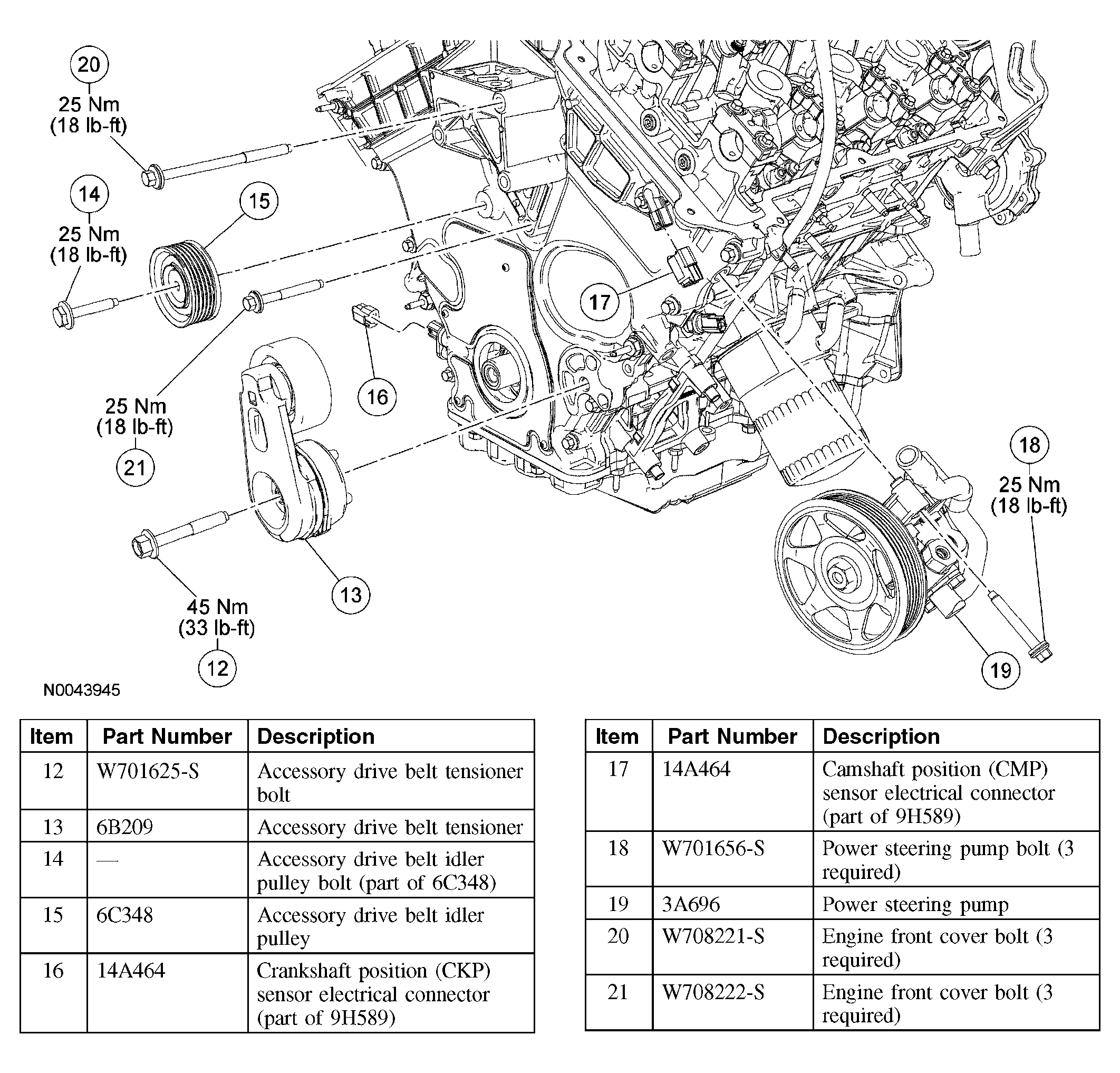

Fig 2: Removing Engine Front Cover With Torque Specifications (2 Of 3)
G03898289Courtesy of FORD MOTOR CO.

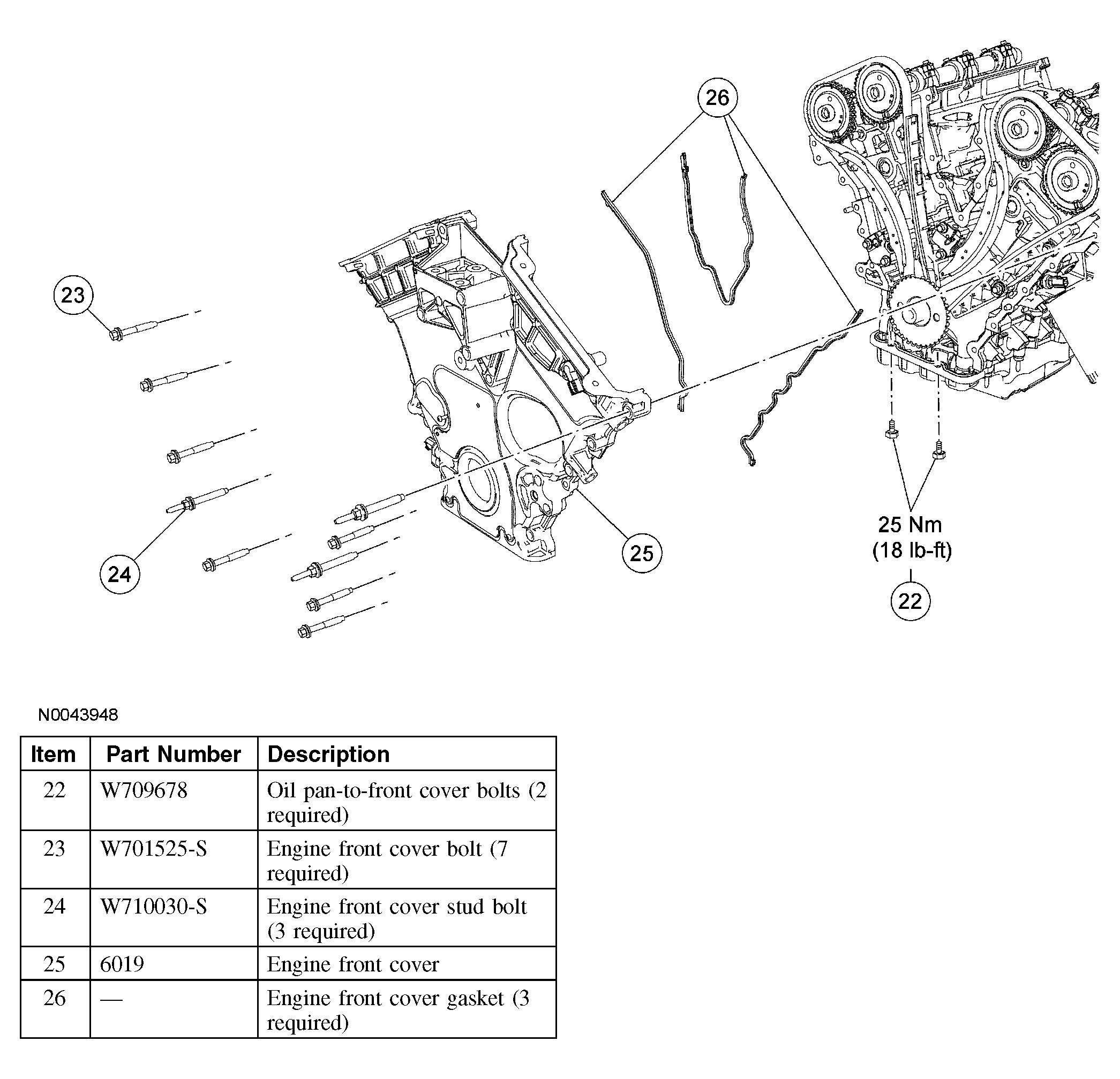

Fig 3: Removing Engine Front Cover With Torque Specifications (3 Of 3)
G03898290Courtesy of FORD MOTOR CO.
