Cylinder Head - LH: Installation

WARNING: This page is about a different variant/trim than selected.
    CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.
  1. Use a plastic scraping tool to remove all traces of the head gasket.
    • Clean all surfaces with metal surface cleaner.
  2. Position a new gasket and the cylinder head.
  3. NOTE: New cylinder head bolts must be installed. They are torque-to-yield designed and cannot be reused.
  4. Install the bolts and tighten in 6 stages in the sequence shown in Fig 1.
    • Stage 1: Tighten to 40 Nm (30 lb-ft).
    • Stage 2: Tighten bolts 90 degrees.
    • Stage 3: Loosen one full turn.
    • Stage 4: Tighten to 40 Nm (30 lb-ft).
    • Stage 5: Tighten 90 degrees.
    • Stage 6: Tighten 90 degrees.

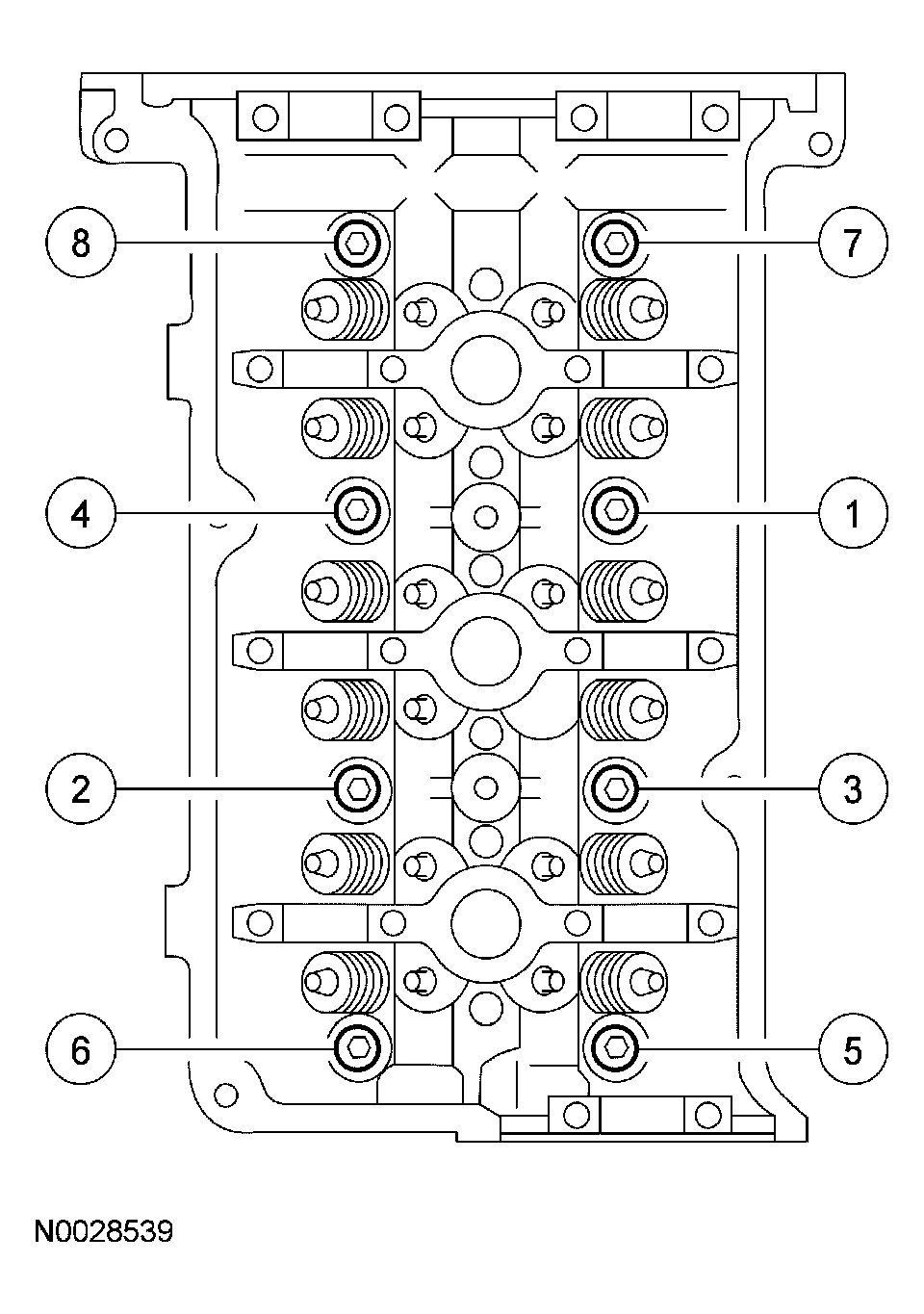

      Fig 1: Identifying Installing Sequence Of Cylinder Head Bolts
      G03898357Courtesy of FORD MOTOR CO.
  5. CAUTION: The hydraulic lash adjusters must be installed in their original positions.
  6. Install the hydraulic lash adjusters.
    • Lubricate the hydraulic lash adjusters with clean engine oil.
  7. CAUTION: The camshaft roller followers must be installed in their original positions.
  8. Install the camshaft roller followers.
    • Lubricate the camshaft roller followers with clean engine oil.
  9. Position the coolant pump and install the bolts.
    • Tighten to 10 Nm (89 lb-in).
  10. Install the oil level indicator and tube. For additional information refer to OIL LEVEL INDICATOR AND TUBE .
  11. Install the LH exhaust manifold. For additional information refer to EXHAUST SYSTEM .
  12. Install the LH camshafts. For additional information, refer to CAMSHAFTS - LH .
  13. Install the coolant bypass tube. For additional information, refer to ENGINE COOLING .
  14. Install the lower intake manifold. For additional information, refer to LOWER INTAKE MANIFOLD .
