Crankshaft Pulley: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Remove the accessory drive belt. For additional information, refer to ACCESSORY DRIVE - 3.0L (4V) .
  3. Use the special tool to hold the crankshaft pulley and remove the crankshaft pulley bolt.

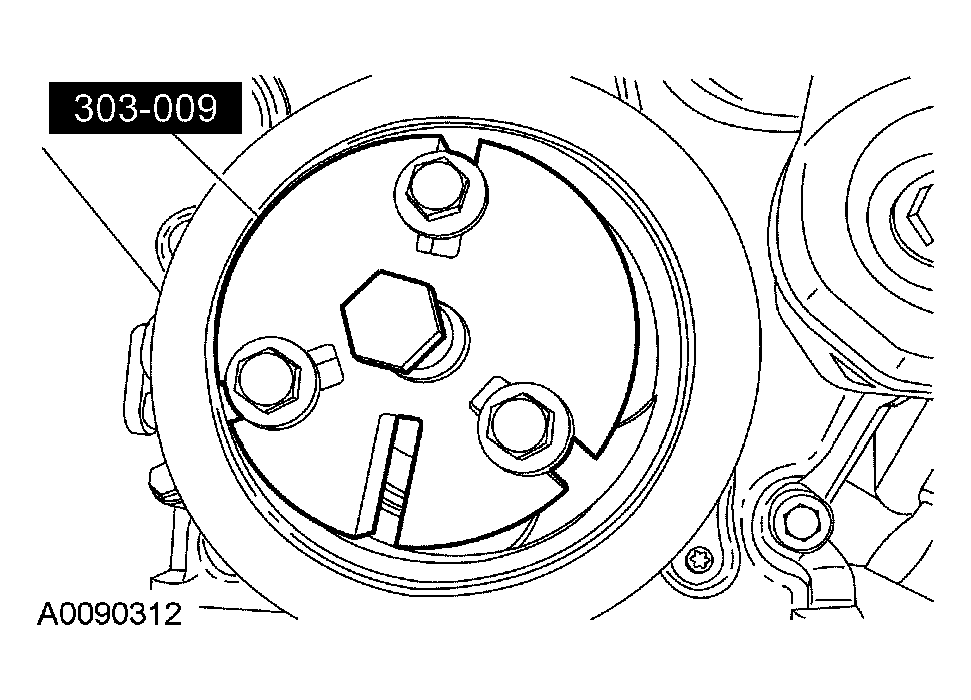

    Fig 1: Removing Crankshaft Pulley Bolt
    G03898273Courtesy of FORD MOTOR CO.
  4. Using the special tool, remove the crankshaft pulley.
    Fig 2: Removing Crankshaft Pulley
    G03898274Courtesy of FORD MOTOR CO.
