Crankshaft Front Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Remove the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY .
  3. Using the special tool, remove and discard the crankshaft front seal.

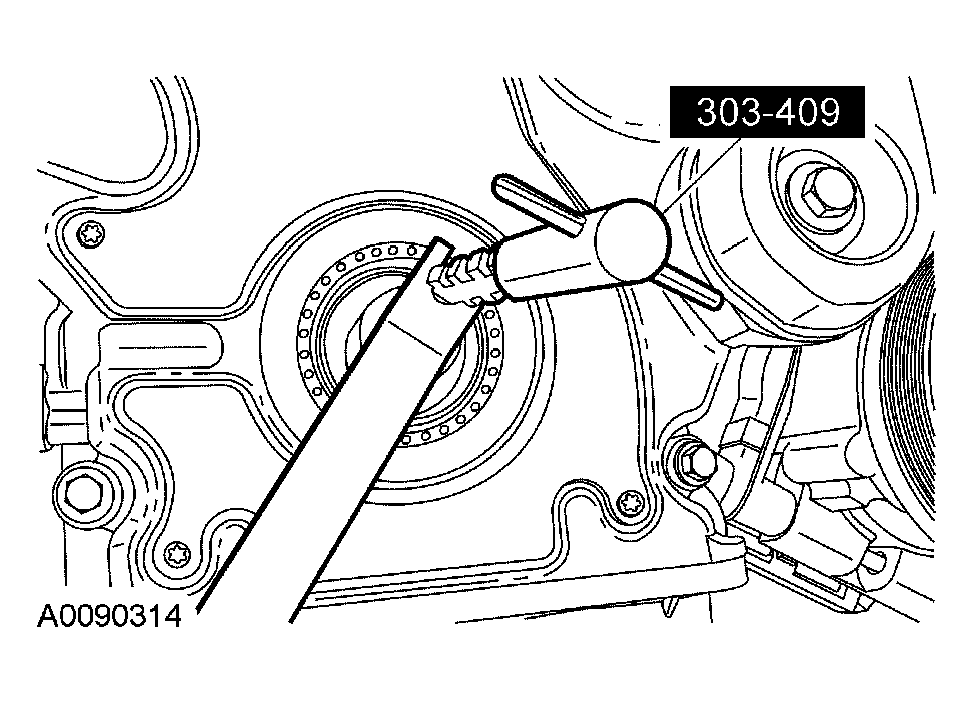

    Fig 1: Removing Crankshaft Front Seal
    G03898280Courtesy of FORD MOTOR CO.
