Camshafts - RH: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS .
    2. CAUTION: Cylinder head camshaft journal caps and cylinder heads are numbered to verify that they are assembled in their original positions.
    CAUTION: After loosening all of the camshaft bearing cap bolts, remove the camshaft bearing thrust caps (5R and 1R) first, or damage to the thrust caps may occur.
  2. Loosen the bolts evenly in the sequence shown in Fig 1.
    1. Remove the camshaft bearing thrust caps (5R and 1R).
    2. Remove the remaining camshaft bearing caps.
    3. Remove the camshafts from the cylinder head.

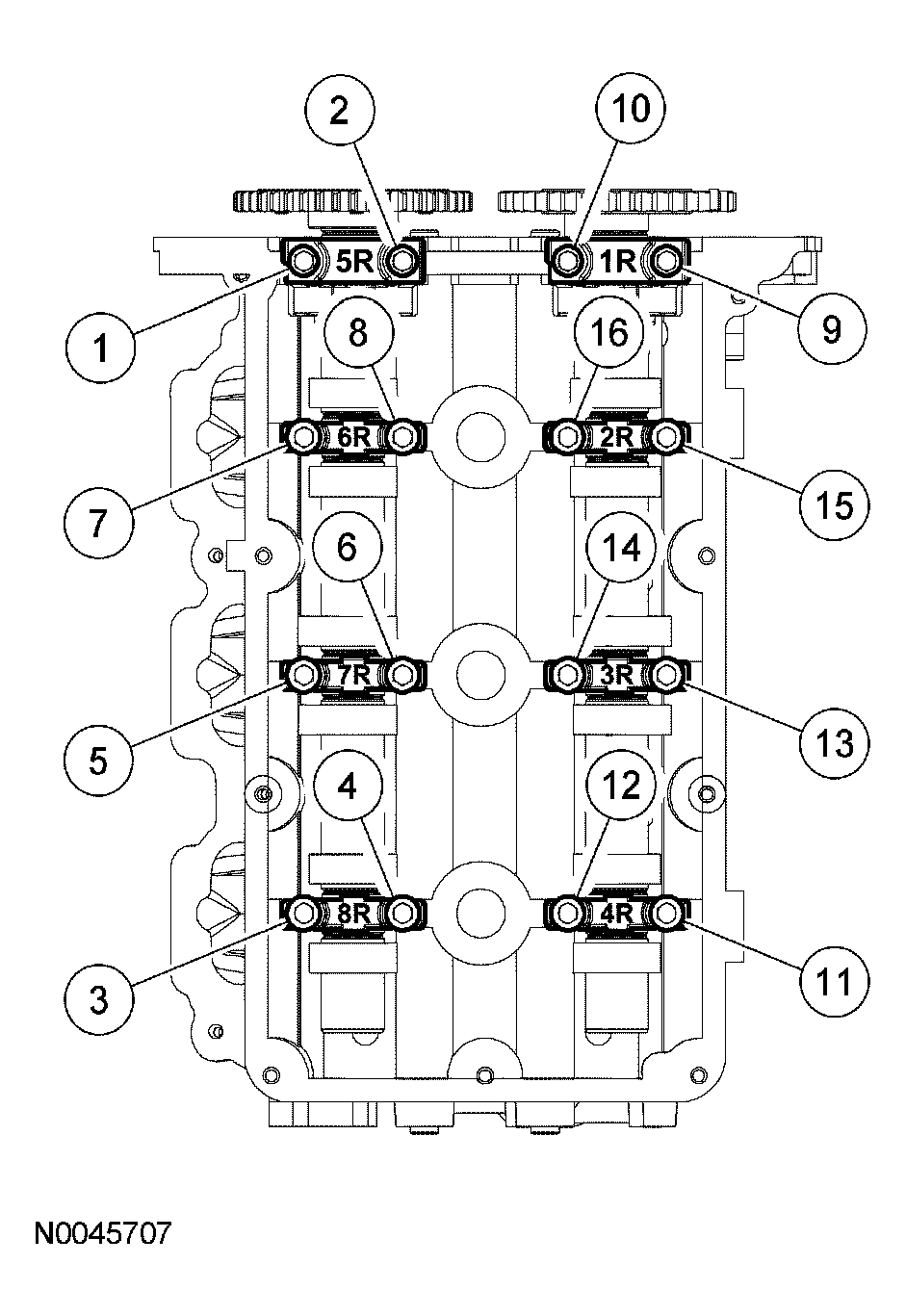

      Fig 1: Identifying Loosening Sequence Of Camshaft Bearing Caps Bolts
      G03898341Courtesy of FORD MOTOR CO.
