Removal and Installation

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Remove the LH and RH valve covers. For additional information, refer to VALVE COVER - LH  and VALVE COVER - RH .
  3. Remove the 6 spark plugs.
    • To install, tighten to 15 Nm (11 lb-ft).
  4. Remove the RH splash shield.
    • To install, tighten to 9 Nm (80 lb-in).
  5. Rotate the crankshaft until the camshaft lobe is pointing directly away from the roller follower.
  6. Using the special tool, remove the roller followers.

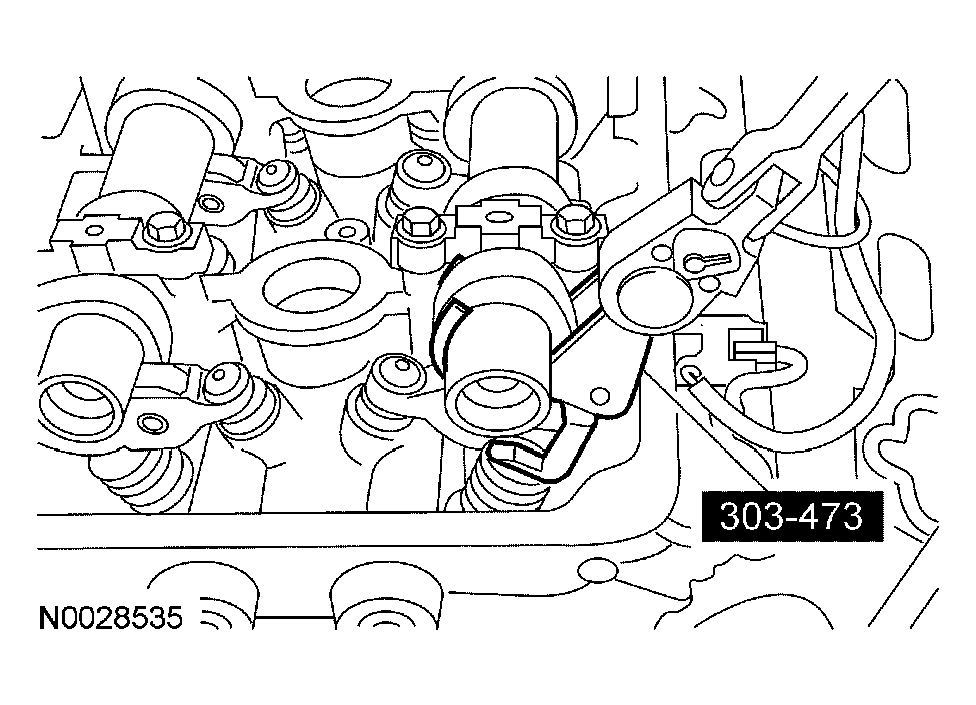

    Fig 1: Removing Roller Followers
    G03898345Courtesy of FORD MOTOR CO.
    7. NOTE: Lubricate the camshaft followers with clean engine oil.
  7. To install, reverse the removal procedure.
