Cylinder Head: Material

WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent WSS-M2C930-A
Motorcraft Metal Surface Cleaner ZC-21 WSE-M5B392-A

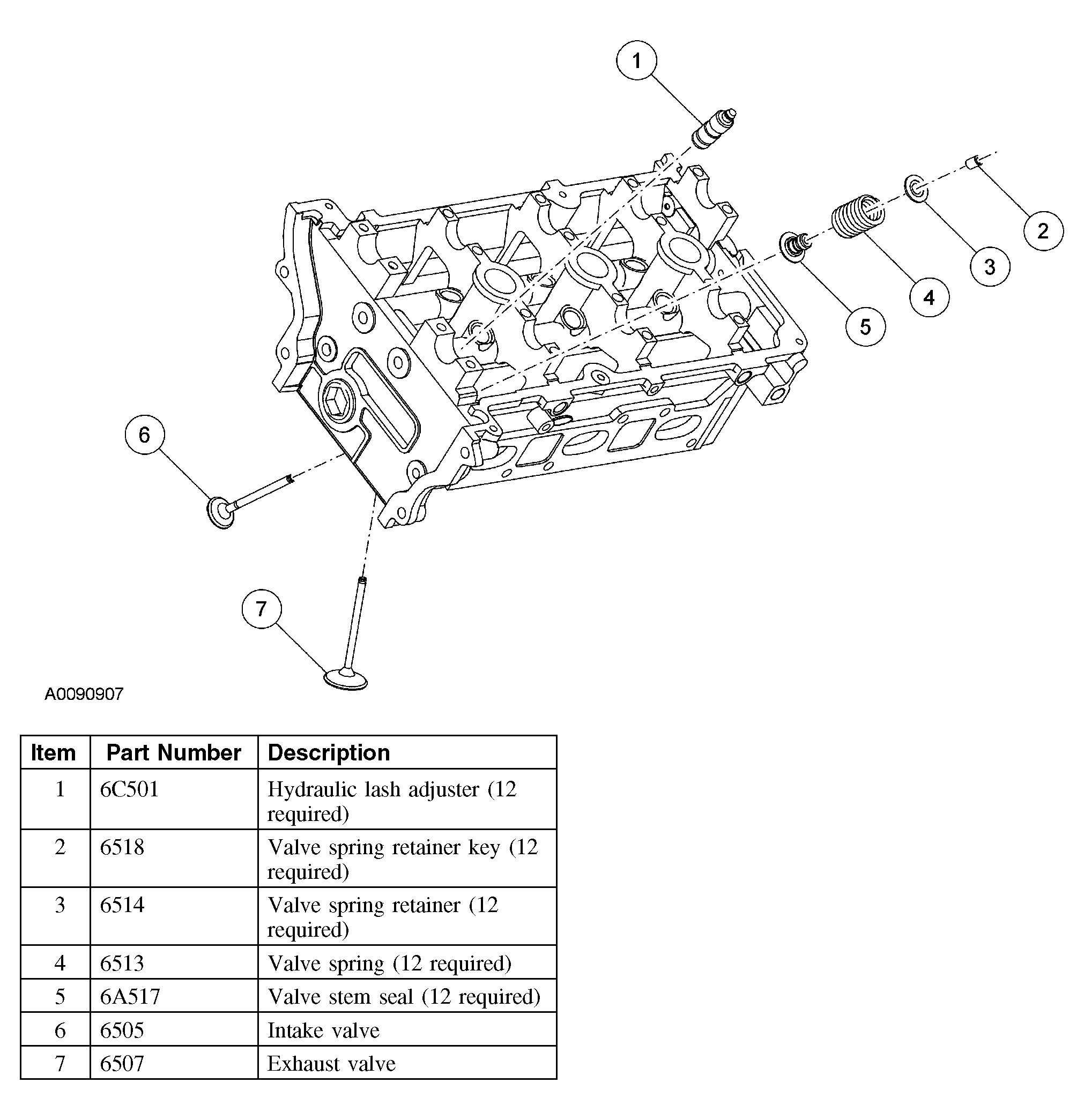

Fig 1: Removing Cylinder Head
G03898515Courtesy of FORD MOTOR CO.
