Transmission Fluid Cooler Tubes: Material

WARNING: This page is about a different variant/trim than selected.
MATERIAL

Item Specification
Motorcraft MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX MERCON®

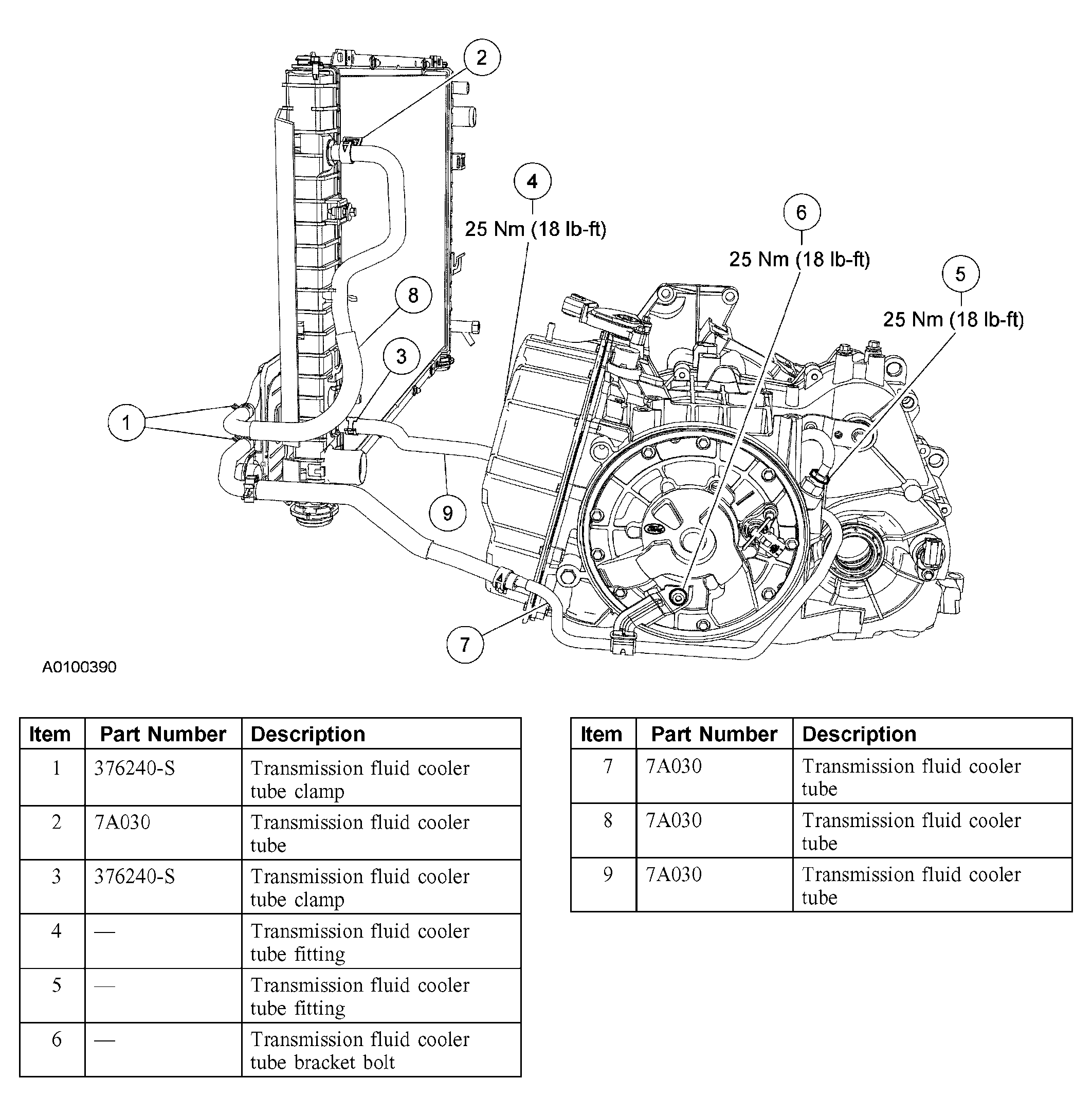

Fig 1: Transmission Fluid Cooler Tubes Assembly With Torque Specifications
G03901557Courtesy of FORD MOTOR CO.
