Cooler Bypass Valve: Material

WARNING: This page is about a different variant/trim than selected.
MATERIAL

Item Specification
Motorcraft MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX MERCON®

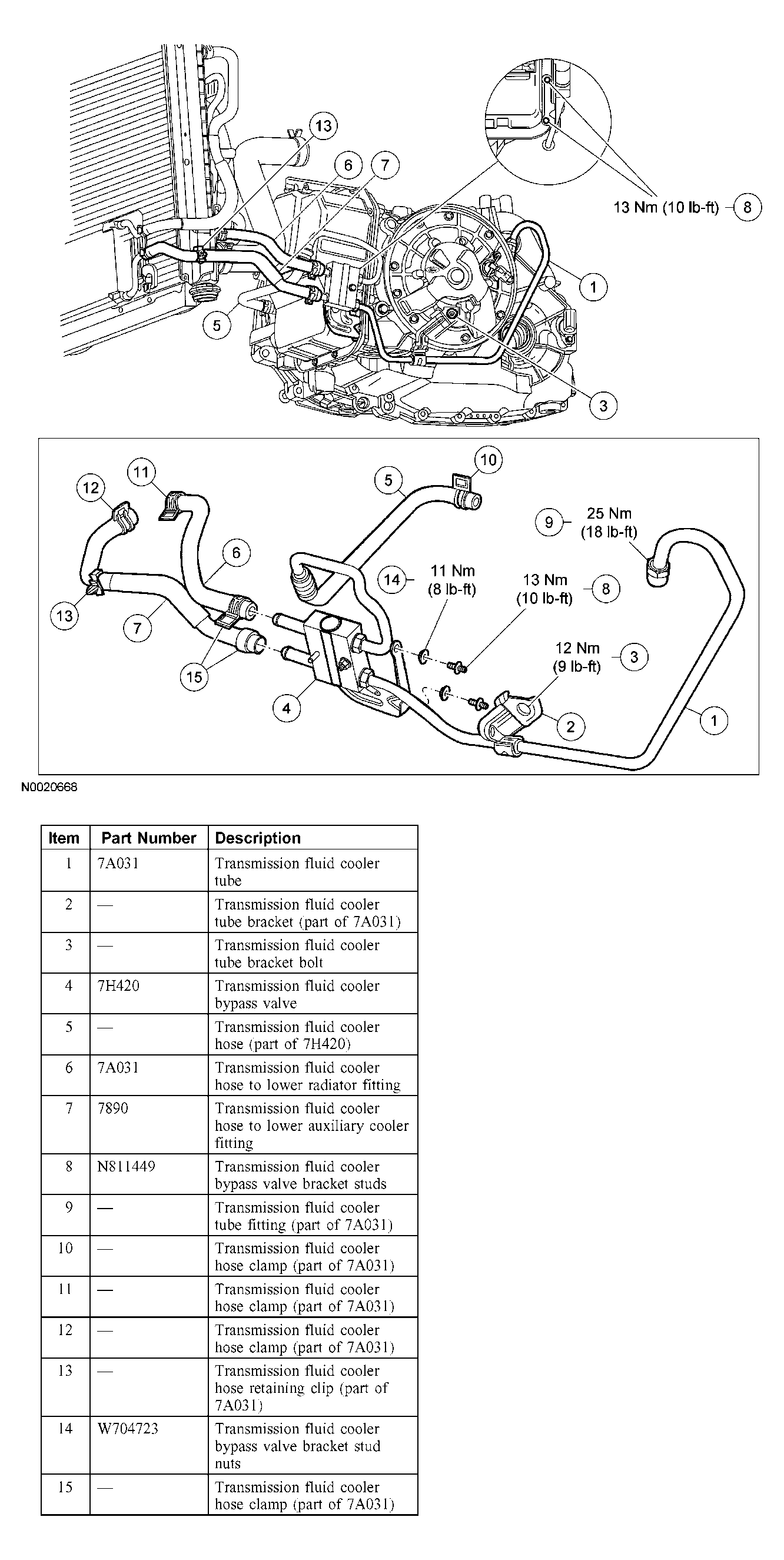

Fig 1: Identifying Cooler Bypass Valve Assembly
G03901565Courtesy of FORD MOTOR CO.
