Selector Lever: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Place the floor shift selector lever in the (D) position.
    Fig 1: Placing Floor Shift Selector Lever in (D) Position
    G03901632Courtesy of FORD MOTOR CO.
  3. Gently pry up to remove the upper shift lever trim ring.
    Fig 2: Identifying Upper Shift Lever Trim Ring
    G03901603Courtesy of FORD MOTOR CO.
    4. NOTE: It may be necessary to apply the parking brake in order to remove the top finish panel.
    NOTE: If necessary, disconnect the electrical connector from the finish panel.
    Fig 3: Removing/Installing Top Finish Panel
    G03901614Courtesy of FORD MOTOR CO.
  4. Remove the top finish panel.
  5. Remove the shift cable from the gearshift assembly.
    1. Disconnect the shift cable end from the gearshift lever.
    2. Remove the shift cable from the bracket.
      Fig 4: Removing Shift Cable From Bracket
      G03901615Courtesy of FORD MOTOR CO.
  6. Remove the shifter.
    1. Disconnect the electrical connector.
    2. Remove the 4 bolts and remove the shifter.

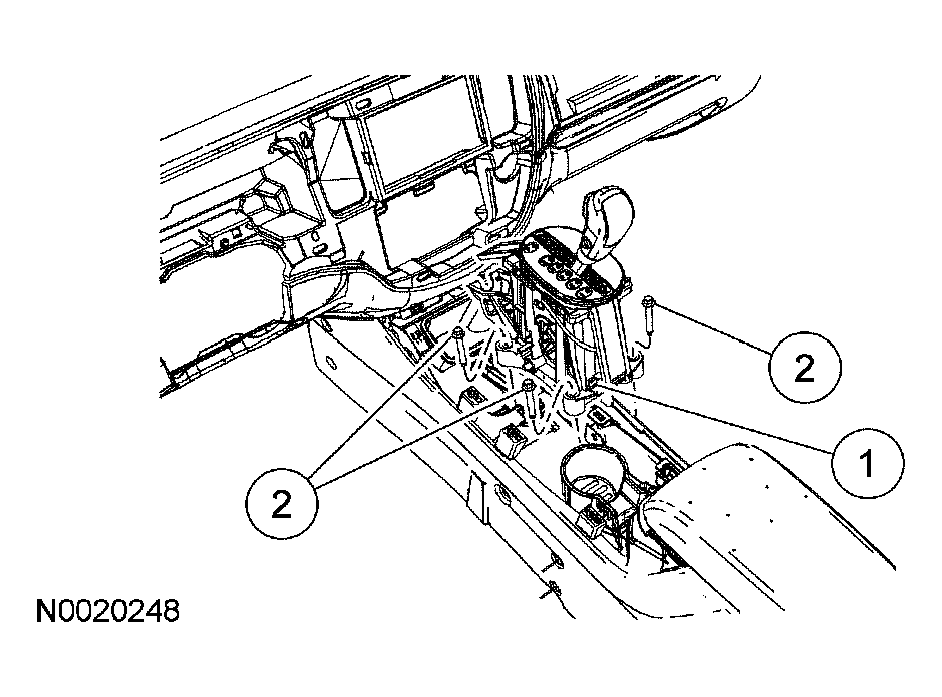

      Fig 5: Removing Bolts And Shifter
      G03901616Courtesy of FORD MOTOR CO.
