Selector Lever Bezel: Removal

WARNING: This page is about a different variant/trim than selected.

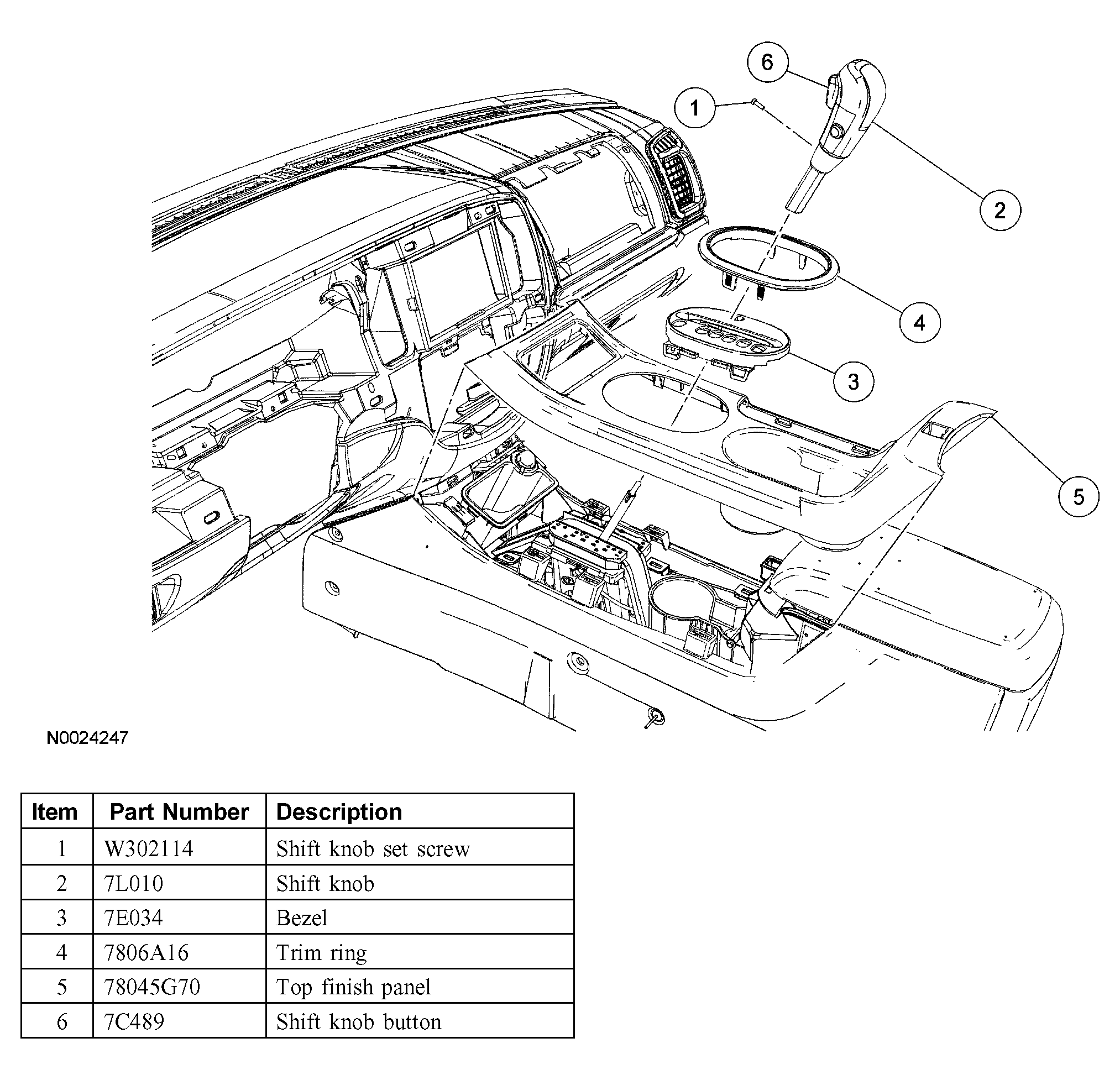

Fig 1: Removing/Installing Selector Lever Bezel

Courtesy of FORD MOTOR CO.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Place the floor shift selector lever in the (D) position.

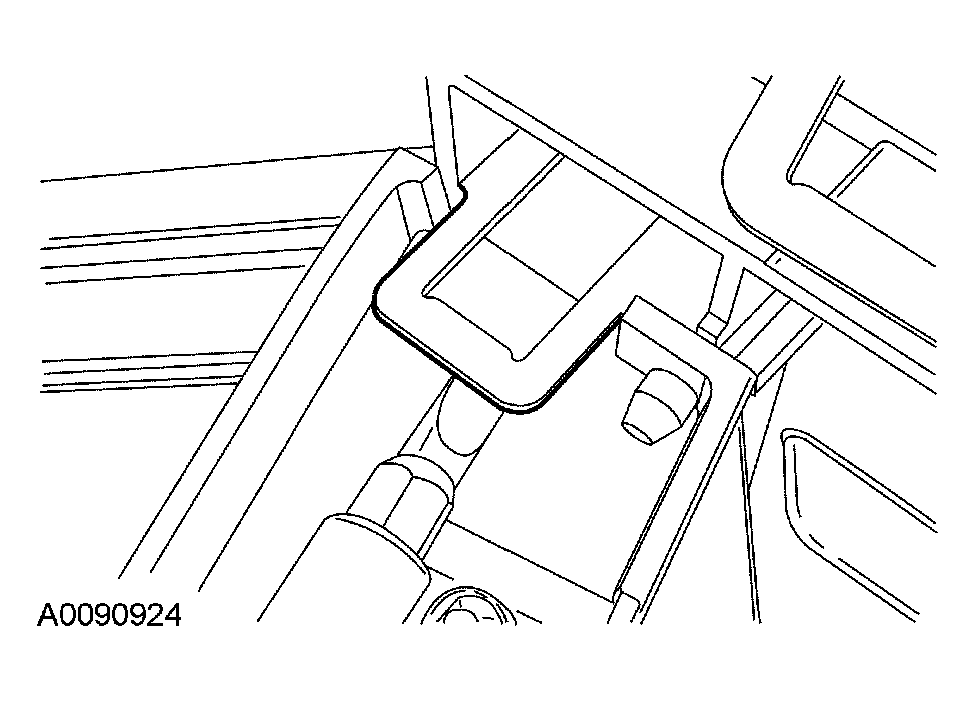

Fig 2: Placing Floor Shift Selector Lever in (D) Position
Courtesy of FORD MOTOR CO.
Gently pry up to remove the upper shift lever trim ring.

Fig 3: Identifying Upper Shift Lever Trim Ring
Courtesy of FORD MOTOR CO.
Remove the top finish panel.

Fig 4: Removing/Installing Top Finish Panel
Courtesy of FORD MOTOR CO.
Remove the set screw.

Fig 5: Locating Set Screw
Courtesy of FORD MOTOR CO.

CAUTION: Make sure that the plastic straw inside of the lever does not come out.

Fig 6: Removing Knob And Wiring

Courtesy of FORD MOTOR CO.

Remove the knob and wiring by pulling straight up on the knob.
Carefully pry up the 4 bezel clips and remove the bezel.

Fig 7: Removing Bezel
Courtesy of FORD MOTOR CO.
Remove the gearshift bezel.

Fig 8: Removing Gearshift Bezel
Courtesy of FORD MOTOR CO.
