Coolant Pump Belt: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Remove the bolts and the RH splash shield.
  3. Remove the 2 nuts and the coolant belt pump shield.
  4. Cut and remove the water pump belt.
    • Discard the belt.

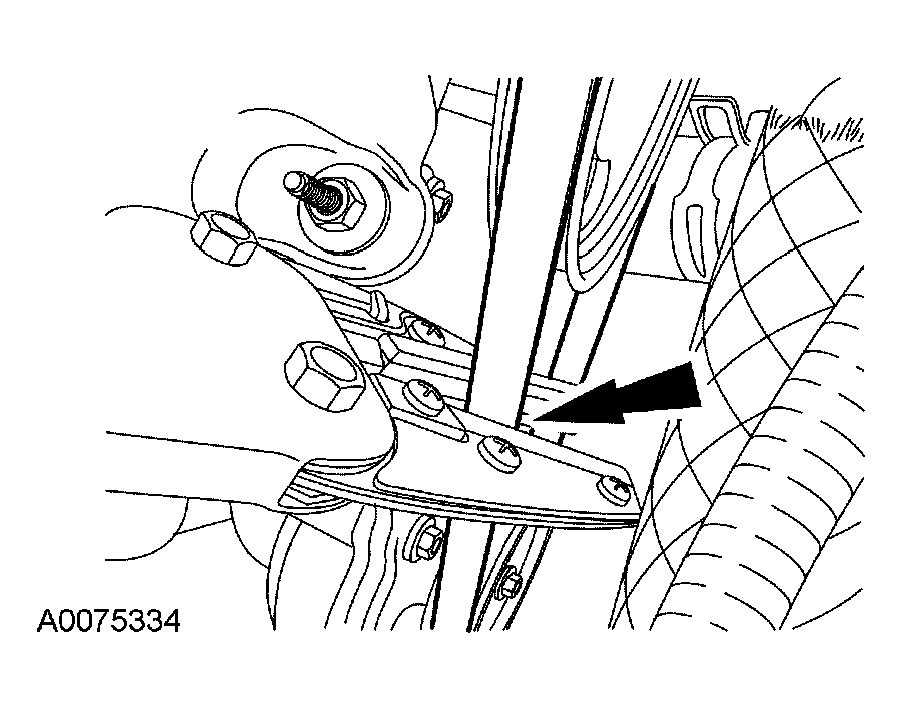

      Fig 1: Removing Coolant Belt Pump Shield
      G03898473Courtesy of FORD MOTOR CO.
