Section 22 (Engine Cooling System Specifications & Drive Belt Routing - 3.0L (4V))
>>
Removal And Installation
>>
Coolant Pump Belt
>>
Notes
Coolant Pump Belt: Notes
WARNING:
This page is about a different variant/trim than selected.

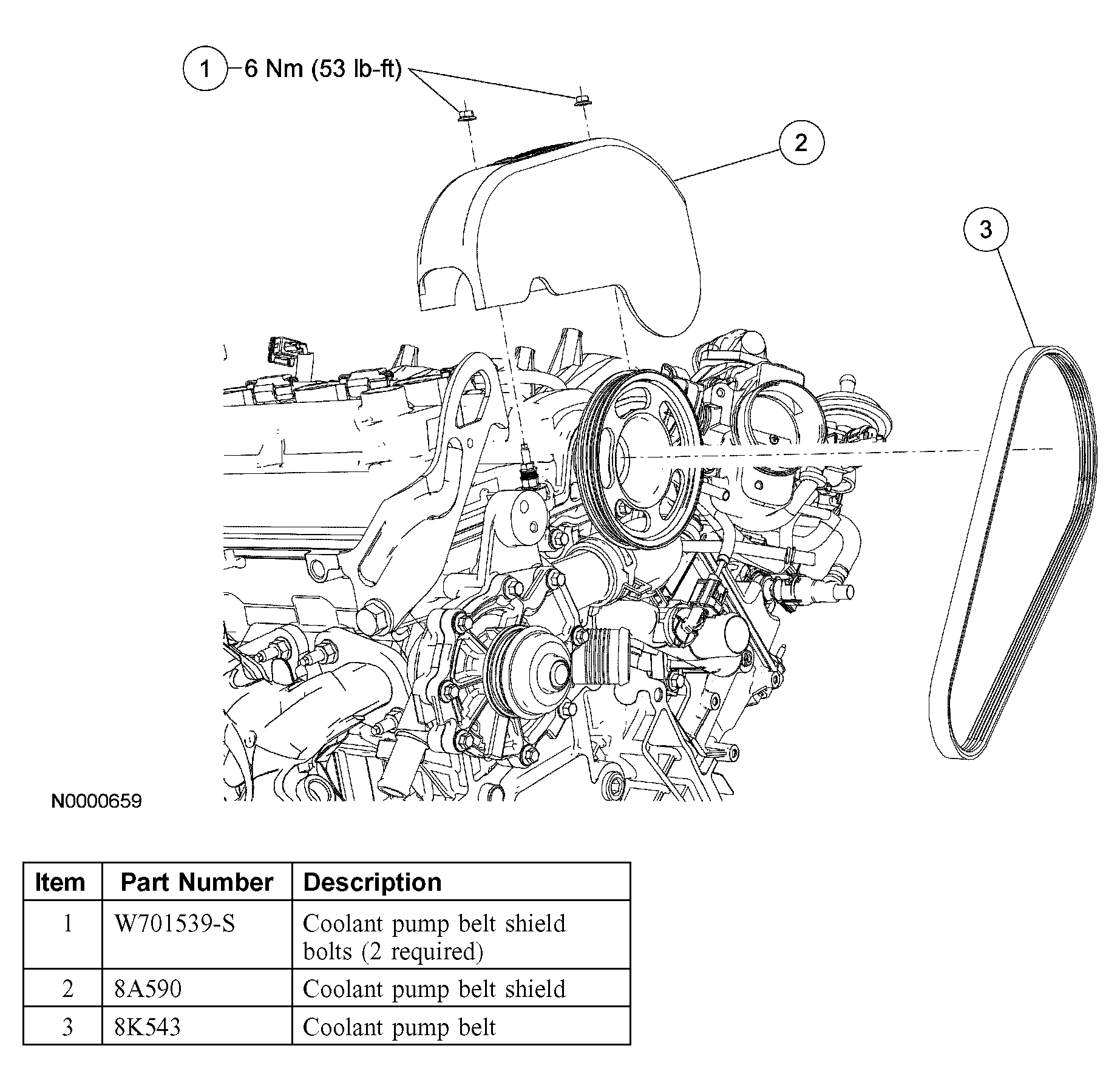

Fig 1: Removing Coolant Pump Belt With Torque Specifications
Courtesy of FORD MOTOR CO.
