Removal and Installation

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Remove the bolts and the RH splash shield.
    • To install, tighten to 7 Nm (62 lb-in).
  3. Using a suitable belt tensioner release tool, rotate the accessory drive belt tensioner counterclockwise and remove the accessory drive belt.
    4. NOTE: Refer to the illustration for correct drive belt routing.

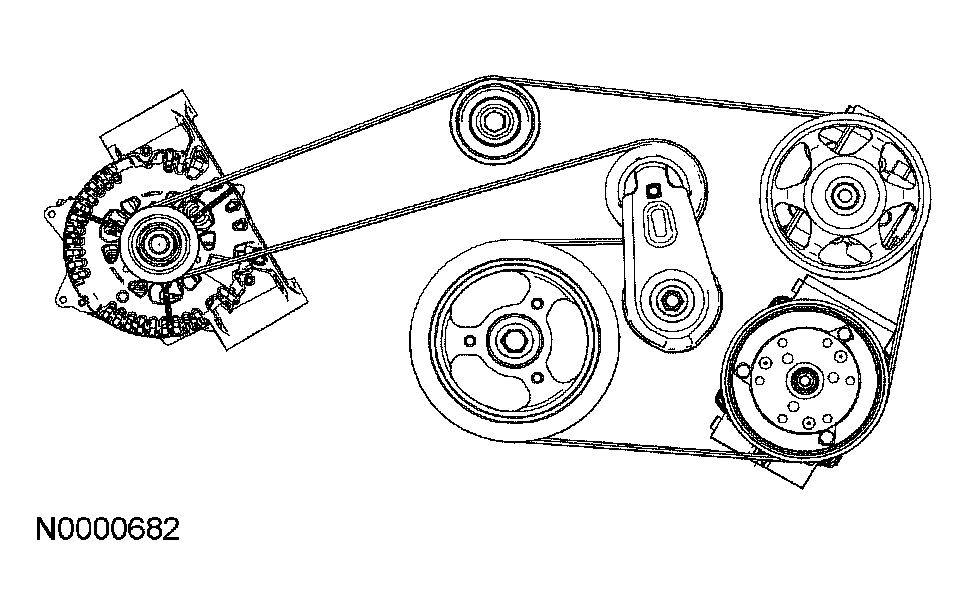

    Fig 1: Removing Accessory Drive Belt
    G03900405Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
