Spark Plugs: Installation

WARNING: This page is about a different variant/trim than selected.

    Both sides

  1. Inspect the spark plugs.

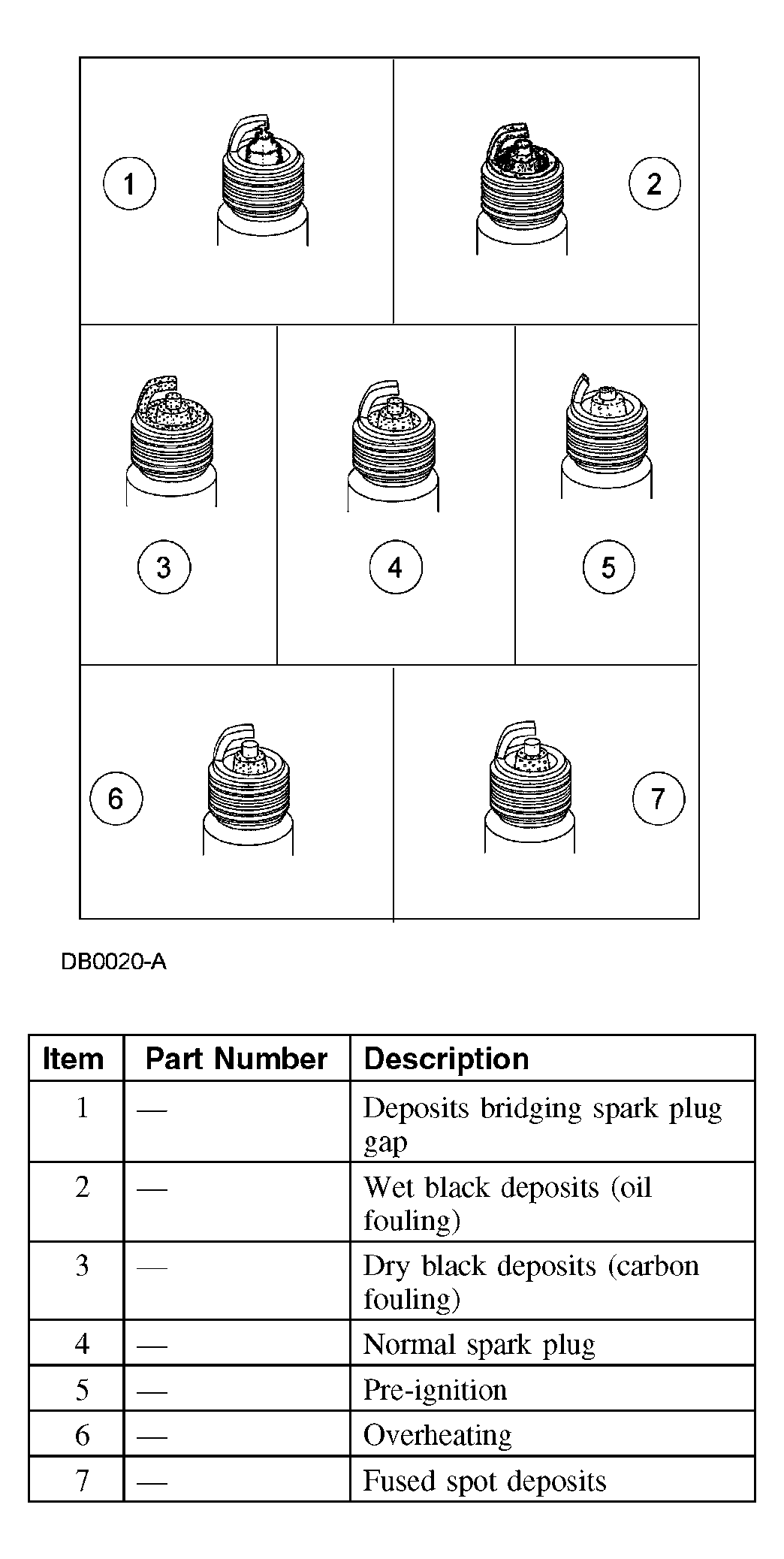

    Fig 1: Identifying Spark Plugs
    G03900439Courtesy of FORD MOTOR CO.
  2. Adjust the spark plug gap as necessary.
    Fig 2: Adjusting Spark Plug Gap
    G03900440Courtesy of FORD MOTOR CO.
  3. Install the spark plugs.
    • Tighten to 15 Nm (11 lb-ft).
    4. NOTE: Apply a small amount of dielectric grease to the inside of the ignition coil boots before attaching to the spark plugs.
  4. Install the ignition coils and bolts.
    • Tighten to 15 Nm (11 lb-ft).
  5. Connect the ignition coil electrical connectors.

    6. RH side

  6. Install the upper intake manifold. For additional information, refer to ENGINE - 3.0L (4V) .

    7. Both sides

  7. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
