Removal and Installation

WARNING: This page is about a different variant/trim than selected.

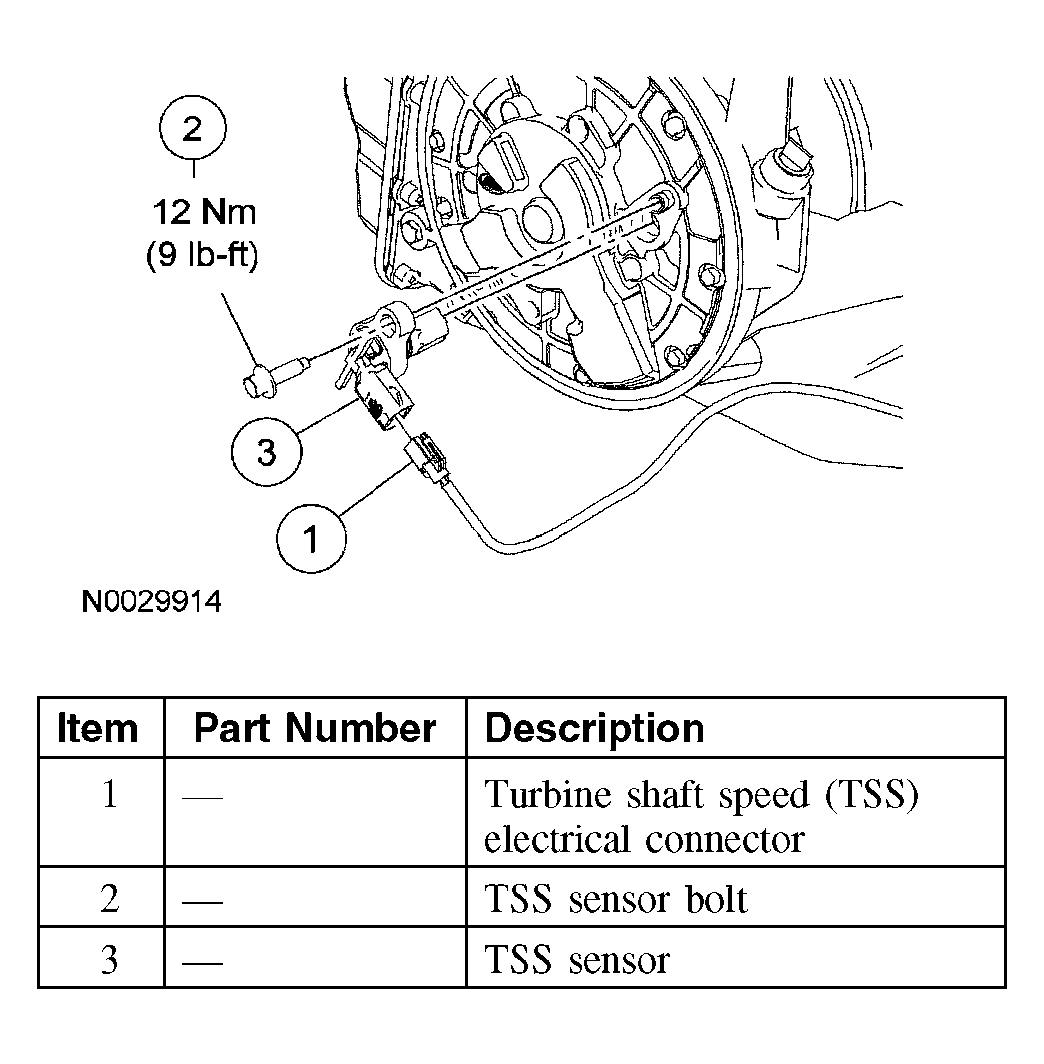

Fig 1: Removing/Installing Turbine Shaft Speed (TSS) Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Remove the 7 retainers and the LH splash shield.
- To install, tighten to 10 Nm (89 lb-in).

  Fig 2: Identifying LH Splash Shield And Retainers
  Courtesy of FORD MOTOR CO.
Remove the turbine shaft speed (TSS) sensor
1. Disconnect the TSS electrical connector.
2. Remove the TSS sensor bolt.
3. Remove the TSS sensor.
  - To install, tighten to 12 Nm (9 lb-ft).

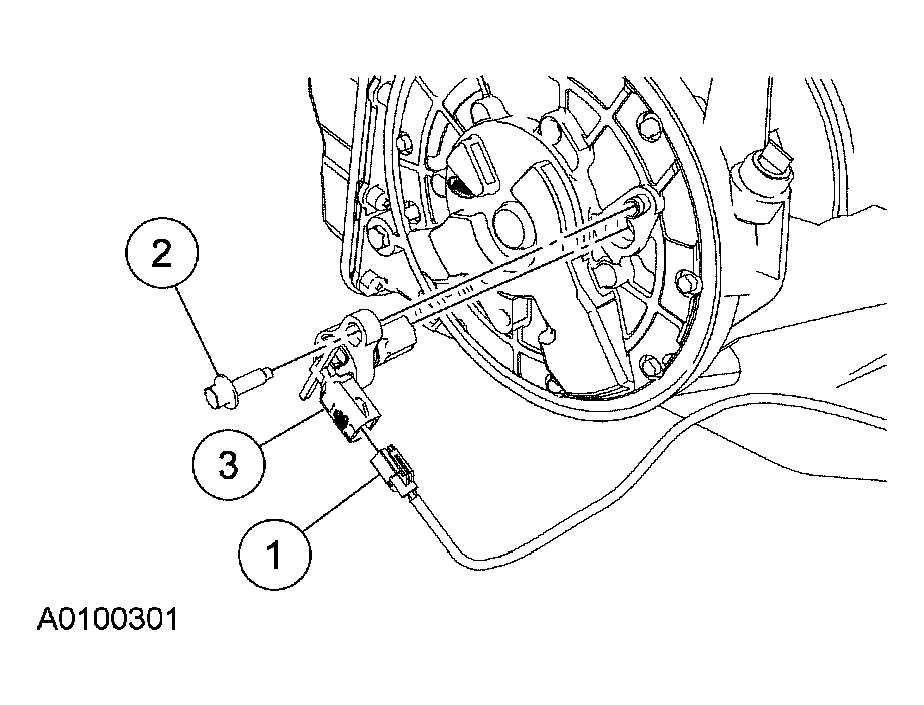

    Fig 3: Removing Turbine Shaft Speed (TSS) Sensor
    Courtesy of FORD MOTOR CO.

NOTE: When installing the sensor, lubricate the O-ring seal with clean transmission fluid.

Fig 4: Inspecting O-Ring Seal

Courtesy of FORD MOTOR CO.

Inspect the O-ring seal for nicks or cuts. Install a new O-ring seal as necessary.
To install, reverse the removal procedure.
