Transmission Range (TR) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

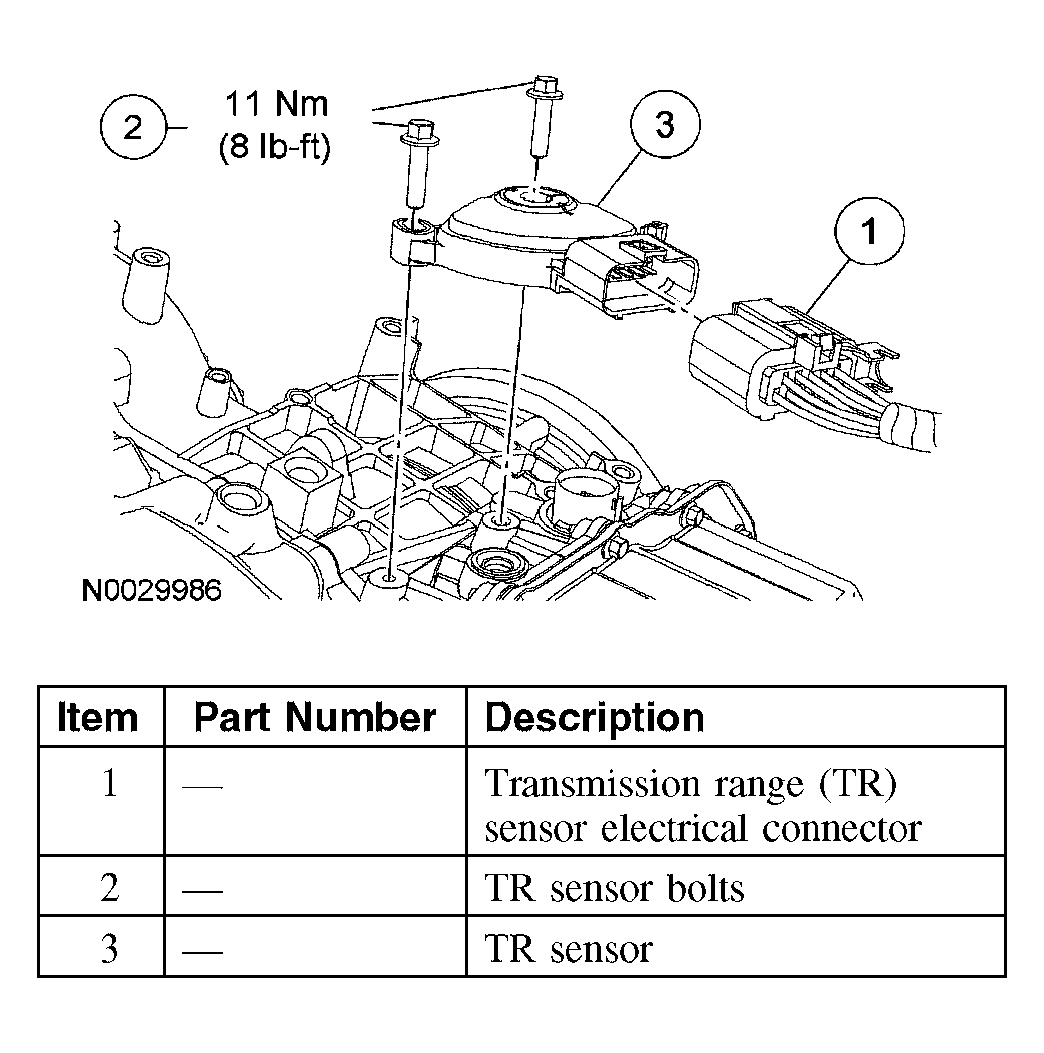

Fig 1: Removing/Installing Transmission Range (TR) Sensor With Torque Specifications
G03900696Courtesy of FORD MOTOR CO.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Remove the battery and tray. For additional information, refer to CHARGING SYSTEM - GENERAL INFORMATION .
  3. Remove the transmission range (TR) sensor.
    1. Disconnect the TR sensor electrical connector.
    2. Remove the TR sensor retaining bolts.
    3. Remove the TR sensor.

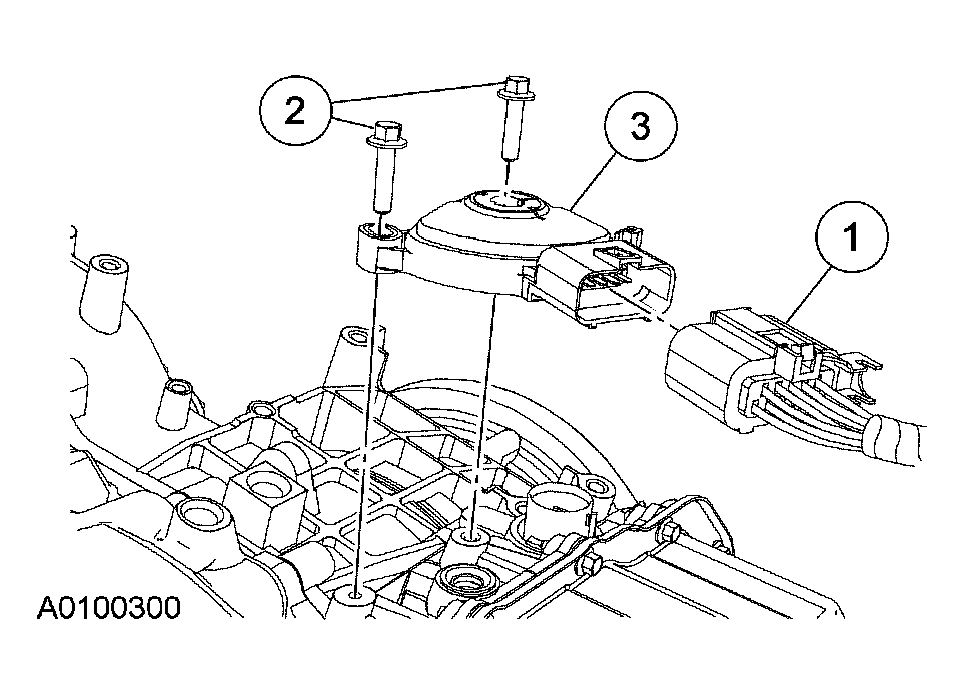

      Fig 2: Removing Transmission Range (TR) Sensor
      G03900697Courtesy of FORD MOTOR CO.
