Transmission Range (TR) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Make sure the transaxle is in the NEUTRAL position.

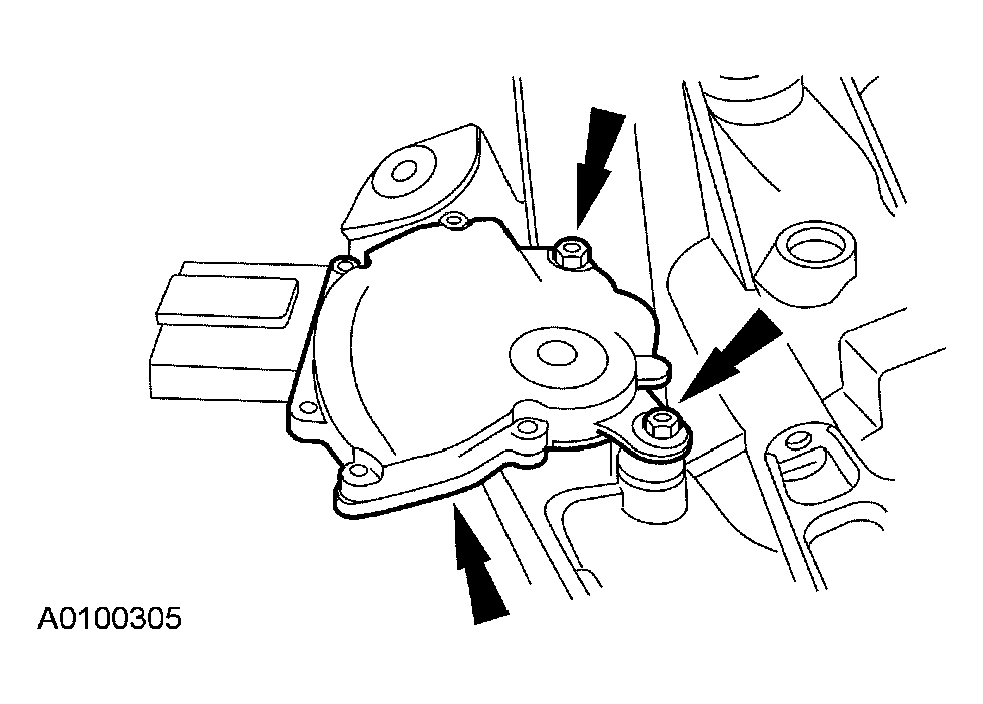

Fig 1: Installing TR Sensor And Bolts

Courtesy of FORD MOTOR CO.

Install the TR sensor and loosely install the bolts.
Using the special tool, align the TR sensor and tighten the bolts.
- Tighten to 11 Nm (8 lb-ft).

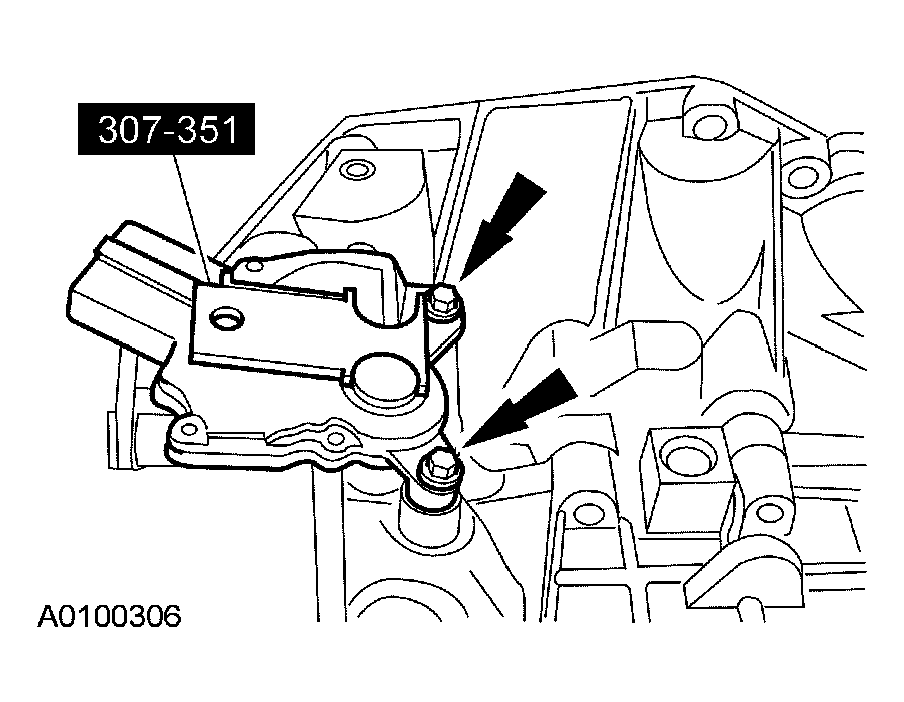

  Fig 2: Aligning TR Sensor
  Courtesy of FORD MOTOR CO.
Connect the TR sensor electrical connector.

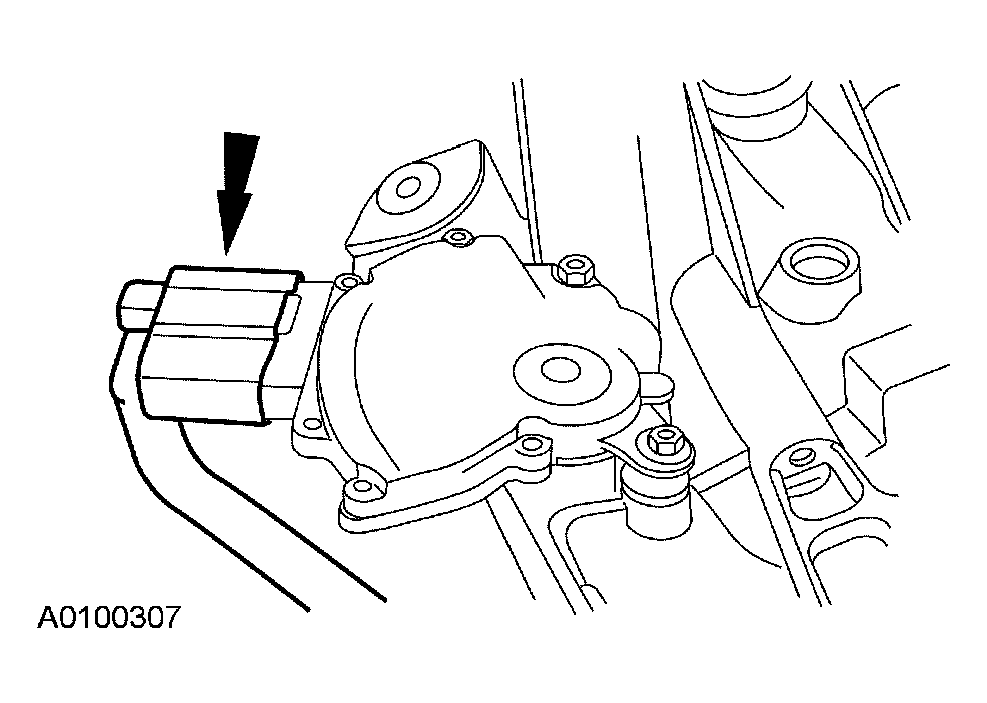

Fig 3: Connecting TR Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Install the battery and tray. For additional information, refer to CHARGING SYSTEM - GENERAL INFORMATION .
Check the correct operation. The engine should start only in PARK or NEUTRAL. The reverse lamps should illuminate in the REVERSE position.
