Transaxle Support Insulator - Lower, Front: Removal

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Remove the LH splash shield.

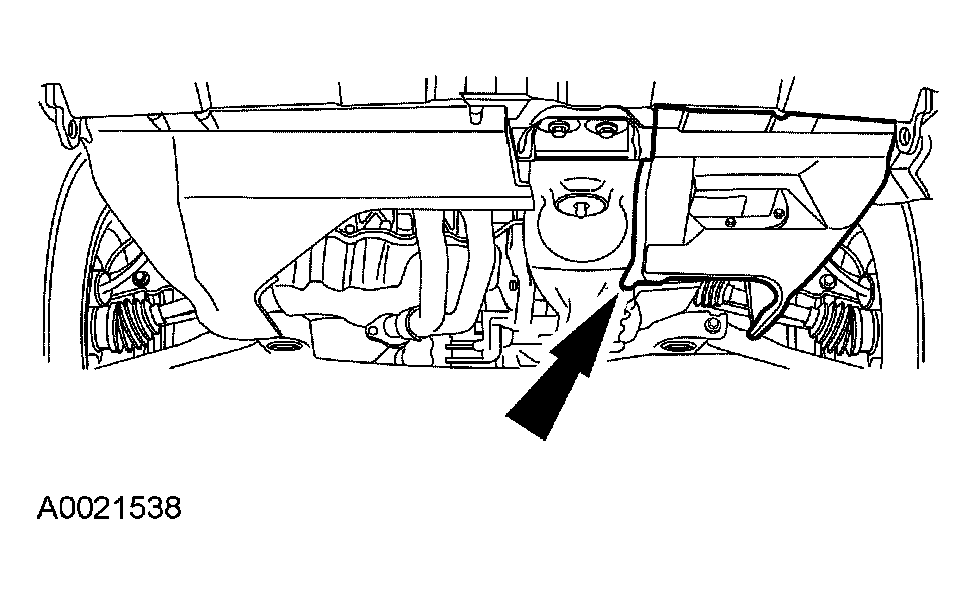

Fig 1: Removing LH Splash Shield
Courtesy of FORD MOTOR CO.
Remove the 7 retainers and the LH splash shield.

Fig 2: Identifying LH Splash Shield And Retainers
Courtesy of FORD MOTOR CO.
Remove the 4 bolts and the cross brace.

Fig 3: Removing Bolts And Cross Brace
Courtesy of FORD MOTOR CO.
Remove the bolt for the mount and the 2 bolts for the brace.

Fig 4: Identifying Front Roll Restrictor Bolt And Bolts For Engine Support Crossmember
Courtesy of FORD MOTOR CO.
Remove the rear bolt and remove the brace.

Fig 5: Identifying Cross Brace And Rear Nut
Courtesy of FORD MOTOR CO.
Remove the 2 bolts from the mount and remove the mount.
