Transaxle Support Insulator - Lower, Front: Notes

WARNING: This page is about a different variant/trim than selected.

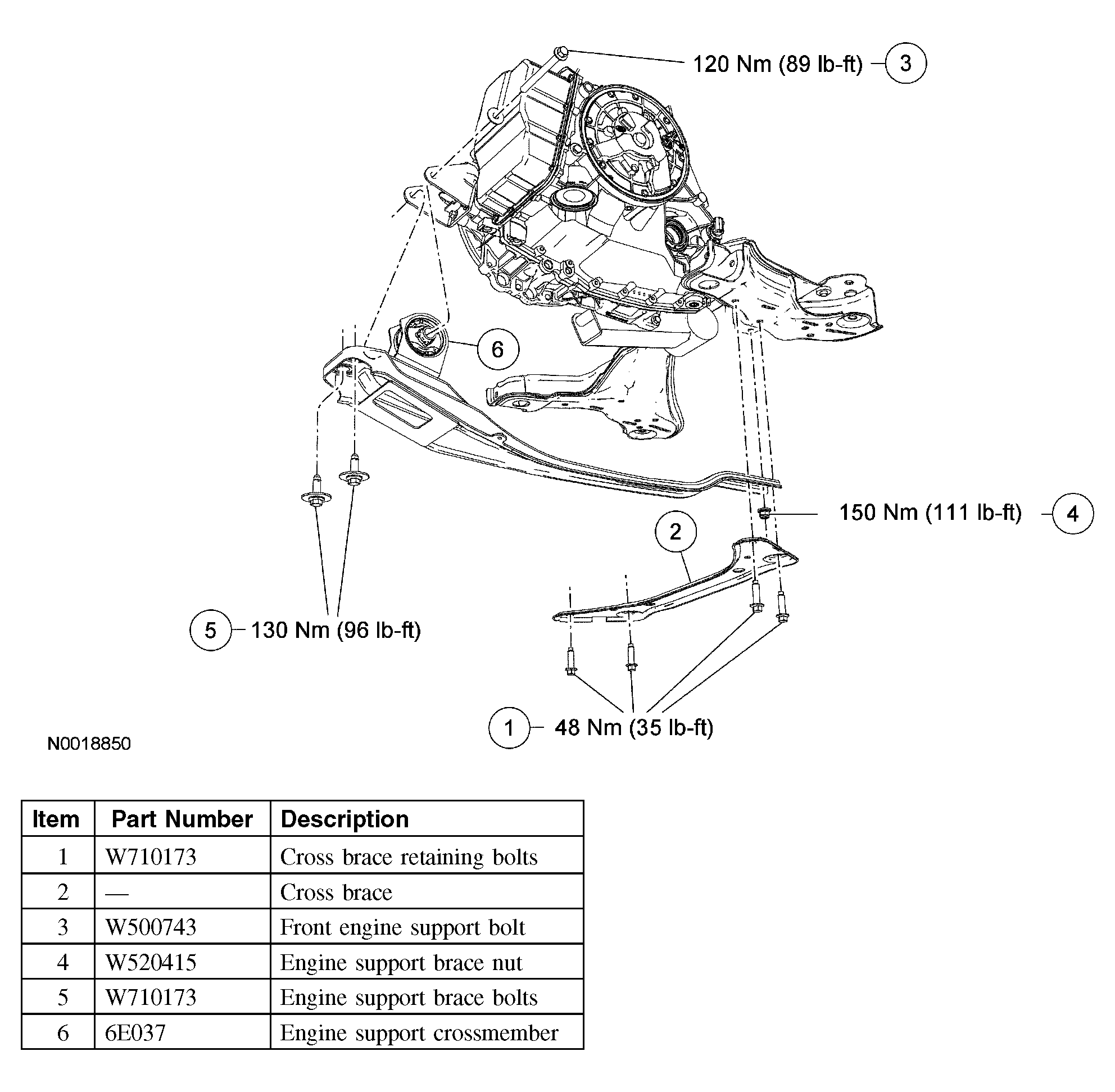

Fig 1: Transaxle Support Insulator Replacement Components -- Lower, Front With Torque Specifications
G03900710Courtesy of FORD MOTOR CO.
