Differential Seals - RH: Removal

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Remove the transaxle drain plug and drain the transmission fluid.

Fig 1: Identifying Transaxle Drain Plug
Courtesy of FORD MOTOR CO.
Remove the RH halfshaft and intermediate shaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .
If equipped, remove the power takeoff (PTO). For additional information, refer to TRANSFER CASE-POWER TRANSFER UNIT (PTU) .

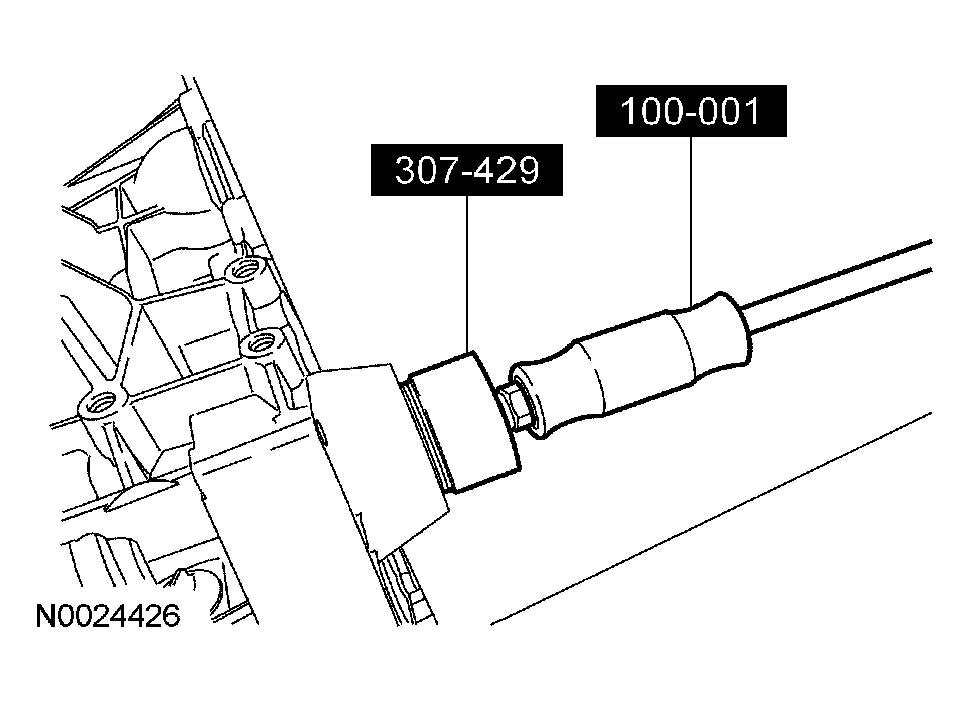

If the vehicle is equipped with a PTO, use the special tools to remove the RH differential seal.

Fig 2: Removing RH Differential Seal
Courtesy of FORD MOTOR CO.

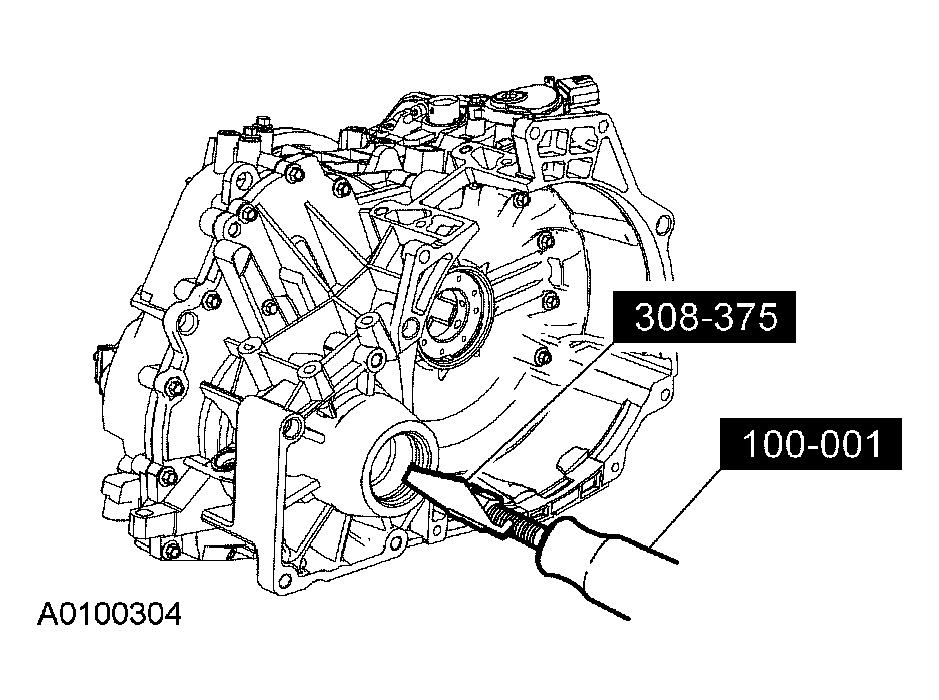

If the vehicle is not equipped with a PTO, use the special tools to remove the RH differential seal.

Fig 3: Removing RH Differential Seal
Courtesy of FORD MOTOR CO.
