Differential Seals - LH: Removal

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Remove the transaxle drain plug and drain the fluid.

Fig 1: Identifying Transaxle Drain Plug
Courtesy of FORD MOTOR CO.
Remove the LH halfshaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .
Using the special tools, remove and discard the LH differential seal.

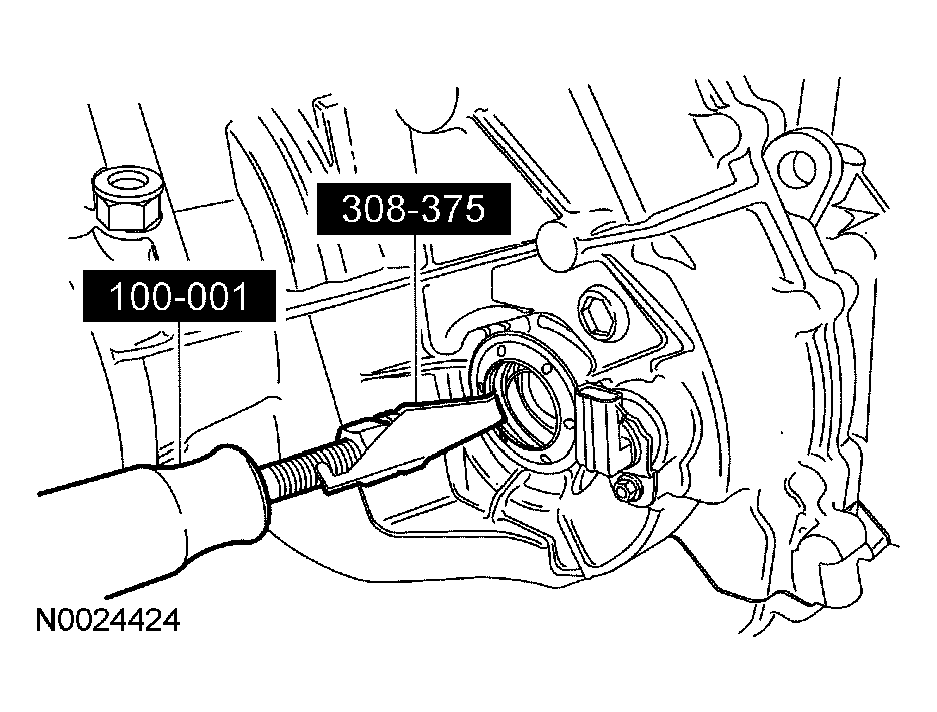

Fig 2: Removing LH Differential Seal
Courtesy of FORD MOTOR CO.
