Differential Seals - LH: Installation

WARNING: This page is about a different variant/trim than selected.

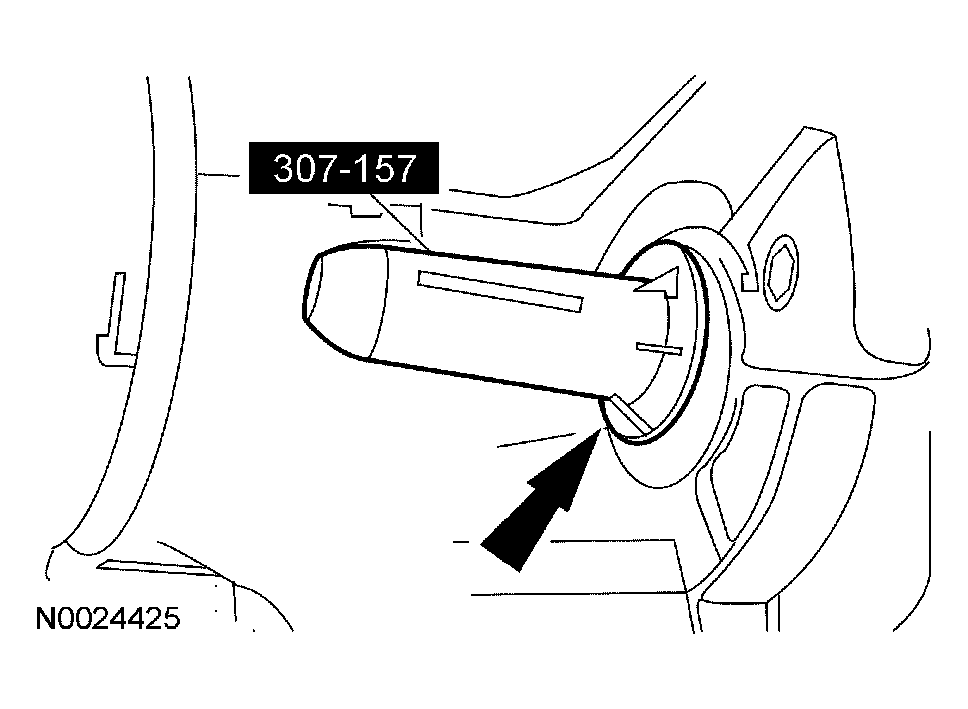

Using the special tool, install the LH differential seal.

Fig 1: Installing LH Differential Seal
Courtesy of FORD MOTOR CO.
Install the LH halfshaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .
Using a small amount of thread sealant on the threads, install the transaxle drain plug.
- Tighten to 25 Nm (18 lb-ft).

  Fig 2: Identifying Transaxle Drain Plug
  Courtesy of FORD MOTOR CO.
Fill the transaxle with clean automatic transmission fluid.
Start the engine and run through all the gears and check fluid level.
