Torque Converter Housing: Assembly

WARNING: This page is about a different variant/trim than selected.

Position a new differential lube tube in the torque converter housing.

Fig 1: Positioning Differential Lube Tube In Torque Converter Housing
Courtesy of FORD MOTOR CO.

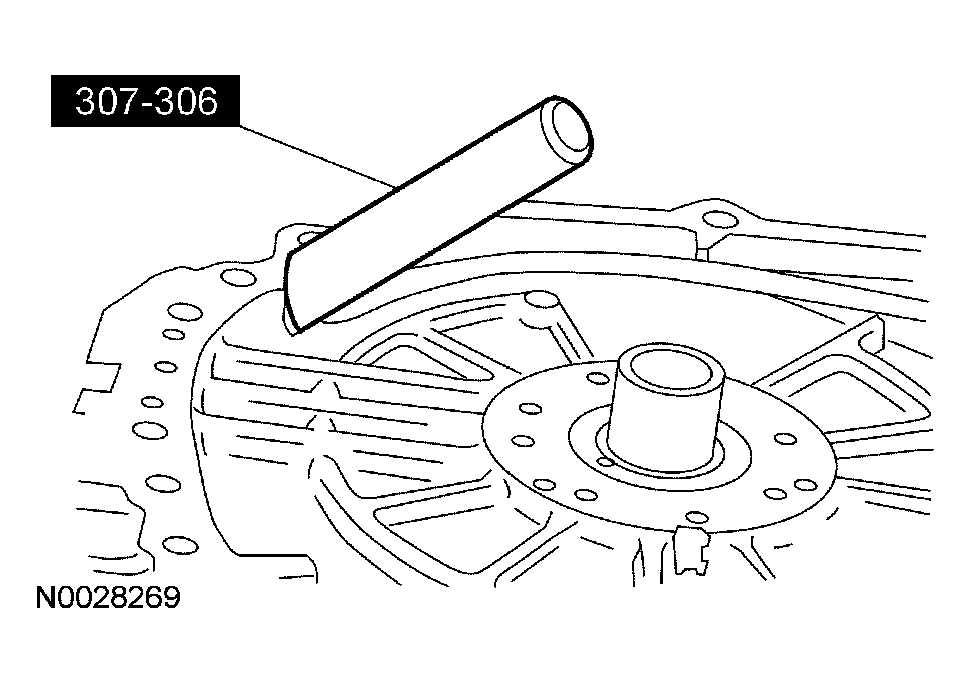

Using the special tool, install the differential lube tube.

Fig 2: Installing Differential Lube Tube
Courtesy of FORD MOTOR CO.
Install the differential lube tube bolt.
- Tighten to 13 Nm (10 lb-ft).

  Fig 3: Installing Differential Lube Tube Bolt
  Courtesy of FORD MOTOR CO.

NOTE: The final drive ring gear is installed with the lug end up.

Fig 4: Installing Final Drive Ring Gear

G03900950

Courtesy of FORD MOTOR CO.

Install the final drive ring gear.
Install the final drive ring gear retaining ring.

Fig 5: Installing Final Drive Ring Gear Retaining Ring
Courtesy of FORD MOTOR CO.
Install the cooler tube fitting.
- Tighten to 48 Nm (35 lb-ft).

  Fig 6: Installing Cooler Tube Fitting
  Courtesy of FORD MOTOR CO.
