Reverse Clutch: Material

WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATION CHART

Item Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) MERCON®

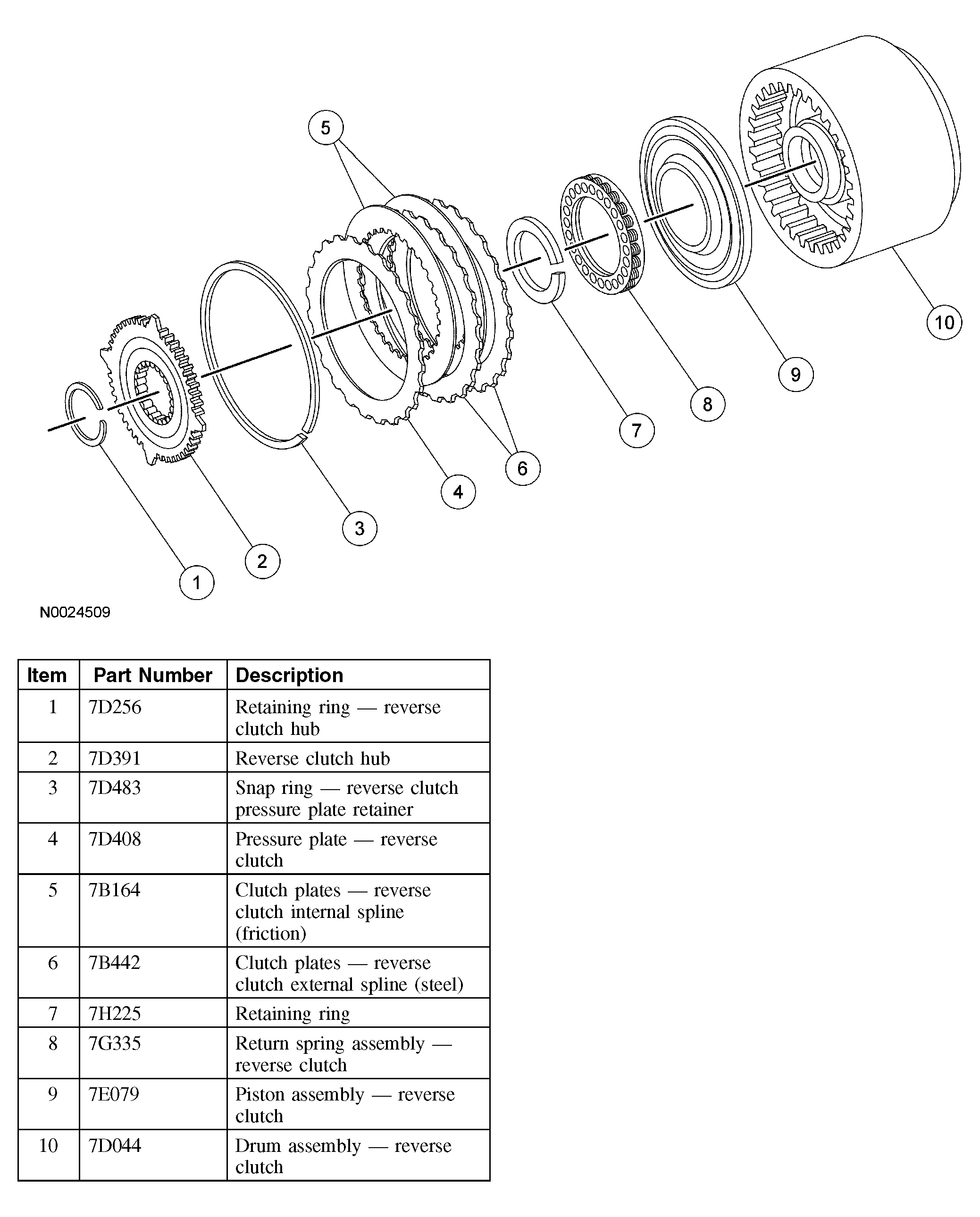

Fig 1: Identifying Reverse Clutch Components
G03901153Courtesy of FORD MOTOR CO.
