Planetary Gearsets And Chain Drive Parts: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Inspect the low/intermediate sun gear assembly for damage.
    • Gear teeth
    • Thrust bearing surfaces
    • Journal surface

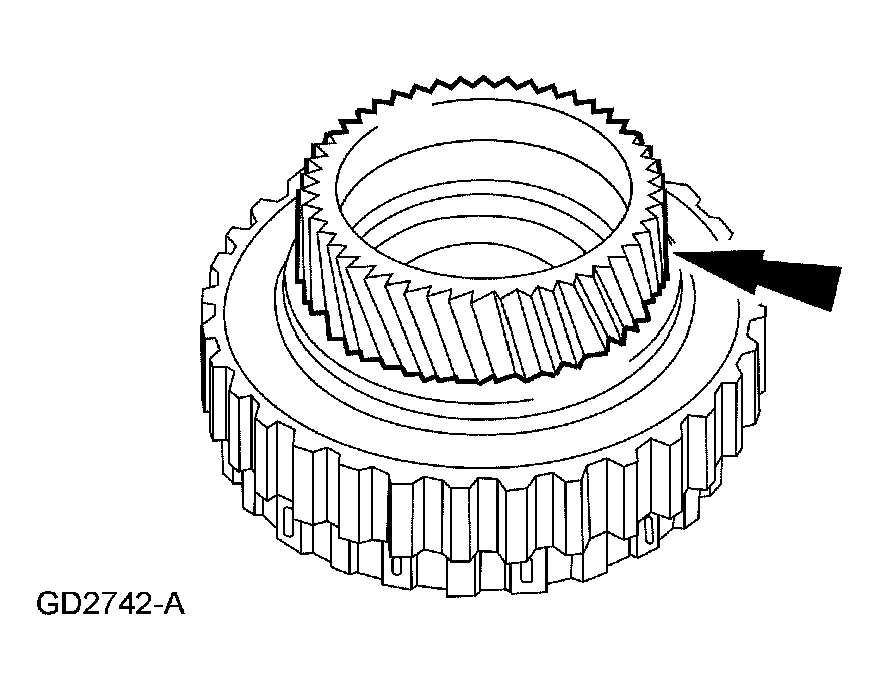

      Fig 1: Inspecting Low/Intermediate Sun Gear Assembly
      G03901165Courtesy of FORD MOTOR CO.
  2. Inspect the low/intermediate carrier assembly.
    • Pinion gear teeth
    • Spline teeth
    • Pinion gear surfaces
    • Bushing surfaces
    • Pinion gear bearings
      Fig 2: Inspecting Low/Intermediate Carrier Assembly
      G03901166Courtesy of FORD MOTOR CO.
  3. Inspect the low/intermediate carrier assembly end play.
    • Use a feeler gauge to measure end play.
      • If end play is out of specification, install a new assembly.

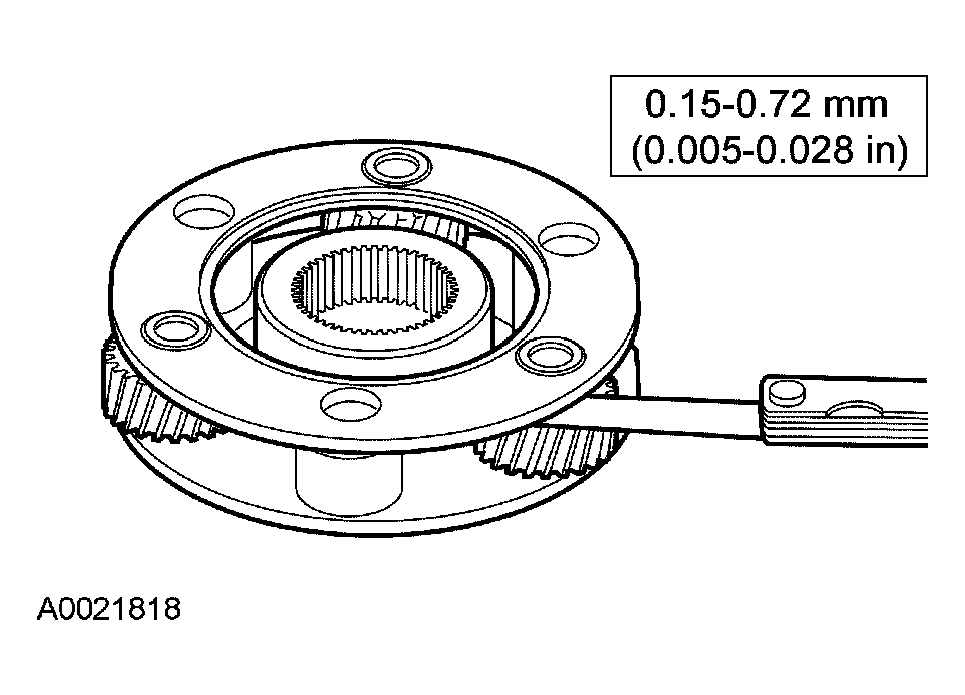

        Fig 3: Inspecting Low/Intermediate Carrier Assembly End Play
        G03901167Courtesy of FORD MOTOR CO.
  4. Inspect the low/intermediate ring gear.
    • Gear teeth
    • Spline teeth
    • Thrust bearing surfaces
    • Journal surface
    • Lug teeth
      Fig 4: Inspecting Low/Intermediate Ring Gear
      G03901168Courtesy of FORD MOTOR CO.
  5. Inspect the reverse/overdrive sun gear and shell assembly for damage or wear.
    • Gear teeth
    • Lug teeth
    • Thrust bearing surfaces
    • Bushing surface
      Fig 5: Inspecting Reverse/Overdrive Sun Gear And Shell Assembly
      G03901169Courtesy of FORD MOTOR CO.
  6. Inspect the reverse/overdrive carrier assembly.
    • Pinion gear teeth
    • Clutch plate spline teeth
    • Pinion gear bearings
    • Thrust bearing surfaces
    • Bushing surfaces
    • No. 8 thrust bearing captured between the pinions and carrier

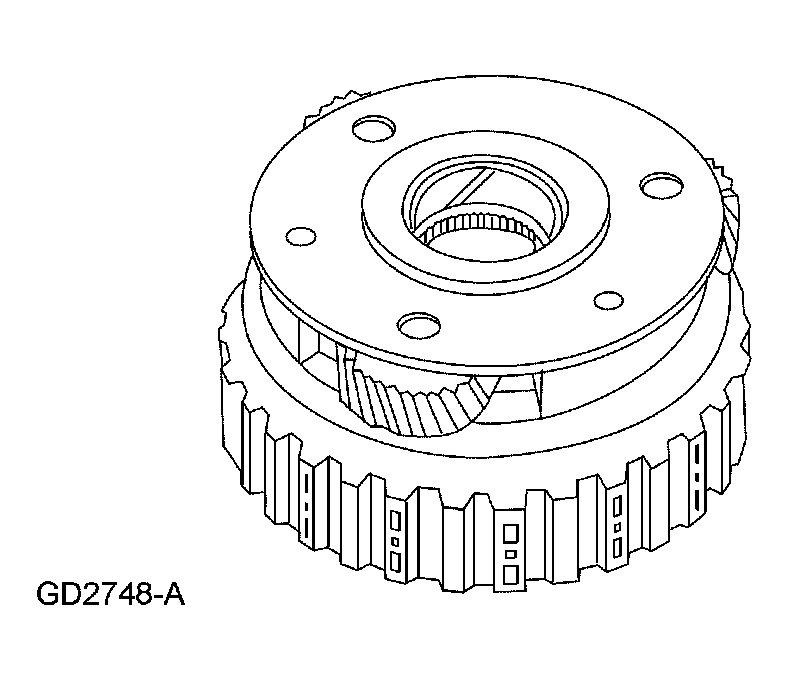

      Fig 6: Inspecting Reverse/Overdrive Carrier Assembly
      G03901170Courtesy of FORD MOTOR CO.
  7. Inspect the reverse/overdrive carrier assembly end play.
    • Use feeler gauge to measure end play.
      • If end play is out of specification, install a new assembly.

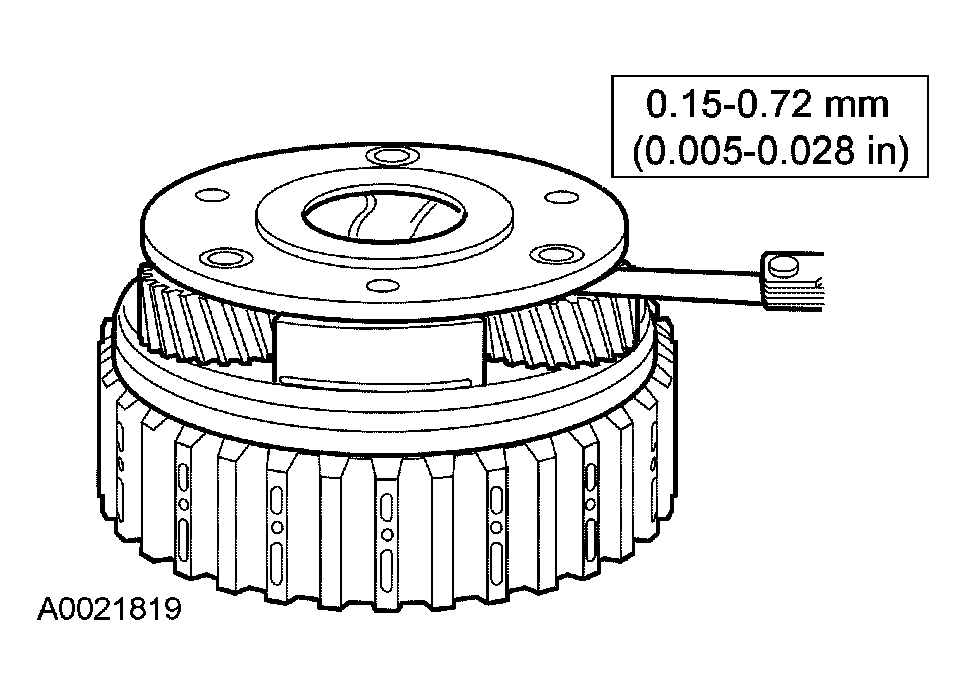

        Fig 7: Inspecting Reverse/Overdrive Carrier Assembly End Play
        G03901171Courtesy of FORD MOTOR CO.
  8. Inspect the reverse/overdrive ring gear.
    • Gear teeth
    • Spline teeth
    • Drive sprocket teeth
    • Thrust bearing surfaces
    • Journal surface
    • Bearings

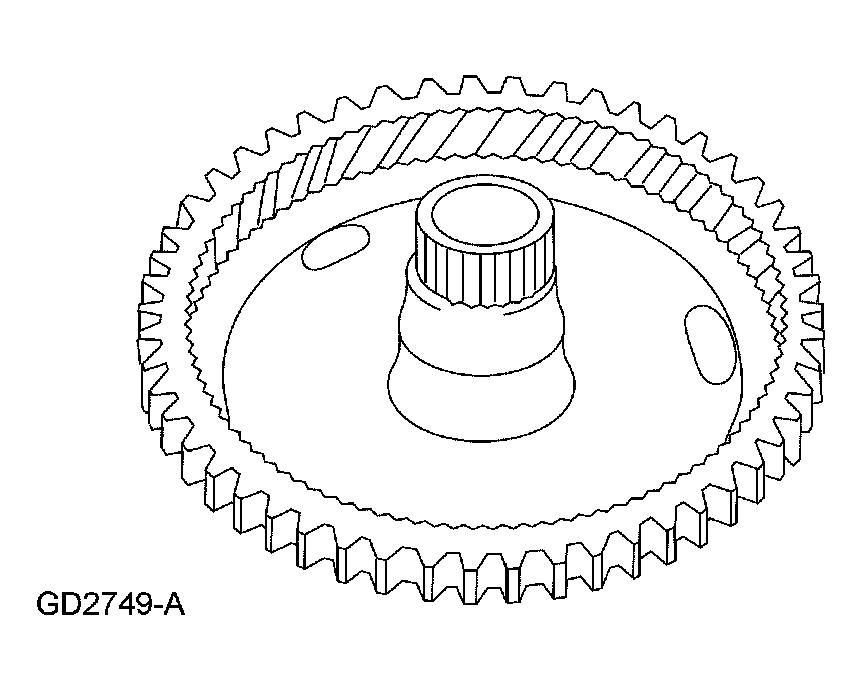

      Fig 8: Inspecting Reverse/Overdrive Ring Gear
      G03901172Courtesy of FORD MOTOR CO.
  9. Inspect the driven sprocket assembly.
    • Gear teeth
    • Parking gear lug teeth
    • Driven sprocket teeth
    • Thrust bearing surfaces
    • Bearing surfaces
    • Rivets
    • Bushing surfaces
    • Lubrication holes

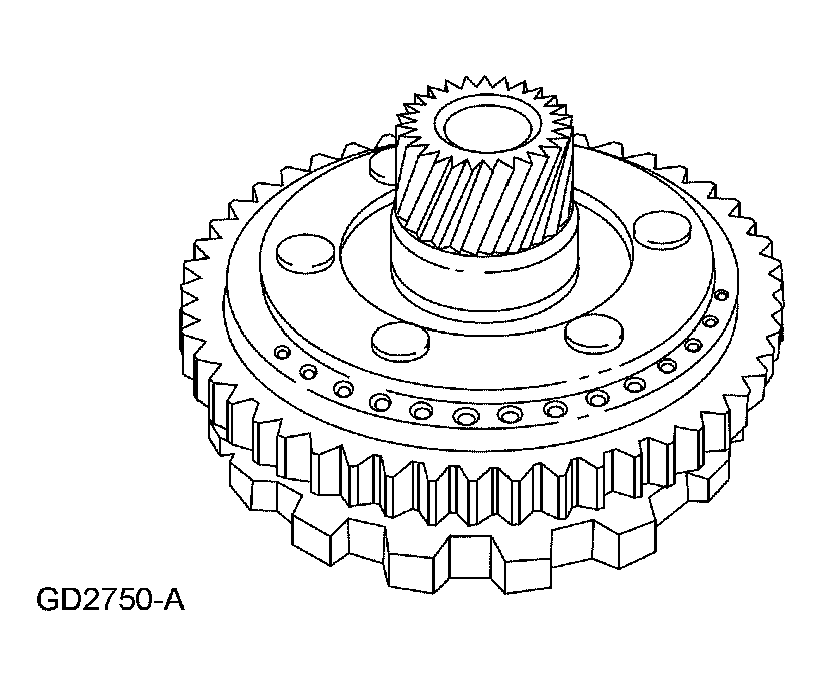

      Fig 9: Inspecting Driven Sprocket Assembly
      G03901173Courtesy of FORD MOTOR CO.
  10. Inspect the drive chain.
    • Check the drive chain for wear, stretching or tightness of the chain links.
    • The chain must move freely.
      Fig 10: Inspecting Drive Chain
      G03901174Courtesy of FORD MOTOR CO.
