Special Tool(s)

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS DESCRIPTION

G03901060
 Alignment Pins, Valve Body 307-299 (T94P-77000-N)

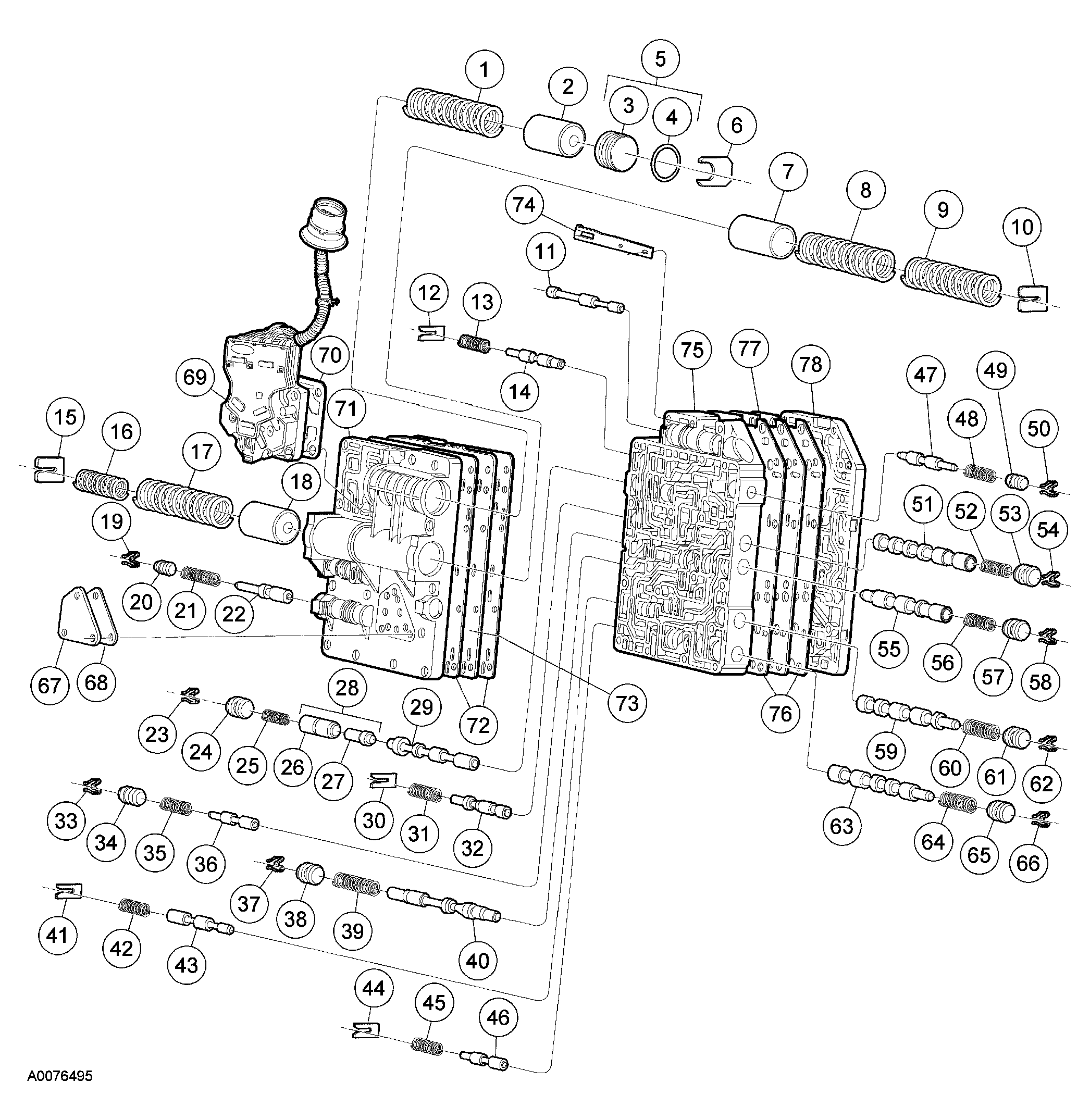

Fig 1: Identifying Automatic Transaxle/Transmission - CD4E Components
G03901061Courtesy of FORD MOTOR CO.

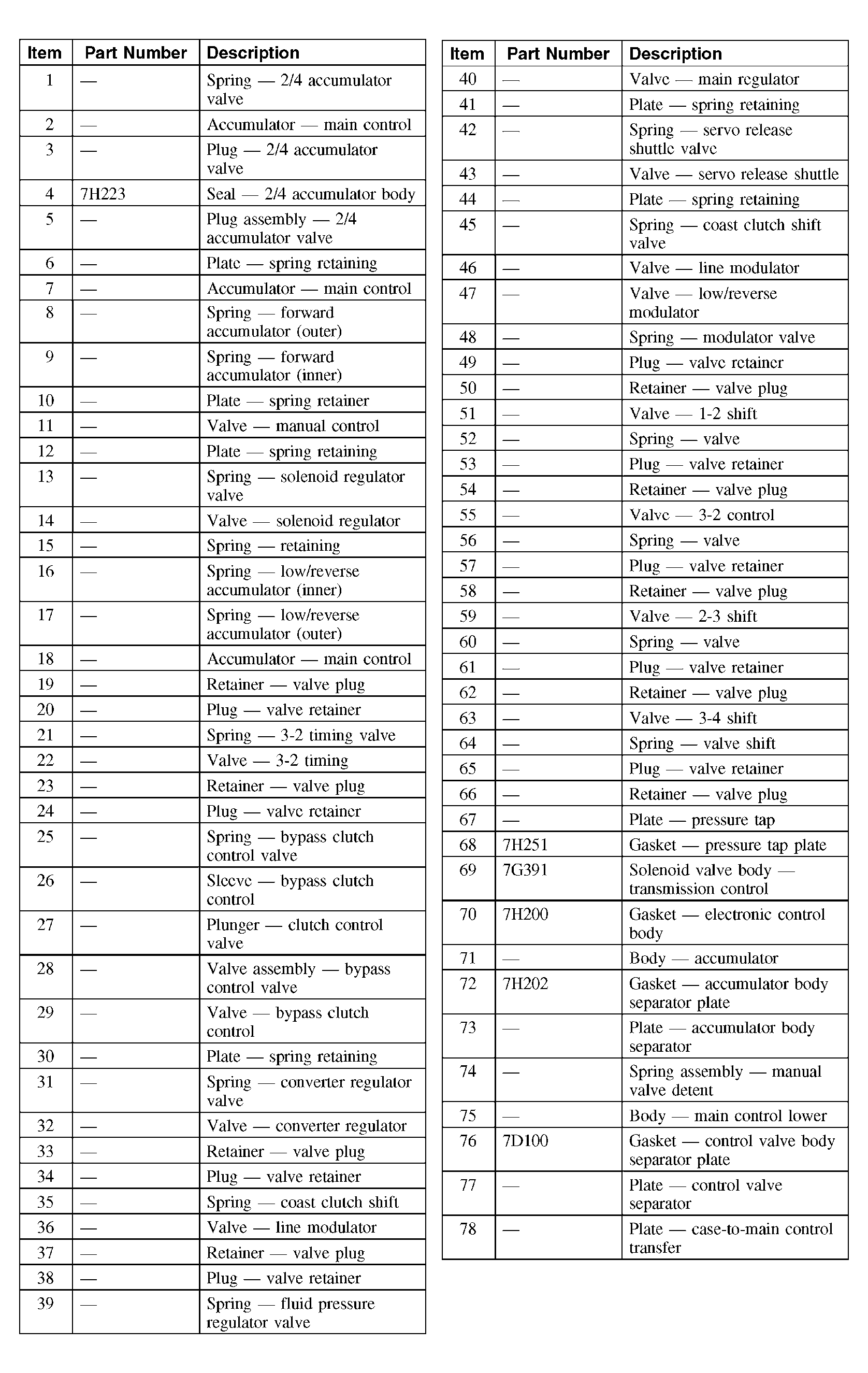

Fig 2: Automatic Transaxle/Transmission - CD4E Components Legend
G03901062Courtesy of FORD MOTOR CO.
