Low/Reverse Piston: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove and discard the low/reverse clutch piston outer seal on the low/reverse clutch piston.

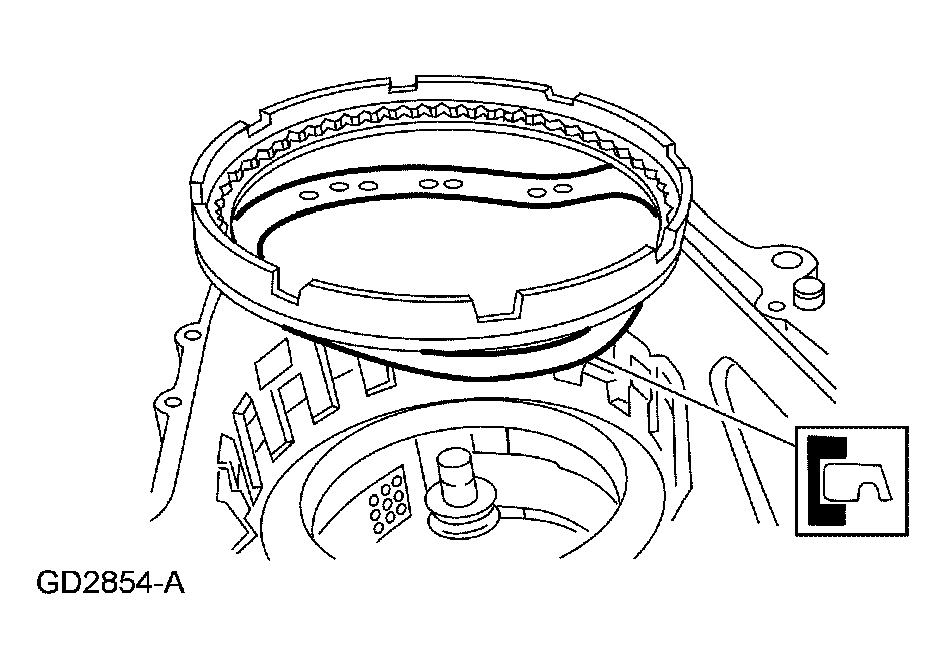

    Fig 1: Removing Low/Reverse Clutch Piston Outer Seal On Low/Reverse Clutch Piston
    G03901056Courtesy of FORD MOTOR CO.
  2. Remove and discard the low/reverse clutch piston inner seal on the low/reverse clutch piston.
    Fig 2: Removing Low/Reverse Clutch Piston Inner Seal On Low/Reverse Clutch Piston
    G03901057Courtesy of FORD MOTOR CO.
