Forward/Coast/Direct Clutch Cylinder and Reverse Clutch Drum - Disassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

NOTE: Support the assembly of the forward/coast/direct clutch cylinder assembly and reverse clutch drum assembly on a block of wood so that the reverse clutch hub faces upward. This will ease the reverse clutch hub retaining ring removal.

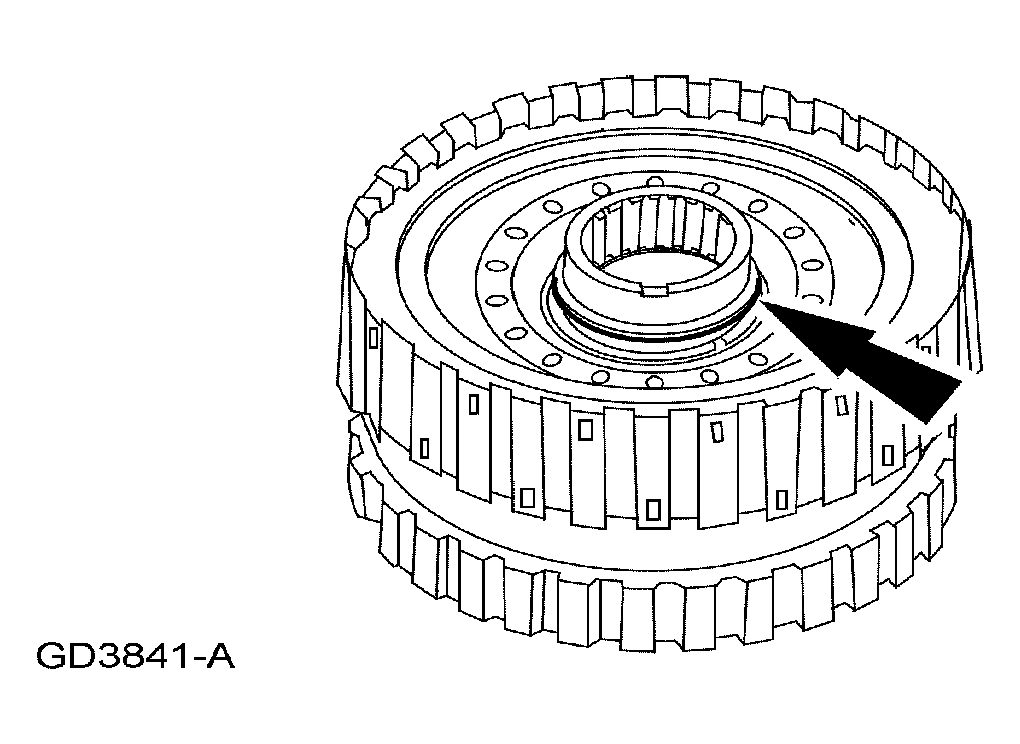

Fig 1: Removing Reverse Clutch Hub Retaining Ring

Courtesy of FORD MOTOR CO.

Remove the reverse clutch hub retaining ring.
Remove the reverse clutch hub.

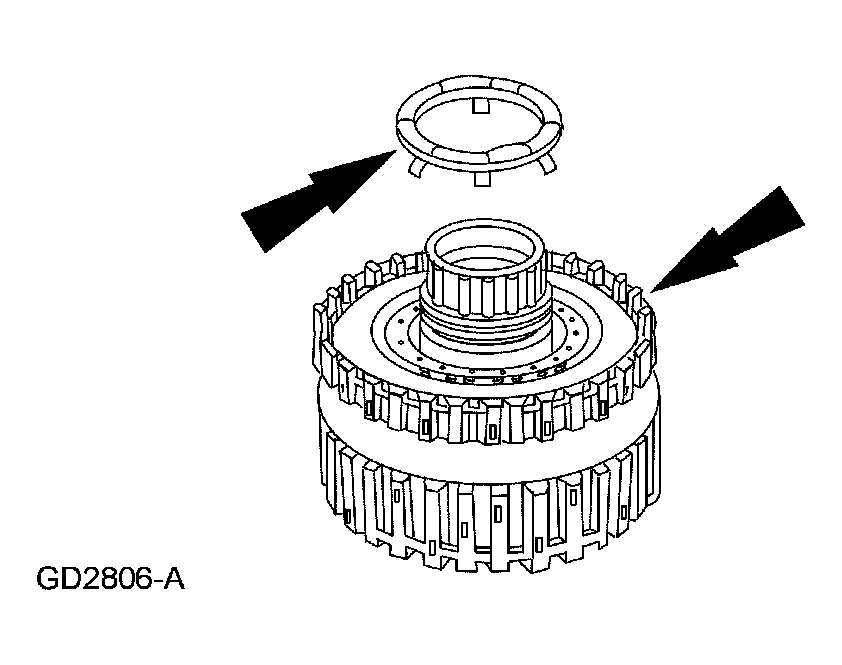

Fig 2: Removing Reverse Clutch Hub
Courtesy of FORD MOTOR CO.
Remove the reverse clutch drum assembly.

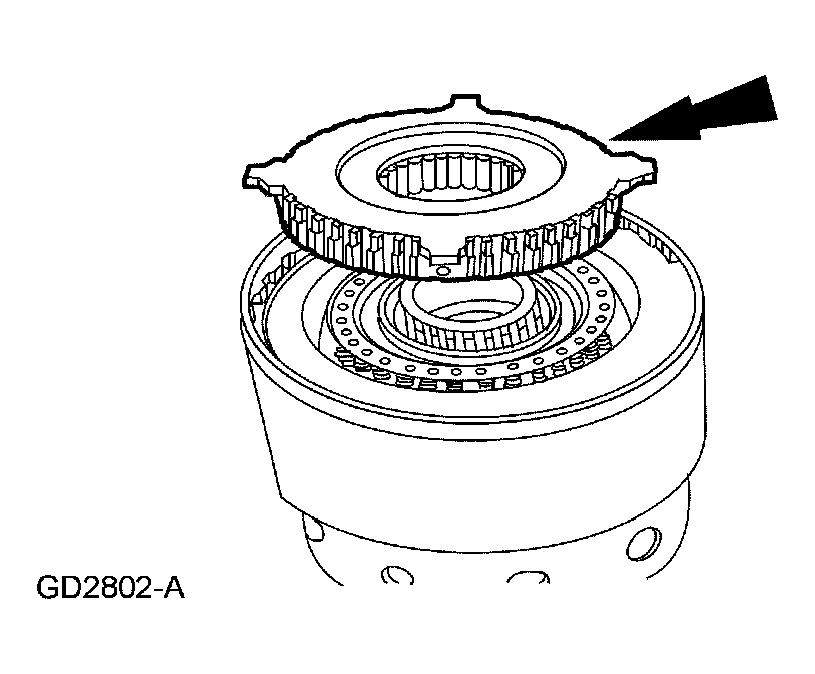

Fig 3: Removing Reverse Clutch Drum Assembly
Courtesy of FORD MOTOR CO.
Remove the direct clutch hub and shell from the forward/coast/direct clutch cylinder.

Fig 4: Removing Direct Clutch Hub And Shell From Forward/Coast/Direct Clutch Cylinder
Courtesy of FORD MOTOR CO.
Remove and discard the 2 reverse clutch cylinder seals from the forward/coast/direct clutch cylinder assembly.

Fig 5: Removing Reverse Clutch Cylinder Seals From Forward/Coast/Direct Clutch Cylinder Assembly
Courtesy of FORD MOTOR CO.

NOTE: Observe the tab orientation of the No. 2 direct clutch thrust washer during disassembly for correct installation.

Fig 6: Removing No 2 Direct Clutch Thrust Washer From Forward/Coast/Direct Clutch Cylinder

Courtesy of FORD MOTOR CO.

Remove the No. 2 direct clutch thrust washer from the forward/coast/direct clutch cylinder.
Remove and discard the forward/coast/direct clutch cylinder hub seal ring.

Fig 7: Removing Forward/Coast/Direct Clutch Cylinder Hub Seal Ring
Courtesy of FORD MOTOR CO.
