Final Drive Carrier and Differential Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.

Install the differential side gears and thrust washers.

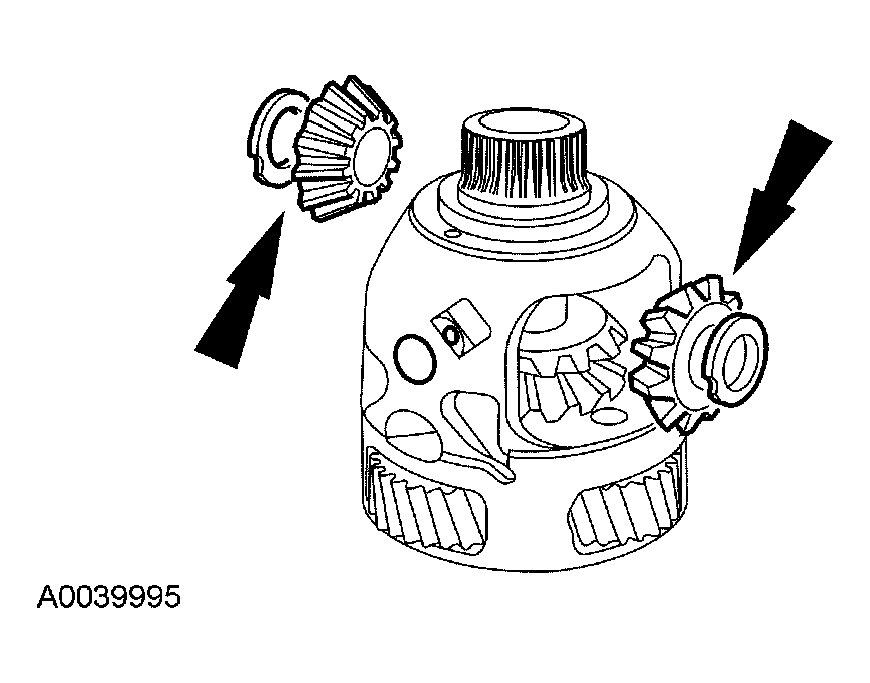

Fig 1: Installing Differential Side Gears And Thrust Washers
Courtesy of FORD MOTOR CO.
Install the differential pinion gears and thrust washers.
- Rotate the differential pinion gears 90 degrees.

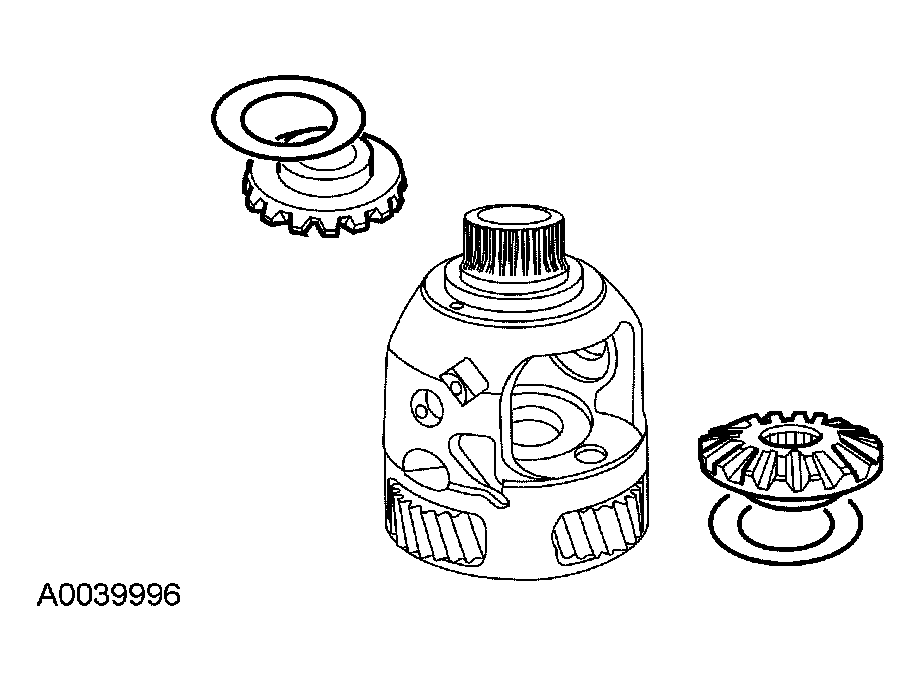

  Fig 2: Installing Differential Pinion Gears And Thrust Washers
  Courtesy of FORD MOTOR CO.
Install the differential pinion shaft.
1. Push the pinion shaft in place.
2. Install the roll pin.

  Fig 3: Installing Differential Pinion Shaft
  Courtesy of FORD MOTOR CO.
