Transaxle Connector Layouts

WARNING: This page is about a different variant/trim than selected.
NOTE: This vehicle is equipped with a new style powertrain control module. This is a 50-pin control module with 3 separate connectors. One connector for the chassis (C), one for the transaxle (T) and one for the body (B). The pin numbers listed throughout these pinpoint tests will have the letter C and T to designate the connector.

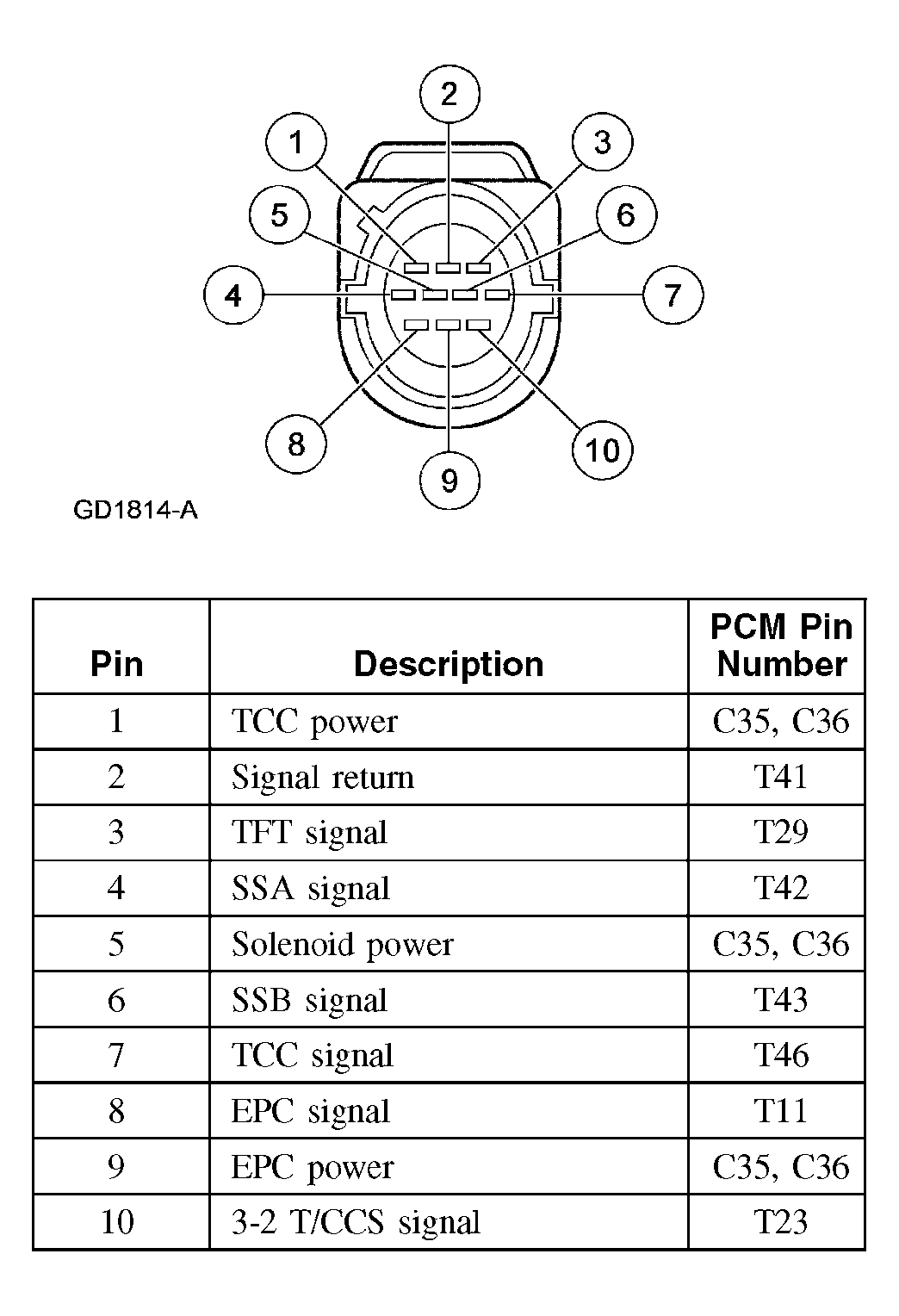

Fig 1: Identifying Transaxle Vehicle Harness Connector
G03900540Courtesy of FORD MOTOR CO.
Fig 2: Identifying Output Shaft Speed (OSS) Sensor Connector
G03900541Courtesy of FORD MOTOR CO.
Fig 3: Identifying Turbine Shaft Speed (TSS) Sensor Connector
G03900542Courtesy of FORD MOTOR CO.

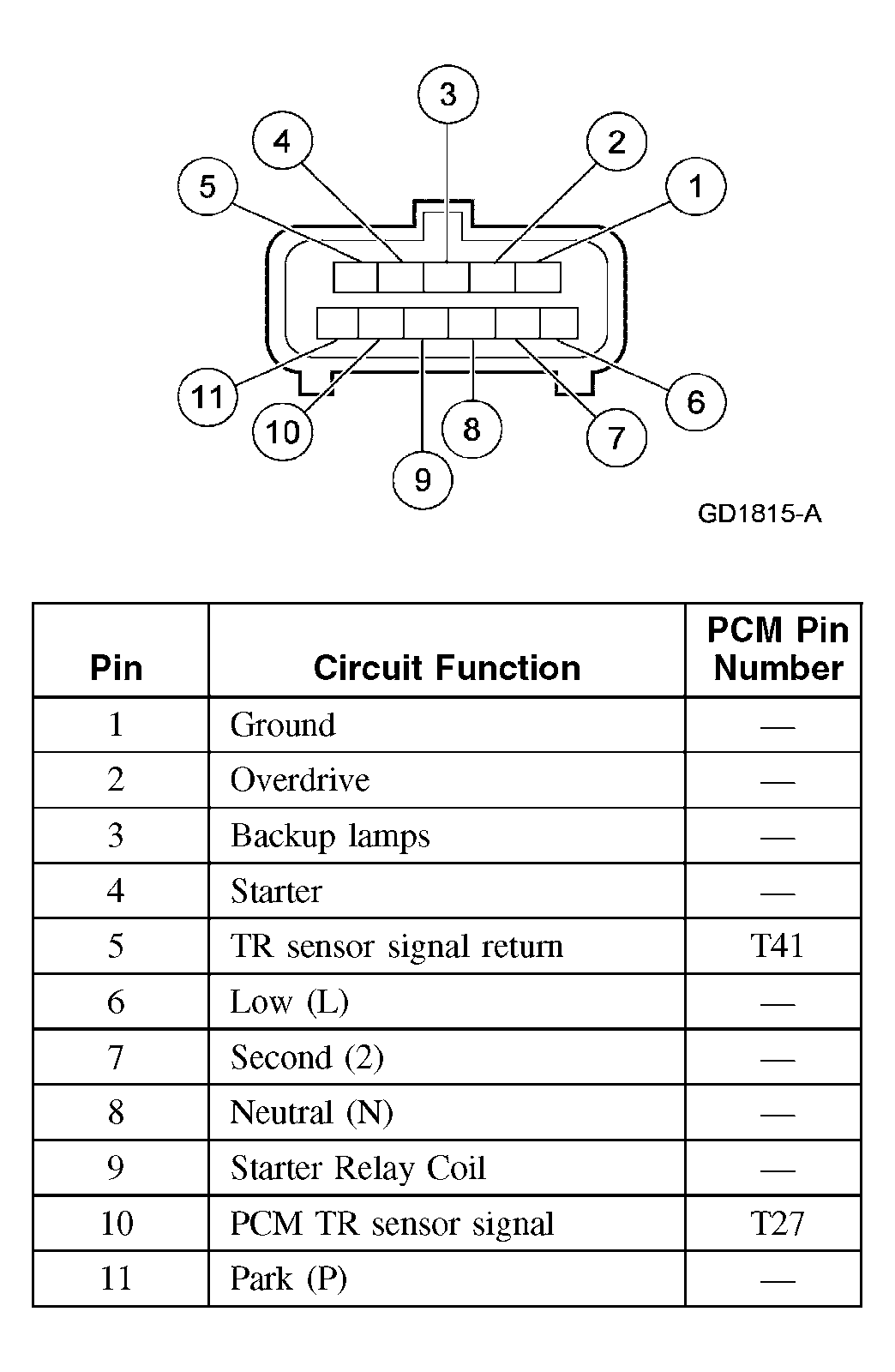

Fig 4: Identifying Transmission (TR) Sensor Connector
G03900543Courtesy of FORD MOTOR CO.

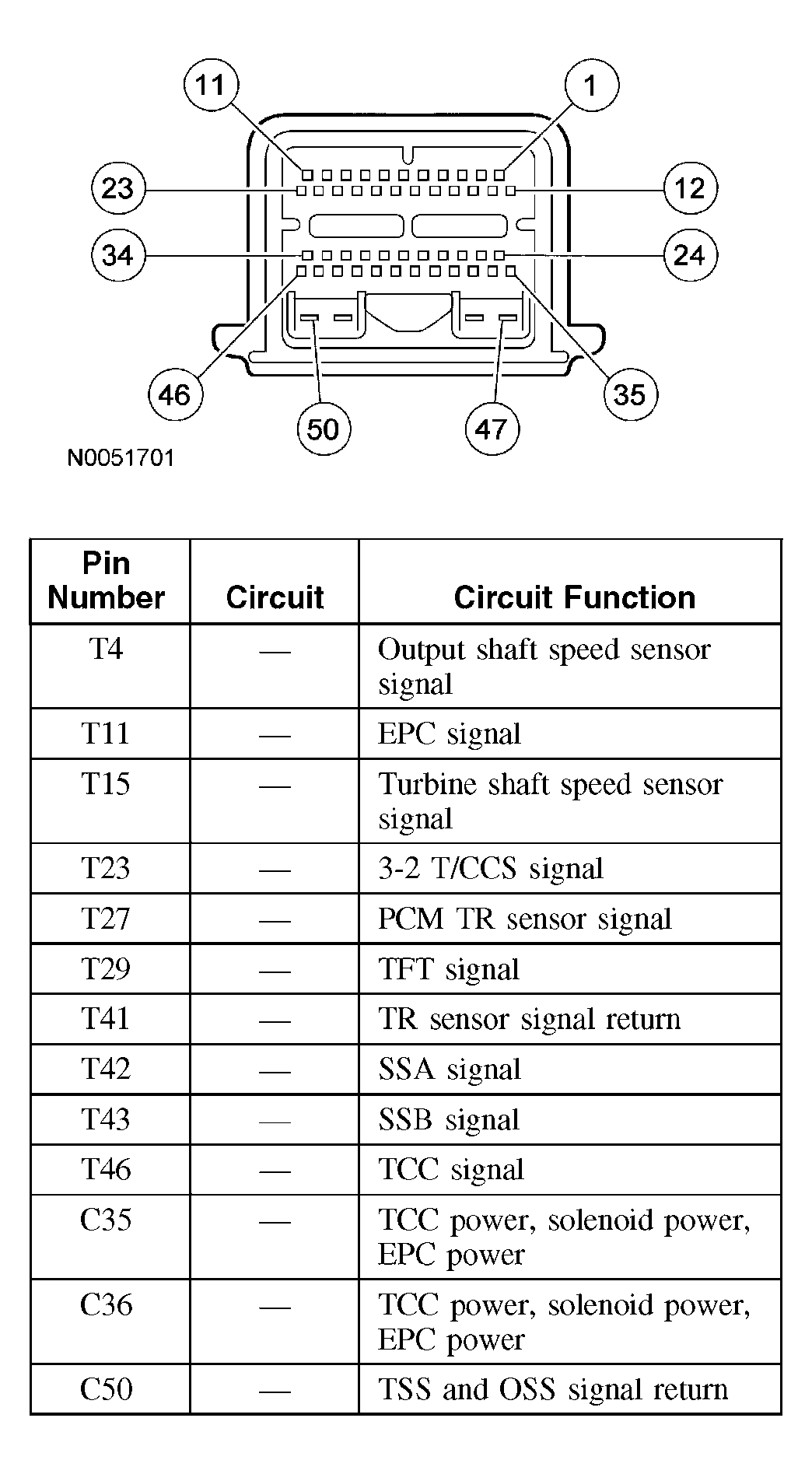

Fig 5: Identifying Powertrain Control Module (PCM) Connector
G03900544Courtesy of FORD MOTOR CO.
