Test Procedures

Carry out the following procedures:

1. Drain the transaxle. Remove main control cover.
2. Remove the main control as an assembly with the solenoid body assembly.
3. The inoperative clutches can be located by applying air pressure into the appropriate clutch port. Refer to AIR PRESSURE TEST  Port Locations diagram.
4. Install the transmission test plate using 6 bolts.
   • Tighten to 12 Nm (9 lb-ft).
CAUTION: The coast clutch circuit should not be applied unless air pressure is maintained in the forward clutch circuit. Failure to do so can result in the coast clutch piston coming out of the forward clutch piston.
NOTE: Refer to the BAND AND CLUTCH APPLICATION CHARTS A  and BAND AND CLUTCH APPLICATION CHART B .

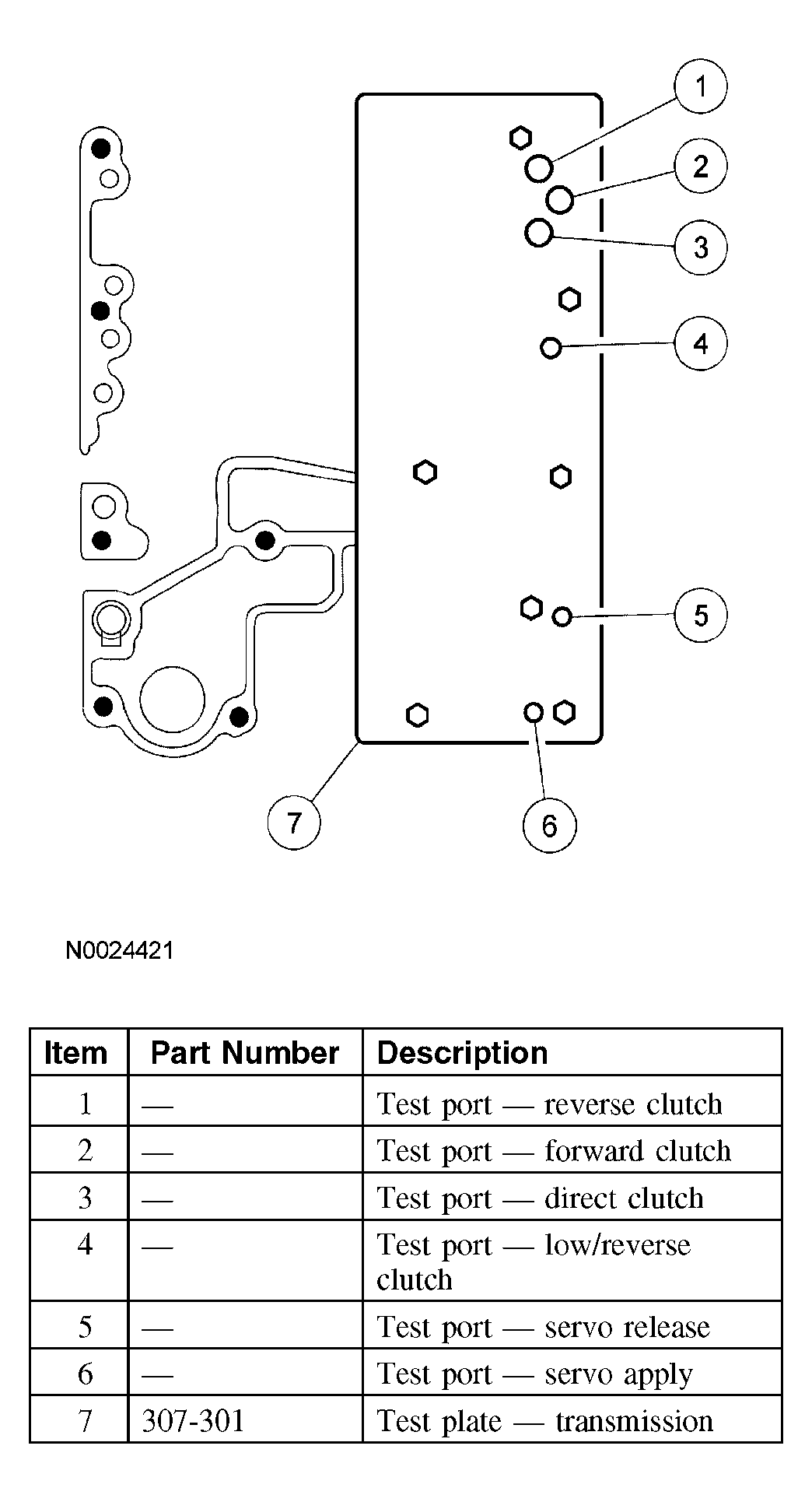

Fig 1: Identifying Air Pressure Test Ports Location
Courtesy of FORD MOTOR CO.
5. Apply air pressure 275 kPa (40 psi) to the appropriate clutch port (refer to AIR PRESSURE TEST PORT  Locations diagram). A dull thud may be heard, or movement felt when the clutch piston is applied. If clutch seals or check balls are leaking, a hissing may be heard.
