Pinpoint Test C: Torque Converter Clutch (TCC) Solenoid

WARNING: This page is about a different variant/trim than selected.
NOTE: Refer to Figure preceding these pinpoint tests.
  1. C1 ELECTRONIC DIAGNOSTICS
    • Key in OFF position.
    • Make sure the transaxle vehicle harness connector is fully seated, terminals are fully engaged in connector and in good condition before proceeding.
    • Connect the scan tool.
    • Key in ON position.
    • Carry out KOEO Test until continuous DTCs have been displayed.
    • Select Output State Test Mode (OTM).
    • Select the mode ALL ON. Push START to turn outputs on. Push STOP to turn outputs off.
    • Does vehicle enter OTM?
    1. Yes  : REMAIN in OTM. GO to C2.
    2. No  : PRESS START. If vehicle does not enter OTM, refer to INTRODUCTION - GASOLINE article for Escape (gasoline) and Mariner or INTRODUCTION- HYBRID ESCAPE article for Escape (Hybrid).
  2. C2 CHECK ELECTRICAL SIGNAL OPERATION
    CAUTION: Do not pry on the connector. This will damage the connector and can result in a transaxle concern. Press button and pull up on the transaxle vehicle harness connector.
    • Key in OFF position.
    • Disconnect: Transaxle Connector.
    • Use a mirror to inspect both ends of the connector for damaged or pushed-out pins, corrosion, loose wires and missing or damaged seals.
    • Key in ON position.
    • Measure the voltage between pin 1 and pin 7 of the transaxle vehicle harness connector.
      Fig 1: Measuring Voltage Of Transaxle Vehicle Harness Connector
      G03900566Courtesy of FORD MOTOR CO.
    • While observing the VOM, press STAR and STOP to cycle solenoid output on and off.
    • Does the suspected solenoid output voltage change at least 0.5 volt?
    1. Yes  : GO to  C5.
    2. No  : GO to C3.
  3. C3 CHECK CONTINUITY OF SOLENOID SIGNAL AND VPWR HARNESS CIRCUITS
    • Key in OFF position.
    • Disconnect: PCM.
    • Disconnect: Transaxle Connector.
    • Measure the resistance between the PCM pin T46 and the transaxle harness connector pin 7.

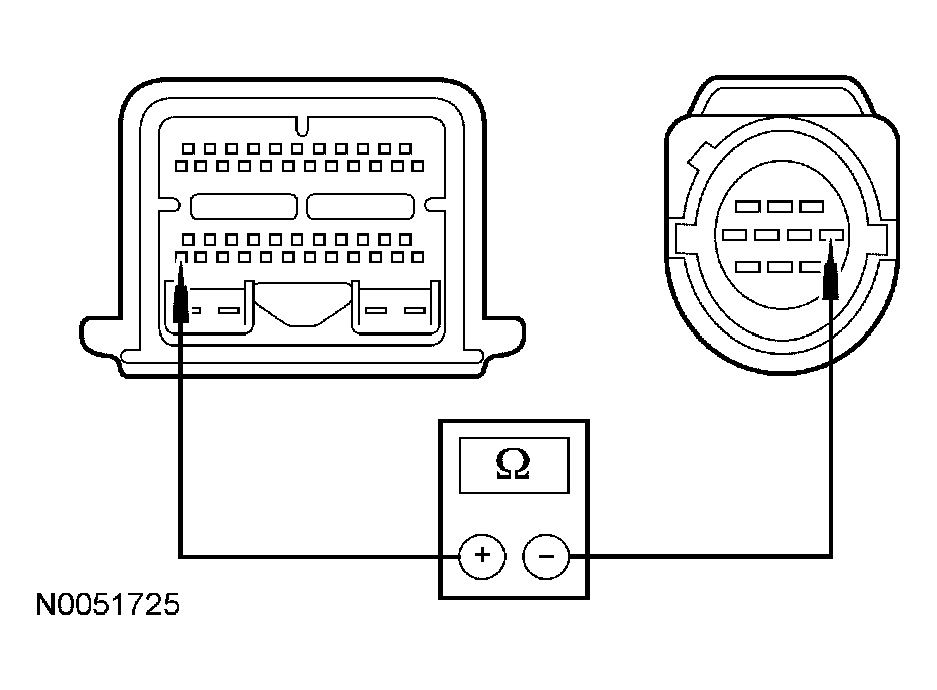

      Fig 2: Measuring Resistance Between PCM And Transaxle Harness
      G03900567Courtesy of FORD MOTOR CO.
    • Measure the resistance between the PCM pin C35 and C36 and the transaxle harness connector pin 1.

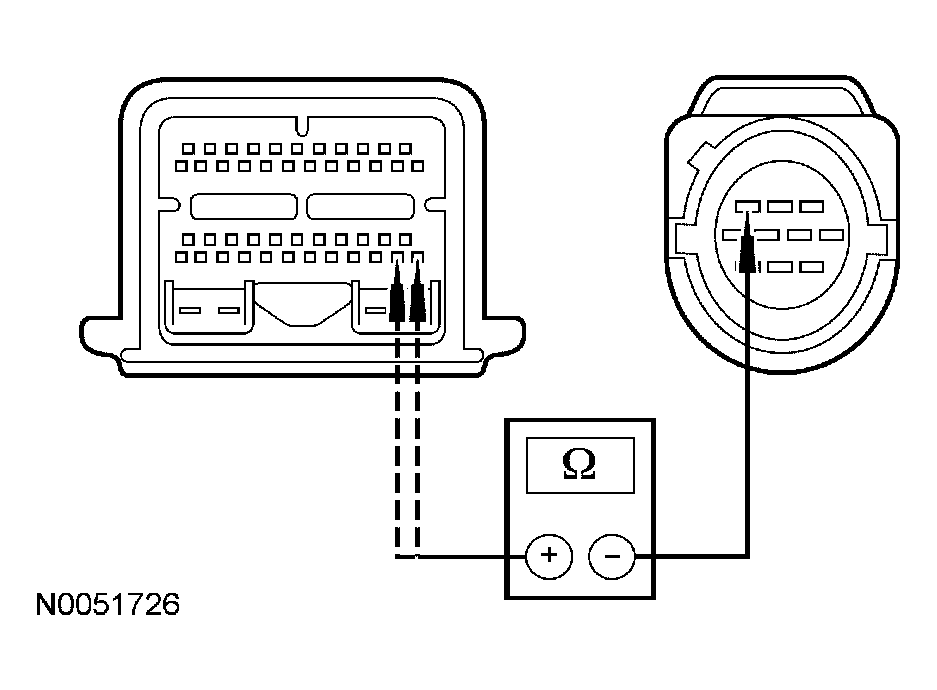

      Fig 3: Measuring Resistance Between PCM And Transaxle Harness
      G03900568Courtesy of FORD MOTOR CO.
    • Is each resistance less than 5 ohms?
    1. Yes  : GO to C4.
    2. No  : REPAIR open circuit(s). RECONNECT all components. RERUN Quick Test.
  4. C4 CHECK SOLENOID/HARNESS FOR SHORTS TO POWER AND GROUND
    • Disconnect: PCM.
    • Disconnect: Transaxle Connector.
    • Measure the resistance between the PCM pin T46 and the PCM pins C35 and C36.

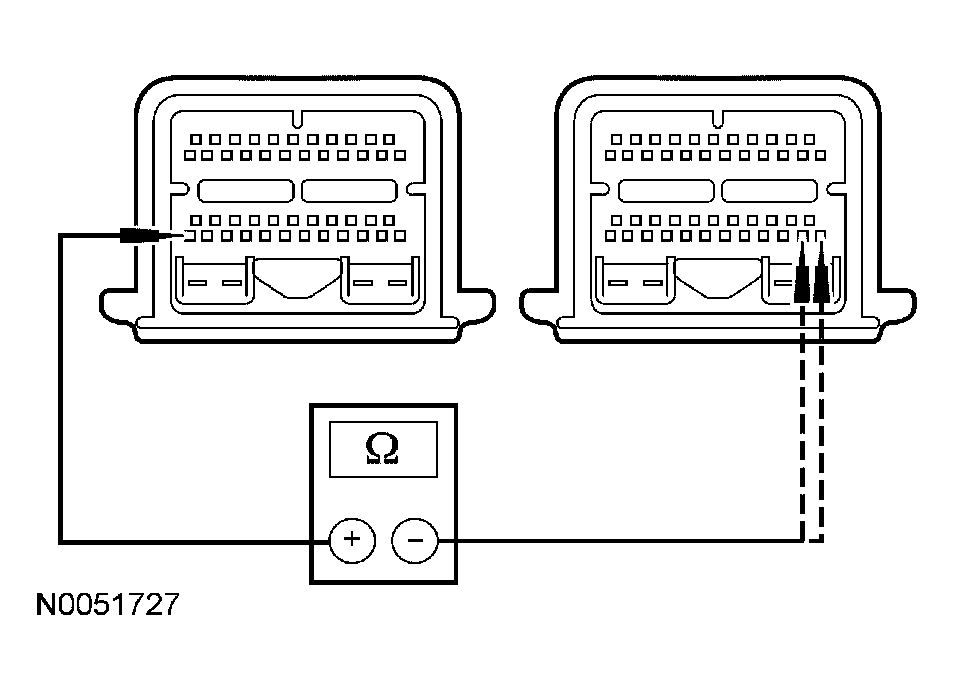

      Fig 4: Measuring Resistance Of PCM
      G03900569Courtesy of FORD MOTOR CO.
    • Measure the resistance between the PCM pin T46 and the PCM pins C47, C48 and C49 and chassis ground.

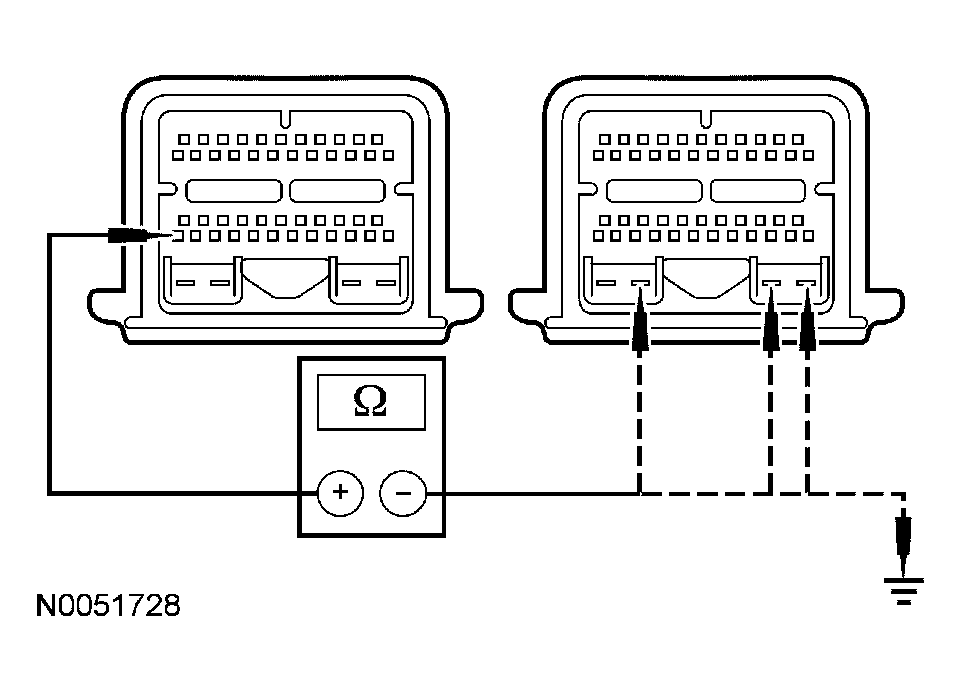

      Fig 5: Measuring Resistance Between PCM And Chassis Ground
      G03900570Courtesy of FORD MOTOR CO.
    • Measure the resistance between the PCM pin T46 and the PCM pin T4 and chassis ground.

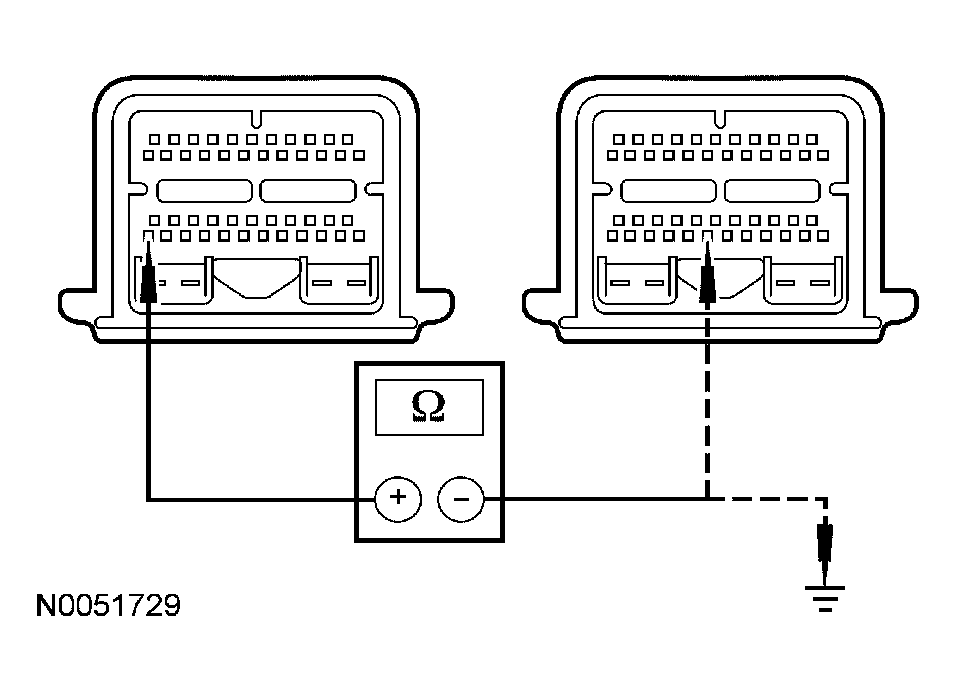

      Fig 6: Measuring Resistance Between PCM And Chassis Ground
      G03900571Courtesy of FORD MOTOR CO.
    • Is each resistance less than 10,000 ohms?
    1. Yes  : GO to C5.
    2. No  : REPAIR short circuit(s). RECONNECT all components. RERUN Quick Test.
  5. C5 TRANSAXLE FUNCTIONAL TEST
    CAUTION: Do not pry on the connector. This will damage the connector and can result in a transaxle concern. Press button and pull up on the transaxle vehicle harness connector.
    NOTE: LED will turn GREEN when solenoid activates and turns OFF when deactivated. LED will turn RED if an activated solenoid/harness is shorted to B+. LED will remain OFF if an activated solenoid/harness is shorted to ground or no continuity (open circuit).
    • Disconnect: Transaxle Connector.
    • Connect: Transmission Tester.

      Carry out the TCC Solenoid Function Test as outlined in the Transmission Tester Manual.

    • Does TCC (LED green) activate when tester switch is pressed?
    1. Yes  : GO to C6.
    2. No  : GO to  C7.
  6. C6 TRANSAXLE DRIVE CYCLE TEST
    • Connect: PCM.
    • Carry out Dynamic Testing as outlined in the Transmission Tester Manual.
    • Does TCC activate (LED green) and engine rpm drop?
    1. Yes  : INSTALL a new PCM. RECONNECT all components. RERUN On-Board Diagnostic tests. If symptoms are still present, REFER to DIAGNOSIS BY SYMPTOM .
    2. No  : GO to C7.
  7. C7 CHECK RESISTANCE OF SOLENOID/HARNESS
    • Set Bench/Drive switch to BENCH mode.
    • Rotate gear select switch to OHMS CHECK position.
    • Measure the resistance between TCC jack and VPWR jack on the Transmission Tester.

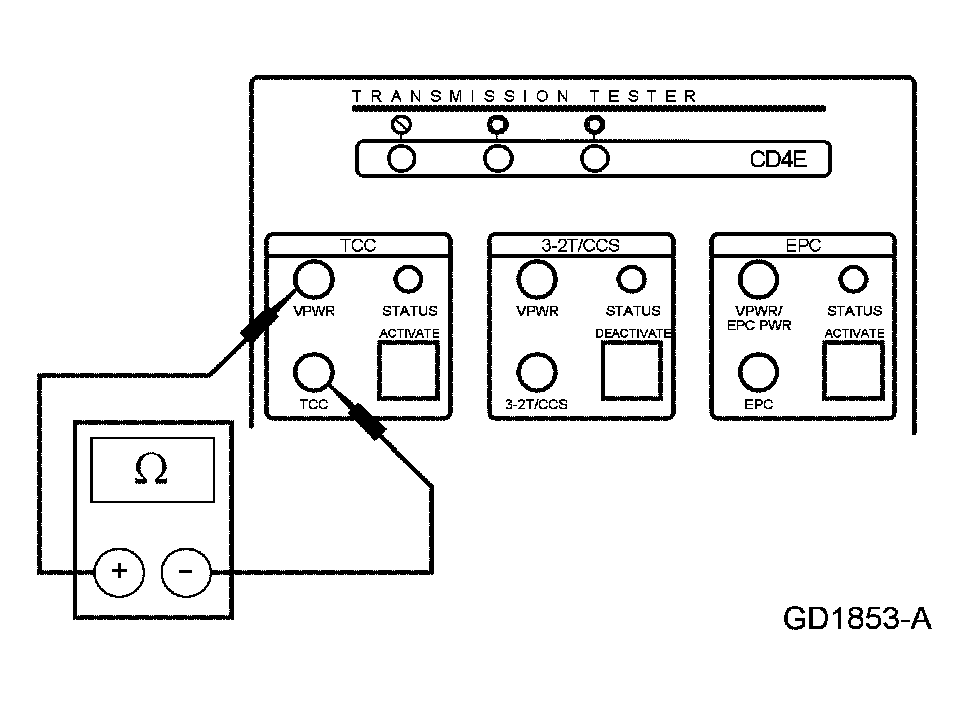

      Fig 7: Measuring Resistance Between TCC Jack And VPWR Jack On Transmission Tester
      G03900572Courtesy of FORD MOTOR CO.
    • Is the resistance between 12.5 and 19.0 ohms?
    1. Yes  : GO to C8.
    2. No  : INSTALL a new solenoid body assembly.
  8. C8 CHECK SOLENOID/HARNESS FOR SHORT TO GROUND
    • Measure the resistance between BAT - jack (engine ground) and TCC jack, and VPWR jack on Transmission Tester.
      Fig 8: Measuring Resistance Between BAT - Jack (Engine Ground) And TCC Jack, And VPWR Jack On Transmission Tester
      G03900573Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10,000 ohms?
    1. Yes  : INSTALL a new solenoid body assembly.
    2. No  : REFER to DIAGNOSIS BY SYMPTOM  to diagnose torque converter clutch.
