External Sealing

WARNING: This page is about a different variant/trim than selected.

This transaxle has the following parts to prevent external fluid leakages:

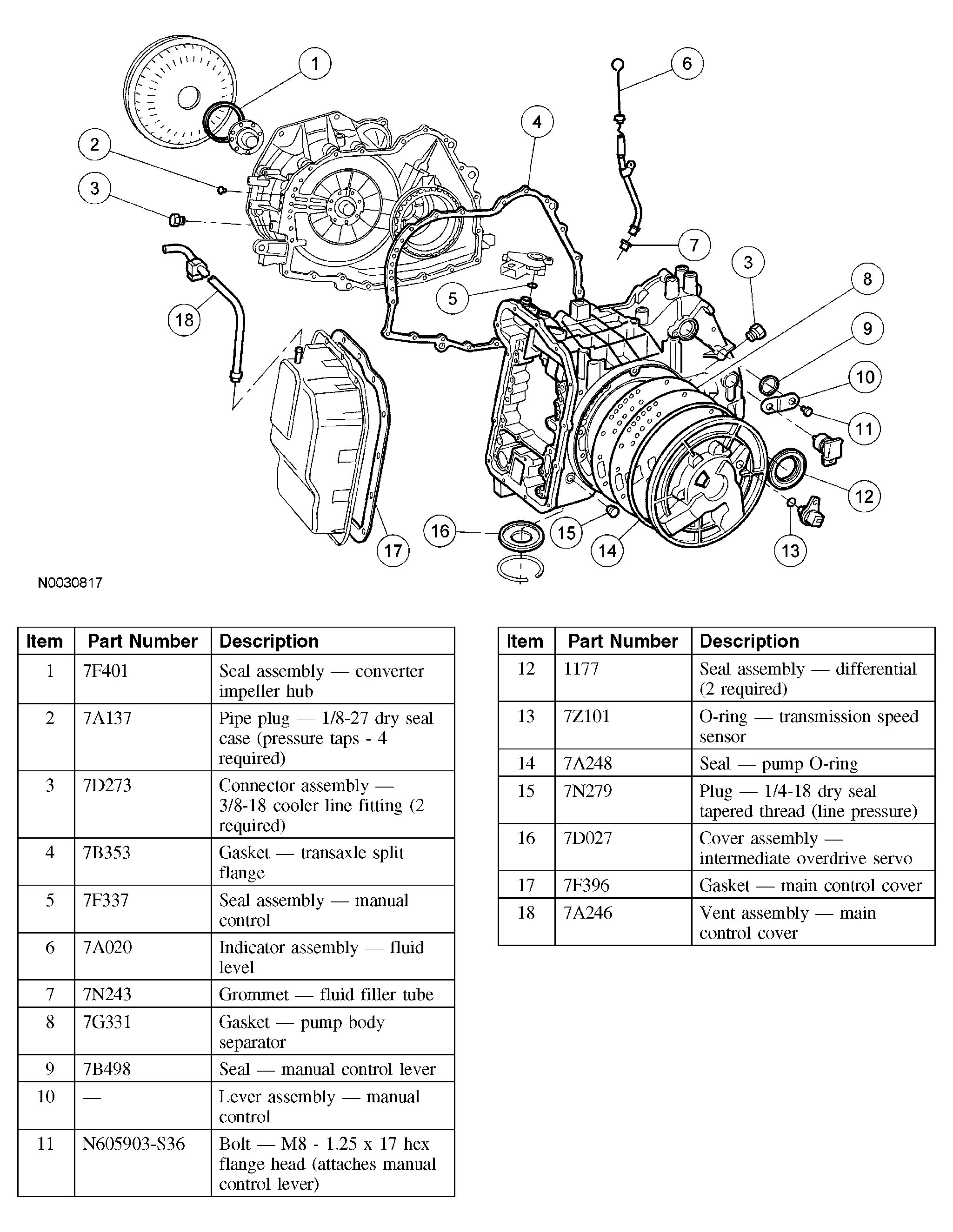

Fig 1: Identifying External Sealing Locations
G03900613Courtesy of FORD MOTOR CO.
