Turbine Shaft
WARNING: This page is about a different variant/trim than selected.

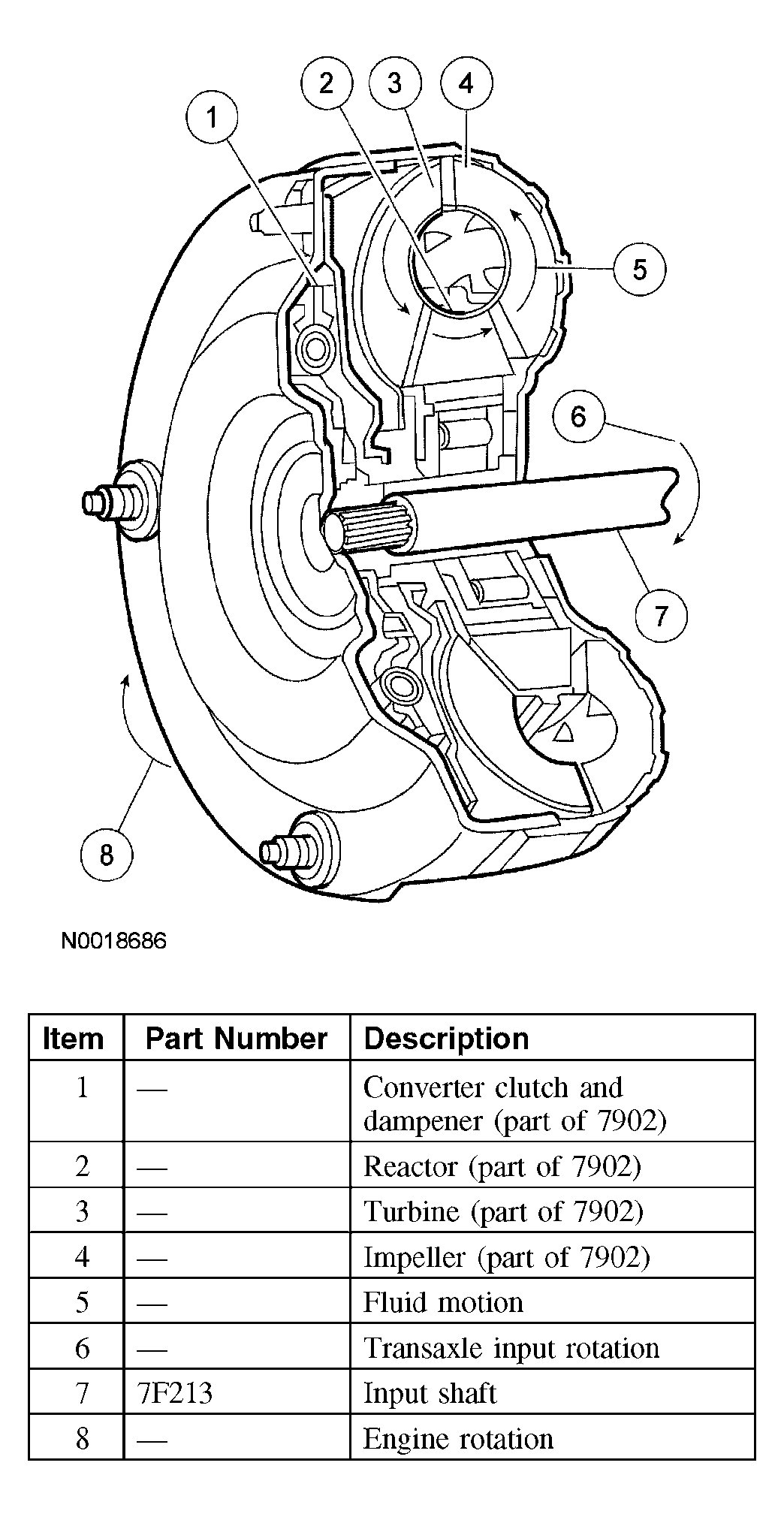

The turbine shaft connects the torque converter stator with the forward/coast/direct clutch cylinder. When applied, the forward/coast/direct clutch cylinder transmits input torque to the reverse/overdrive ring gear assembly, which also acts as the drive sprocket. This allows input torque to be transmitted from the torque converter to the drive chain and driven sprocket.
