Bushings, Bearing and Thrust Washer Locator

WARNING: This page is about a different variant/trim than selected.

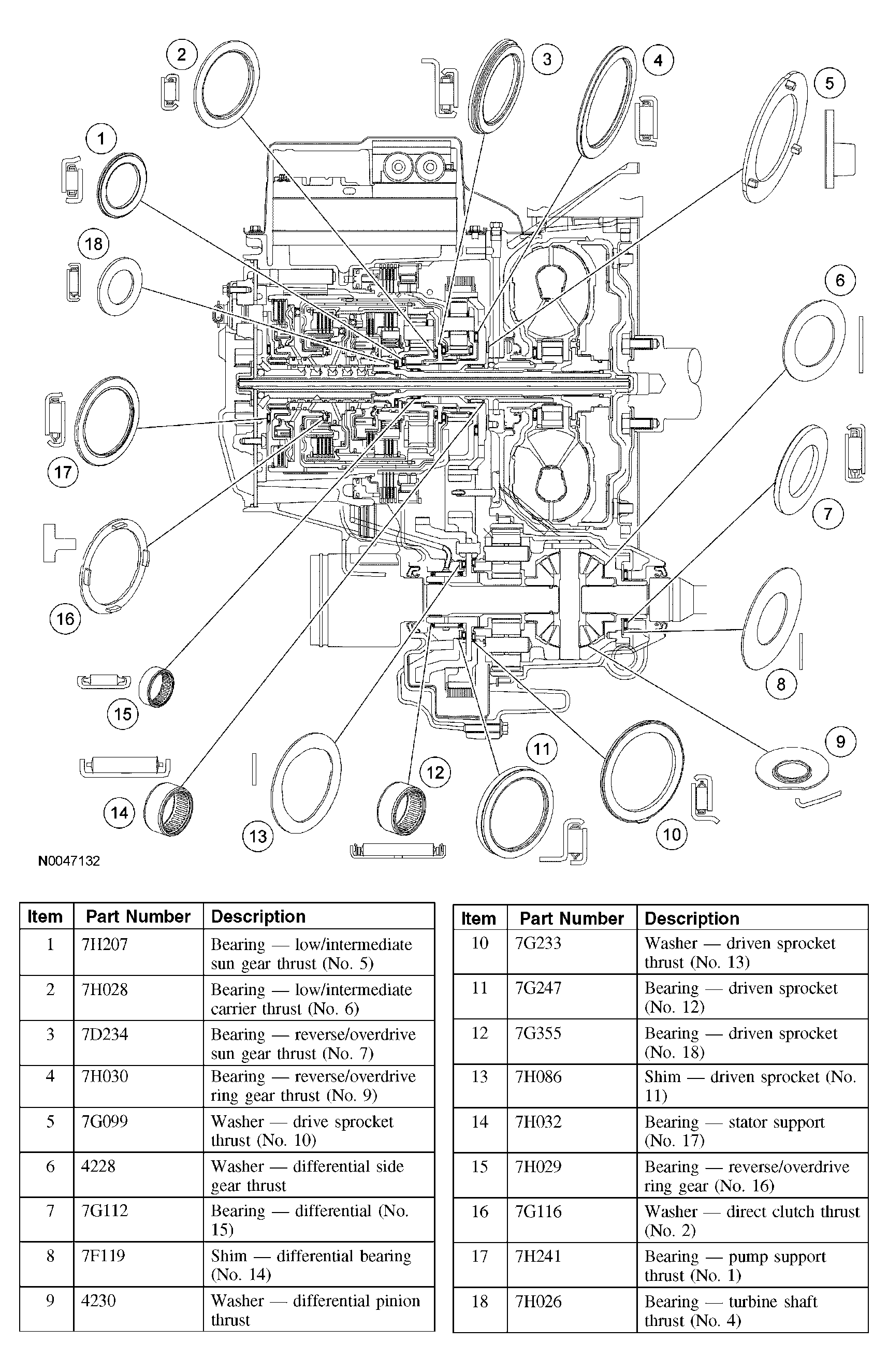

Fig 1: Identifying Bushings, Bearing And Thrust Washer Location
G03900525Courtesy of FORD MOTOR CO.
