Section 16 (Automatic Transmission - Cd4E): Assembly: Transaxle: Material

WARNING: This page is about a different variant/trim than selected.

MATERIAL SPECIFICATION CHART

Item	Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada)	MERCON®
Multi-Purpose Grease XG-4 and/or XL-5	ESB-M1C93-B

Automatic Transaxle - Disassembled Views

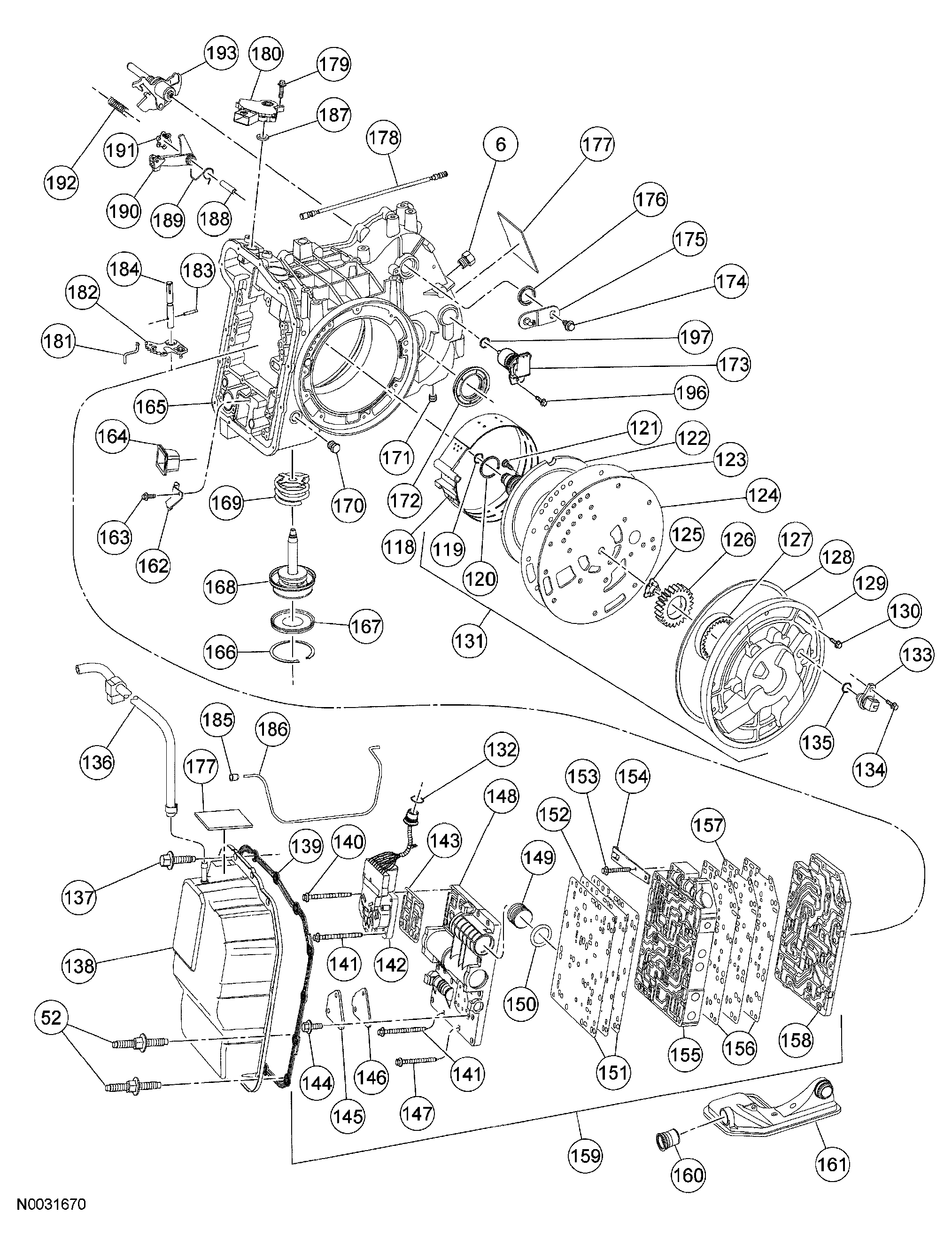

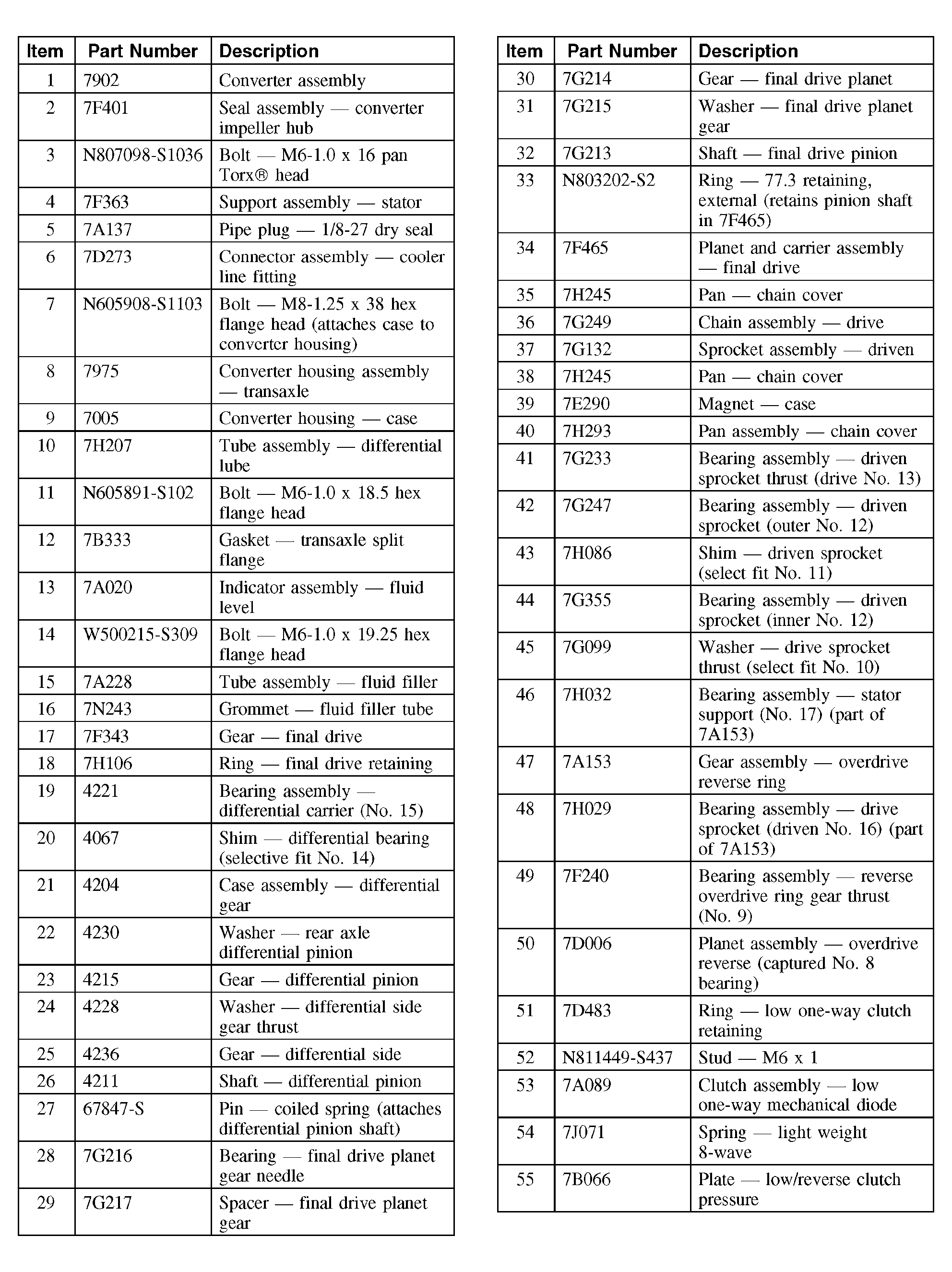

Fig 1: Disassembled Views - Automatic Transaxle (1 Of 7)

Courtesy of FORD MOTOR CO.

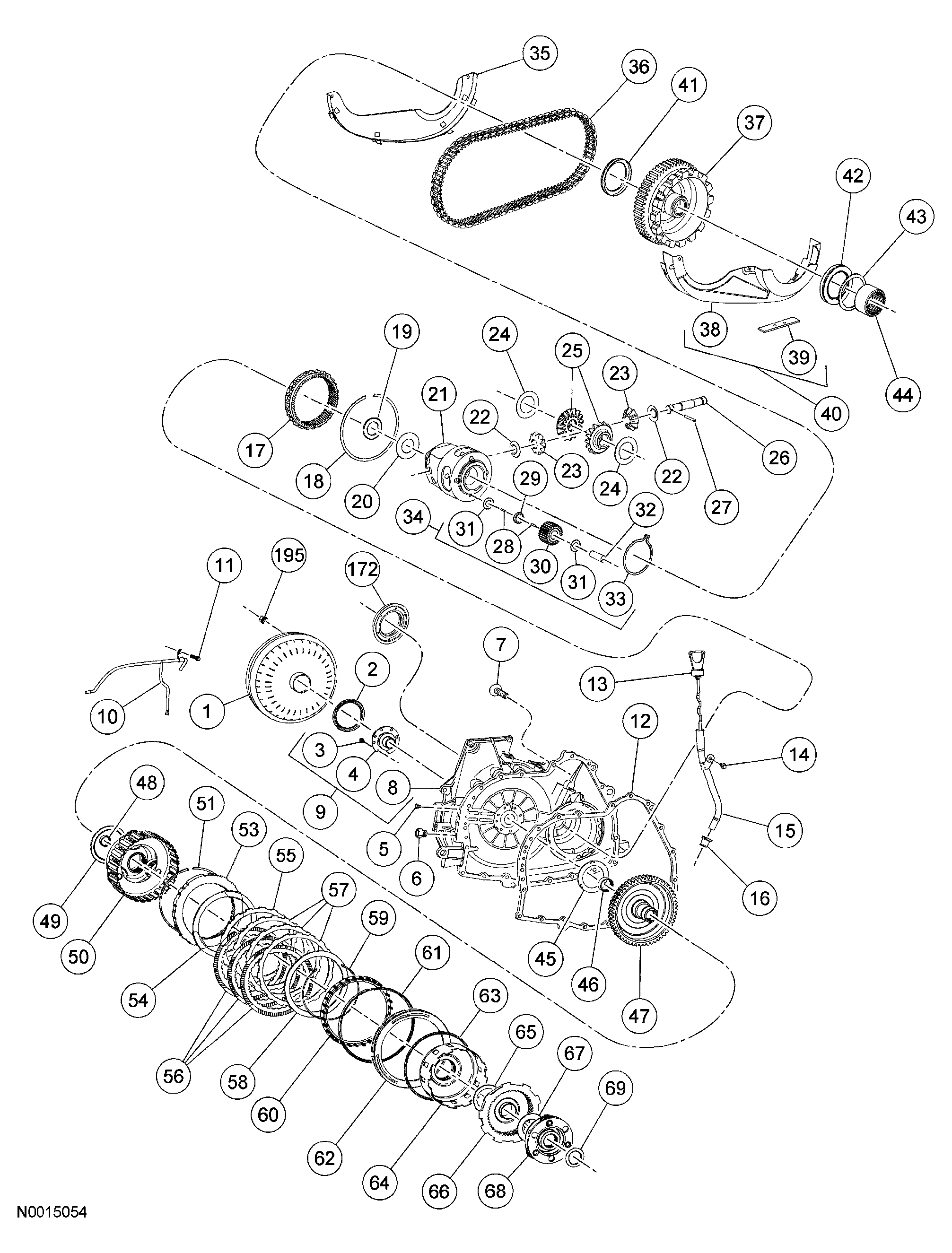

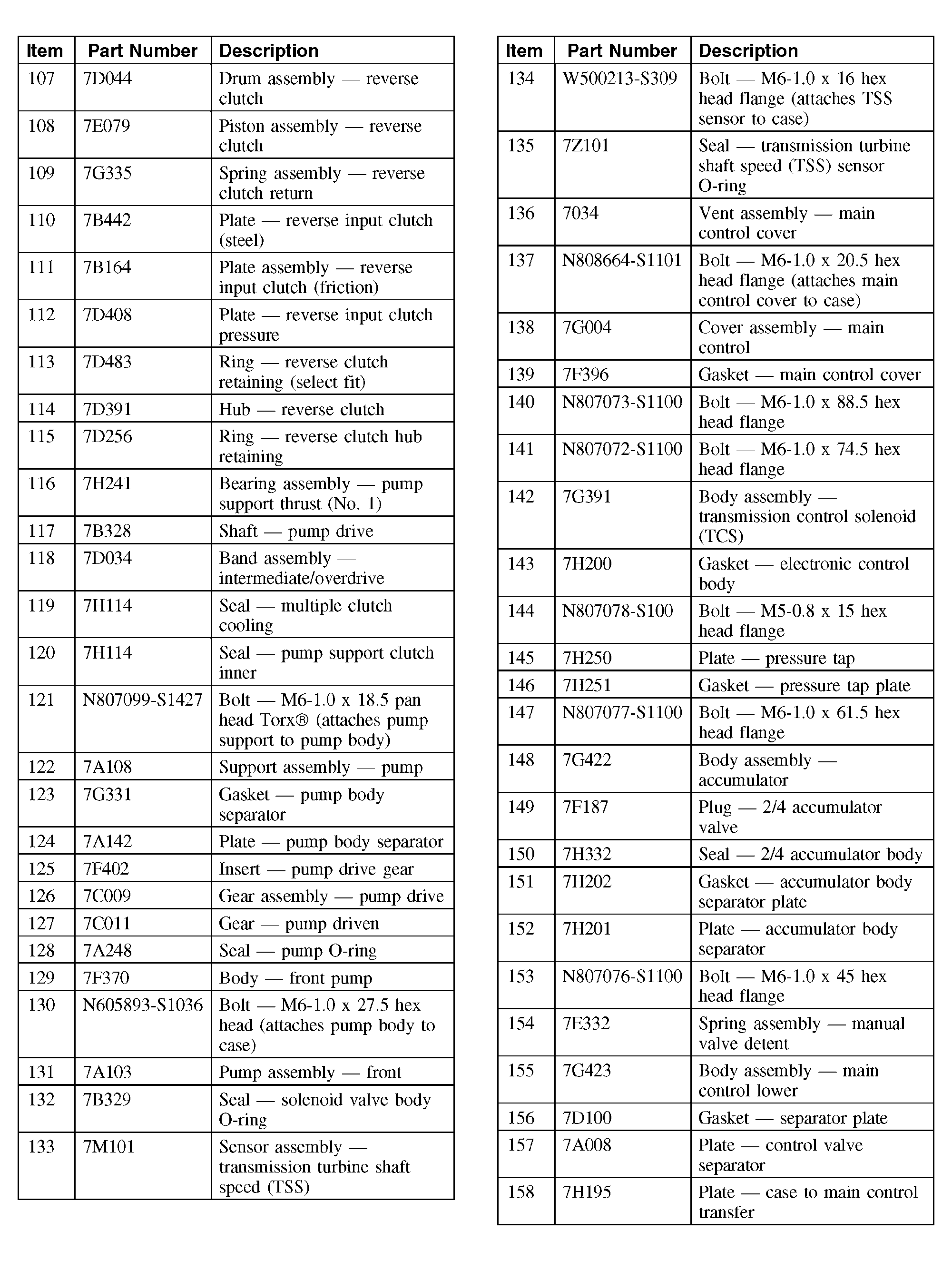

Fig 2: Disassembled Views - Automatic Transaxle (2 Of 7)

Courtesy of FORD MOTOR CO.

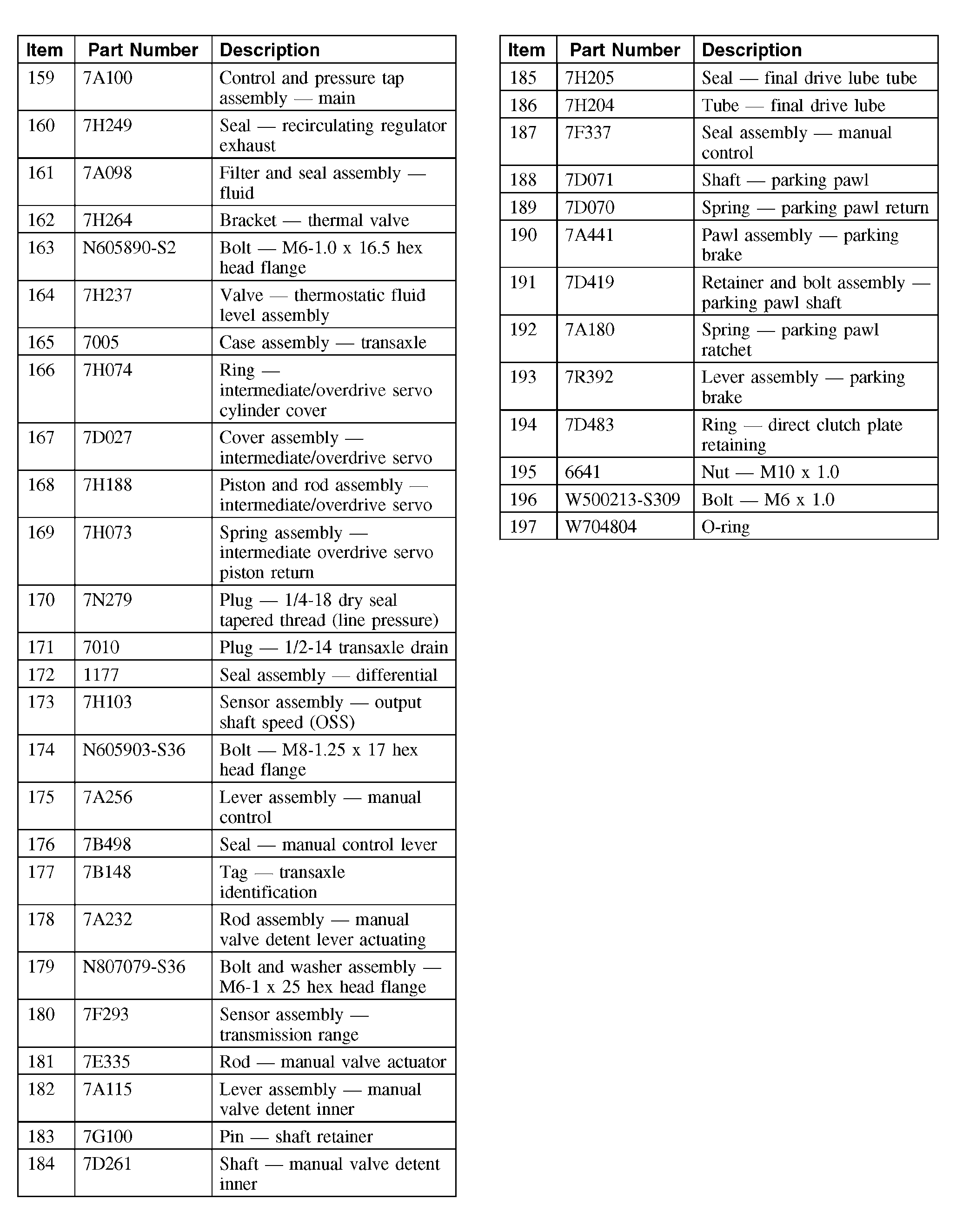

Fig 3: Disassembled Views - Automatic Transaxle (3 Of 7)

Courtesy of FORD MOTOR CO.

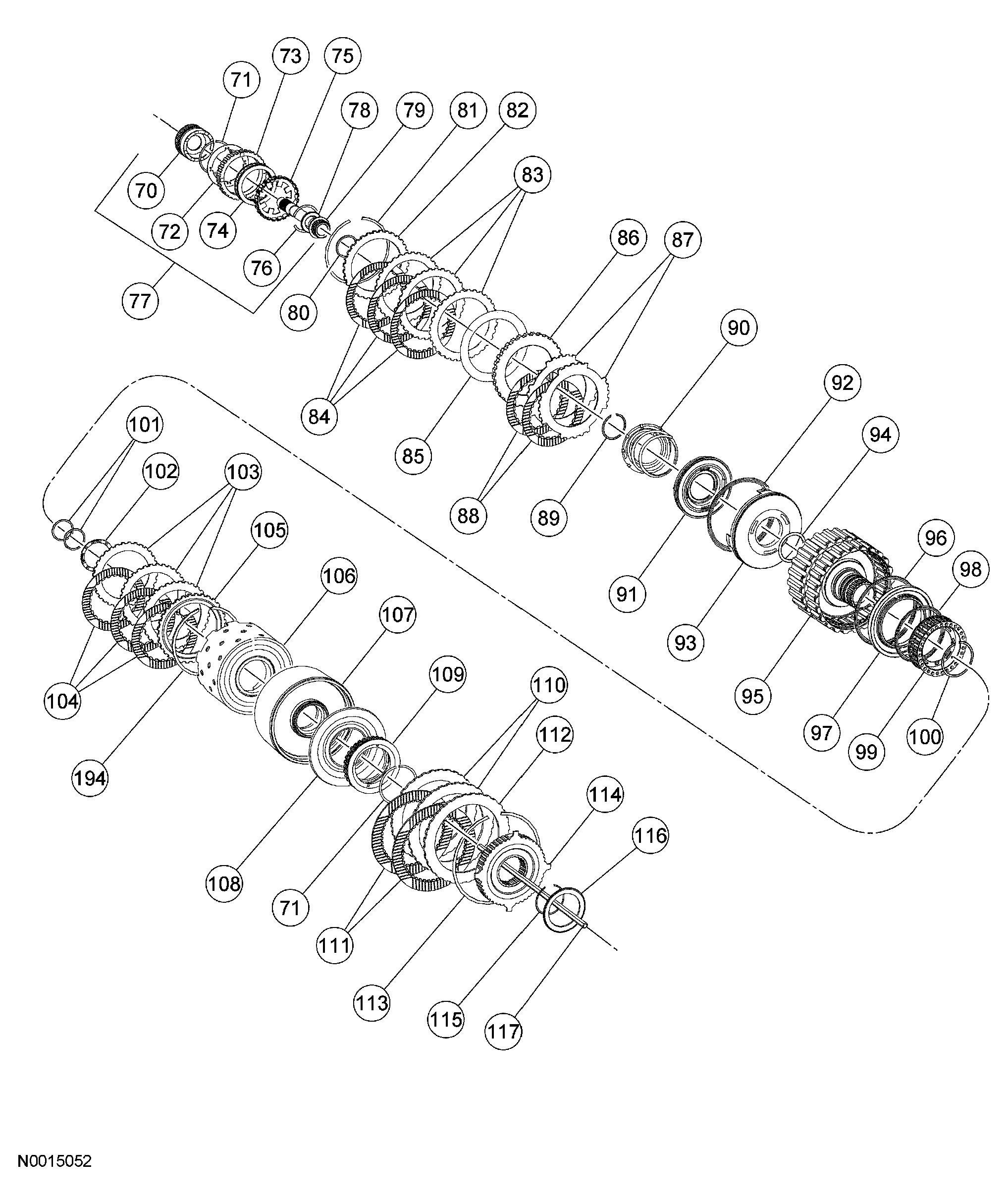

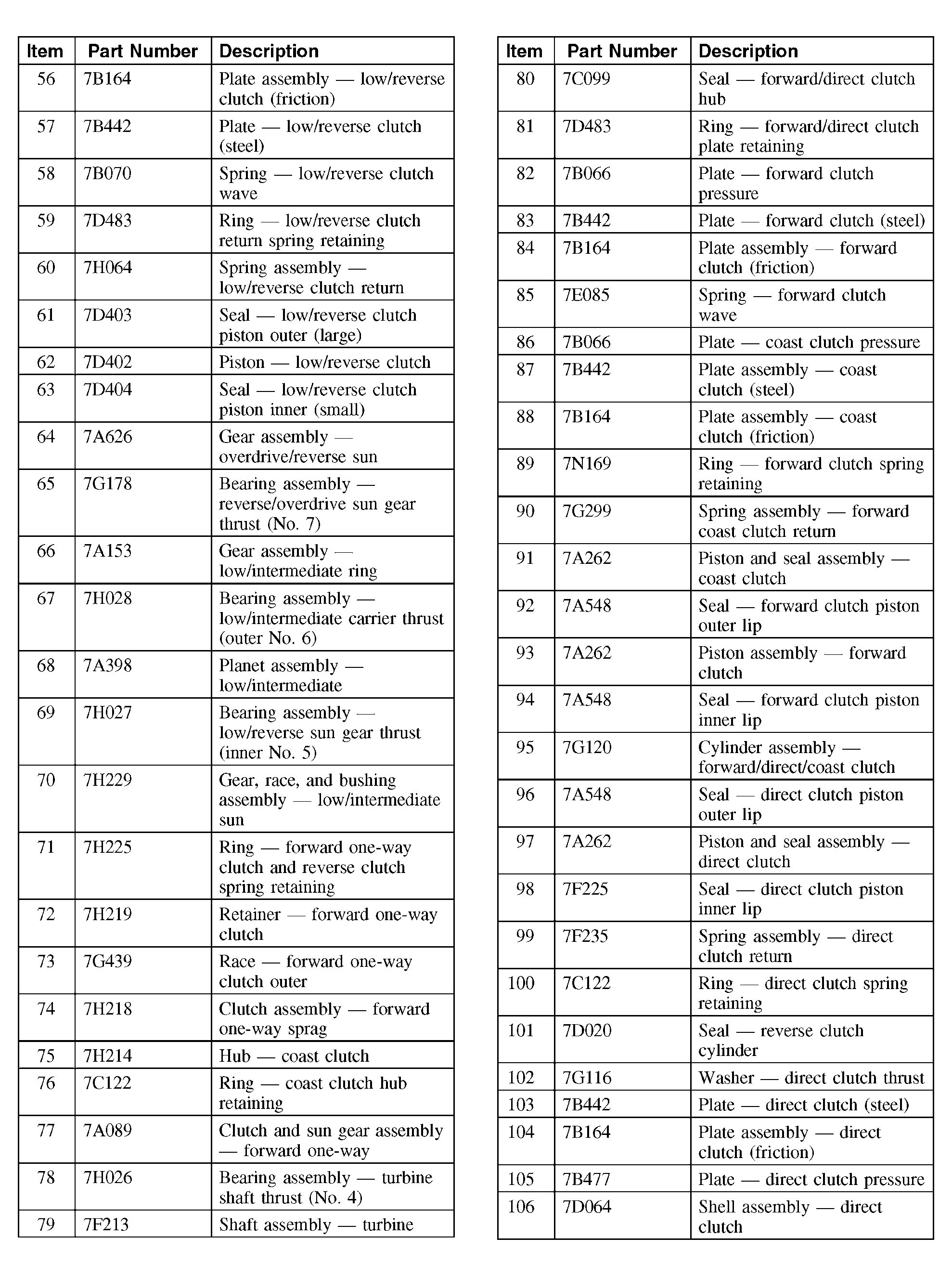

Fig 4: Disassembled Views - Automatic Transaxle (4 Of 7)

Courtesy of FORD MOTOR CO.

Fig 5: Disassembled Views - Automatic Transaxle (5 Of 7)

Courtesy of FORD MOTOR CO.

Fig 6: Disassembled Views - Automatic Transaxle (6 Of 7)

Courtesy of FORD MOTOR CO.

Fig 7: Disassembled Views - Automatic Transaxle (7 Of 7)

Courtesy of FORD MOTOR CO.
