Removal and Installation

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Remove the coolant pump belt. For additional information, refer to ACCESSORY DRIVE - 3.0L (4V) .
Remove the thermostat housing. For additional information, refer to THERMOSTAT HOUSING - 3.0L (4V) .
Disconnect the oil cooler coolant hose from the coolant pump.
Remove the 3 coolant pump assembly-to-engine bolts.
- To install, tighten to 10 Nm (89 lb-in).

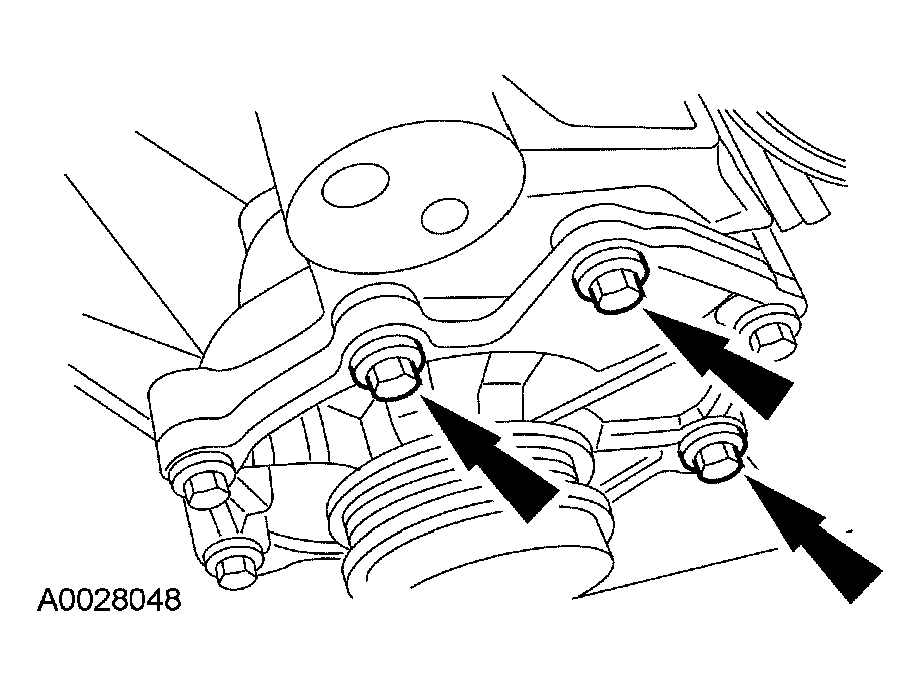

  Fig 1: Identifying Coolant Pump Assembly Bolts
  Courtesy of FORD MOTOR CO.
Reposition the coolant pump-to-engine hose clamp.
- Remove the coolant pump.
To install, reverse the removal procedure.
Fill and bleed the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
